Description

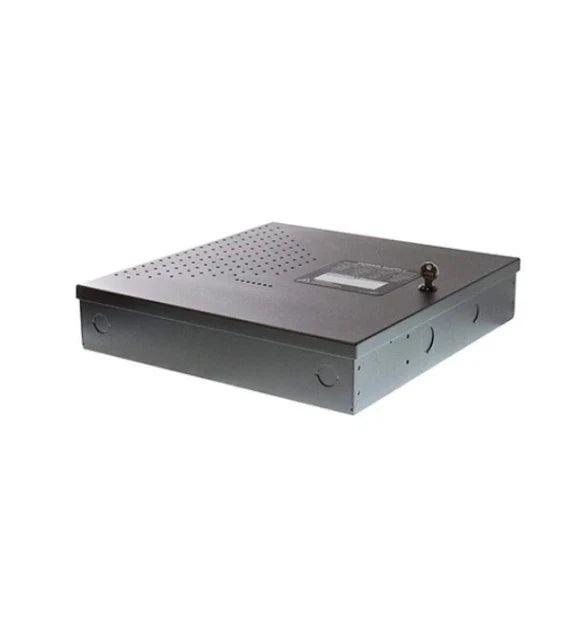

The Honeywell FCPS-24S8 is an 8-amp remote power supply from the Notifier FCPS-24S Series, designed to provide regulated 24V DC power and expanded notification circuit capacity. Ideal for fire protection systems, it includes a built-in battery charger and supports various NAC and auxiliary power configurations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Fire Alarm Power Supplies
|
| Part Number |
FCPS-24S8
|
| Subcategory |
NAC Expanders with Battery Charger |
| Output Power |
8 Amps at 24 VDC (regulated, filtered) |
| NAC Circuits |
4 Class B (Style Y) or 2 Class A (Style Z, with ZNAC-4 module) |
| Input Voltage Compatibility |
12V or 24V Fire Alarm Control Panels |
| Battery Charging Capacity |
Up to 18 AH |
| Enclosure Color |
Black |
| Mounting Type |
Wall-mounted |
| Wire Gauge Supported |
14 AWG |
| Listings & Approvals |
UL, ULC, CSFM, FM, MEA |
| Compatible FACPs |
NFS-320, NFS2-3030, NFS2-640 |
| Enclosure Dimensions |
2.75 × 14.50 × 15.00 in |
| Weight |
15.00 lbs
|
Information About FCPS-24S8
The FCPS-24S8 is a high-performance remote power supply designed to extend the capabilities of fire alarm control panels (FACPs), such as the NFS-320, NFS2-3030, and NFS2-640. With an 8-amp output and compatibility with both 12V and 24V FACPs, the FCPS-24S8 delivers filtered and regulated 24V DC power to four configurable notification appliance circuits (NACs). The outputs can be arranged as four Class B (Style Y), or two Class A (Style Z) using the ZNAC-4 option module. It also allows outputs to be designated as resettable or non-resettable based on system needs.
Key Features:
- 8-Amp Output Capacity: Supplies filtered and regulated 24 VDC power for multiple fire system devices and NACs.
- Flexible NAC Configuration: Four outputs configurable as 4 Class B (Style Y) or 2 Class A (Style Z) with ZNAC-4 module.
- Resettable/Non-resettable Options: Allows combinations of output types (e.g., 2 resettable and 2 non-resettable).
- Built-in Battery Charger: Supports charging for batteries up to 18 AH for reliable backup power.
- Universal FACP Compatibility: Works with any 12V or 24V fire alarm control panel; designed for integration with NFS-320, NFS2-3030, and NFS2-640.
- Synchronization and ADA Support: Expands NACs and synchronizes signal devices to meet safety compliance.
- Approved Listings: UL, ULC, CSFM, FM, and MEA certified for code-compliant installations.
- Sturdy Enclosure: Rugged metal housing in black finish, optimized for wall mounting in fire control environments.
The FCPS-24S8 delivers scalable and compliant power distribution for life safety and fire protection systems.
