Description
The Telguard TG-7FP is a universal commercial fire alarm communicator designed to provide secure cellular transmission over 5G LTE-M networks. Engineered for fire alarm applications, it supports multiple signaling formats and delivers reliable alarm communication when connected to compatible fire alarm control panels.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Telguard |
| Category |
Fire Alarm Communication |
| Part Number |
TG-7FP |
| Subcategory |
Cellular Fire Alarm Communicators |
| Product Series |
TG-7 Fire |
| Product Type |
Universal Alarm Communicator |
| Cellular Technology |
5G LTE-M |
| Connectivity |
Wireless Cellular |
| Input Voltage |
12 VDC / 24 VDC |
| Compatible Formats |
CID, SIA, Pulse (4x2, 3x1), Radionics (IIe/3a2/4), DMP |
| Standby Current |
18 mA @ 24 VDC, 40 mA @ 12 VDC |
| Transmit Current |
110 mA @ 24 VDC, 200 mA @ 12 VDC |
| Enclosure Type |
Compact Plastic Enclosure |
| Enclosure Color |
Red |
| Tamper Protection |
Built-In Tamper Switch |
| Status Indicators |
Visible Front Cover LEDs |
| UL Listings |
UL 864 Commercial Fire, UL 1610 Central Station |
| Certifications |
California State Fire Marshal, FDNY Certificate of Approval |
| Dimensions |
8.25 × 5.75 × 2.0 in (20.96 × 14.61 × 5.08 cm) |
| Weight |
2.2 lbs (1.0 kg) |
Information About TG-7FP

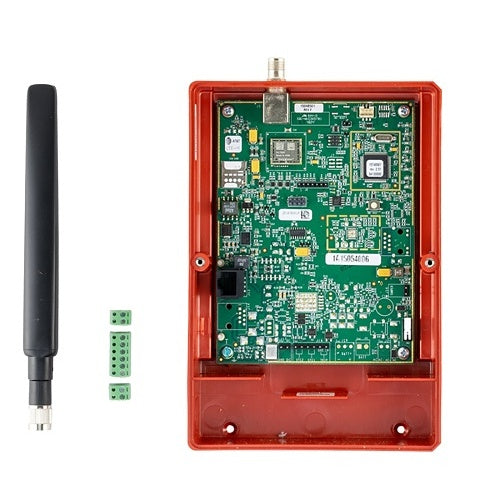

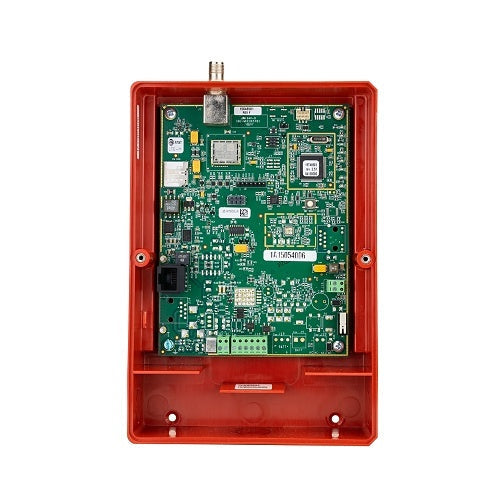

The TG-7FP is a member of the Telguard TG-7 Fire series, developed for commercial fire alarm communication using modern LTE-M cellular technology. Housed in a compact red enclosure with integrated status indicators and tamper protection, it is designed for installation alongside fire alarm control equipment. The communicator supports numerous industry-standard reporting formats, allowing compatibility with a broad range of alarm panels and monitoring systems. Advanced cellular connectivity, remote signal monitoring features, and UL-listed fire alarm compliance make it a dependable solution for critical alarm transmission applications.
Key Features:
- 5G LTE-M Connectivity: Utilizes LTE-M cellular technology for commercial fire alarm signal transmission.
- Universal Alarm Compatibility: Supports CID, SIA, Pulse, Radionics, and DMP communication formats.
- Dual Voltage Operation: Accepts both 12 VDC and 24 VDC input power sources.
- Compact Enclosure Design: Space-saving housing suitable for commercial fire alarm installations.
- Integrated Tamper Protection: Built-in tamper switch helps monitor enclosure access.
- Visible Status Indicators: Front-mounted LEDs provide continuous operational status indication.
- Flexible Antenna Options: Compatible with external and high-gain antenna accessories.
- Certified Fire Compliance: Listed for commercial fire applications under multiple UL standards.
The TG-7FP delivers the reliability and precision required for commercial fire alarm communication and supervised cellular signal transmission.
