Description

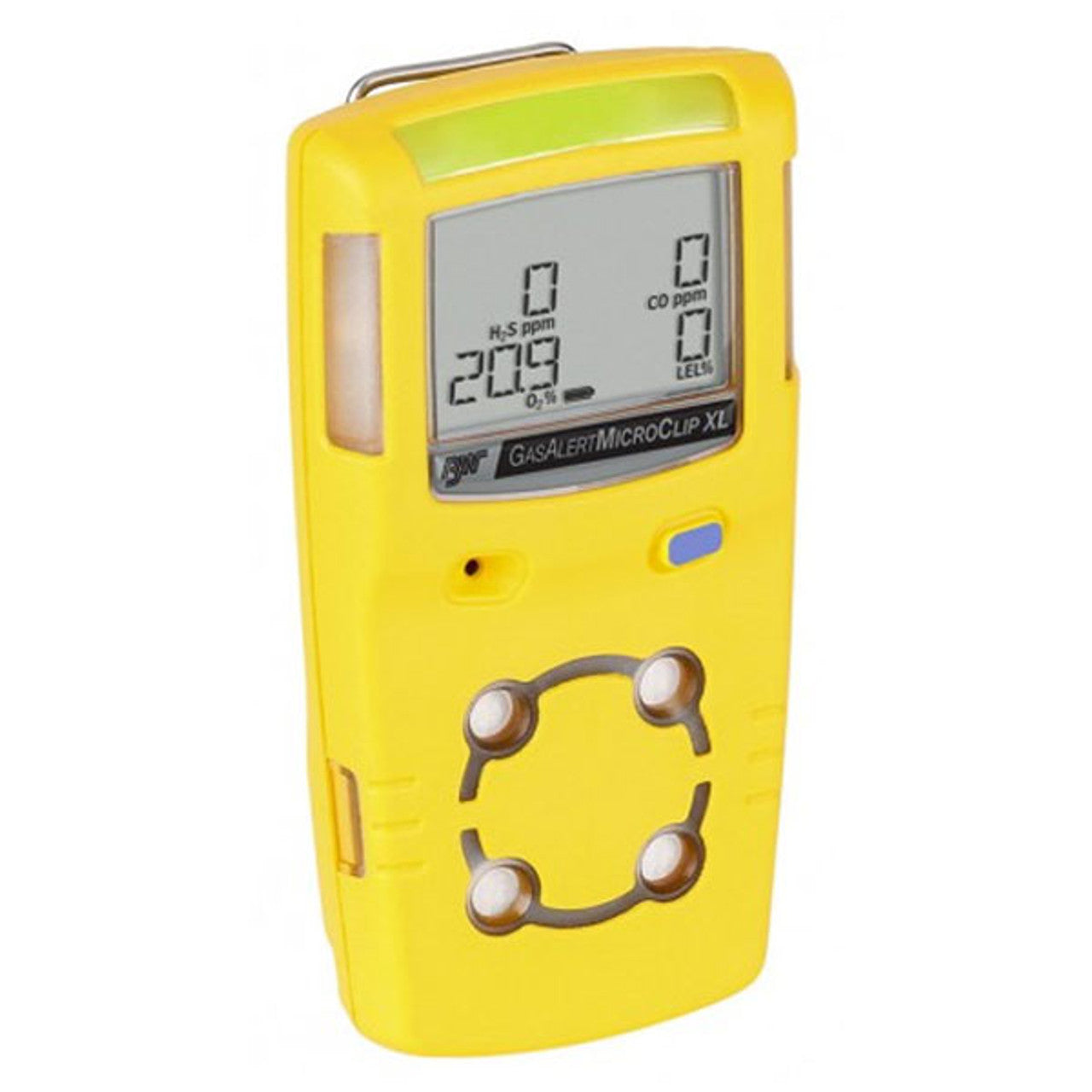

The MCXL-XWHM-Y-NA GasAlertMicroClip XL is a compact, wearable four-gas detector designed for confined space monitoring and personal safety. It detects H₂S, CO, O₂, and combustible gases (LEL), and is ideal for use in industrial environments, especially in cold weather. The device features IntelliFlash™ compliance indication and a rechargeable lithium polymer battery for up to 18 hours of runtime.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
MCXL-XWHM-Y-NA |
| Subcategory |
Gas Monitoring System |
| Product Family |
BW™ GasAlertMicroClip XL |
| Gas Types Detected |
H₂S, CO, O₂, LEL |
| Measurement Type |
Continuous with real-time display |
| Sensor Technology |
Electrochemical and catalytic bead |
| Battery Type |
Rechargeable lithium polymer |
| Battery Life |
Up to 18 hours per charge |
| Charging Time |
Less than 6 hours |
| Operation Temperature |
-4°F to +122°F (-20°C to +50°C) |
| Ingress Protection |
IP68 (submersible and dustproof) |
| Display |
Continuous LCD, 4-gas live readout |
| Alarm Types |
Audible, visual (LED), and vibration |
| Certifications |
Class I, Div. 1, Gr. A, B, C, D; ATEX II 1G; IECEx; CE |
| Interface Languages |
English, French, German, Spanish, Portuguese |
| Dimensions (H x W x D) |
4.4 x 2.4 x 1.2 in (11.3 x 6.0 x 3.1 cm) |
| Data Management |
Fleet Manager II software compatible |
| Calibration Support |
Compatible with BW MicroDock II |
| Enclosure |
Concussion-proof housing |
| Weight |
0.77 lbs (approx. 0.35 kg) |
Information About MCXL-XWHM-Y-NA
The MCXL-XWHM-Y-NA is a Honeywell BW™ GasAlertMicroClip XL model, purpose-built for atmospheric gas hazard detection in confined and restricted-access areas. It monitors oxygen, hydrogen sulfide, carbon monoxide, and combustible gases simultaneously and provides real-time readings through a continuous LCD display. The unit is IP68-rated for ingress protection, comes in a concussion-proof casing, and supports automatic calibration via BW's MicroDock II system. It is certified for Class I, Division 1 hazardous locations and offers multilingual interface options for global use.
Key Features:
- 4-Gas Detection: Monitors H₂S, CO, O₂, and LEL gases in real time.
- Cold Weather Ready: Engineered to perform in temperatures as low as -4°F (-20°C).
- IntelliFlash™ Compliance Indicator: Flashes green to confirm device compliance.
- One-Button Operation: Simplified use reduces training requirements.
- Rechargeable Battery: Lithium-polymer cell offers up to 18 hours of operation per charge.
- Wide-Angle Alarms: High-visibility visual alarms with 360° coverage.
- Self-Test Function: Automatically checks sensor, battery, and alarm status on startup.
- IP68 Protection: Waterproof and dust-tight for harsh industrial environments.
- MicroDock II Compatible: Supports automated bump testing and calibration.
- Multilingual Interface: English, French, German, Spanish, and Portuguese supported.
The MCXL-XWHM-Y-NA delivers dependable protection and simple operation for confined space and industrial safety applications.
