Description

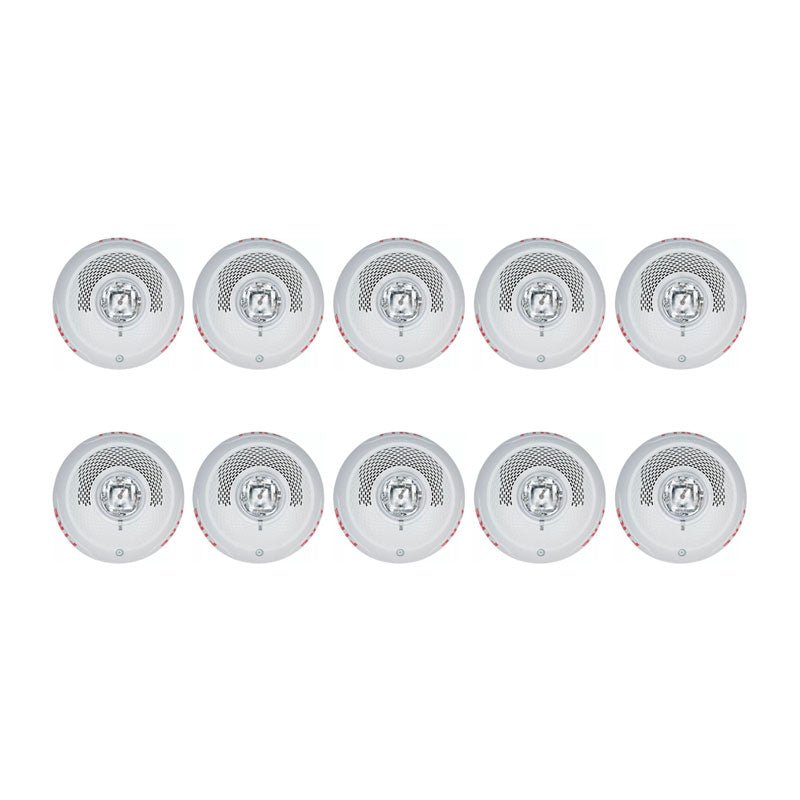

The System Sensor SPSCWLED-BP10 is a L-Series LED ceiling speaker strobe bulk pack containing ten white notification appliances designed for fire alarm voice evacuation and emergency communication systems. It combines high-fidelity speaker output with LED visual signaling, selectable candela settings, and low current operation for efficient commercial fire protection installations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
System Sensor |
| Category |
Fire Alarm Systems |
| Part Number |
SPSCWLED-BP10 |
| Subcategory |
LED Ceiling Speaker Strobe |
| Series |
L-Series |
| Product Type |
Ceiling Mount LED Speaker Strobe |
| Package Quantity |
10 Units |
| Device Color |
White |
| Mounting Type |
Ceiling Surface or Recessed Mount |
| Operating Voltage |
24 VDC |
| Strobe Technology |
LED |
| Candela Settings |
15, 30, 75, 95, 115, 150, and 177 cd |
| Speaker Voltage Settings |
25 VRMS and 70.7 VRMS |
| Speaker Power Settings |
1/4, 1/2, 1, and 2 Watts |
| Audio Frequency Range |
500–2000 Hz |
| Alarm Tone Capability |
520 Hz ±10% square wave with compatible FACP |
| Audio Performance |
High-fidelity output with low harmonic distortion |
| Synchronization |
System Sensor Sync protocol / MDL3 Sync Module |
| Diagnostic Features |
Digital Voltage Meter (DVM) test points |
| Installation Features |
Plug-in mounting plate with shorting spring |
| Compatibility |
SpectrAlert, SpectrAlert Advance, and L-Series devices |
| Operating Temperature |
32°F to 120°F (0°C to 49°C) |
| Application |
Fire alarm voice evacuation and emergency communication |
| Weight |
Approximately 3.0 lb (1.36 kg) per unit |
Information About SPSCWLED-BP10
The SPSCWLED-BP10 is part of the System Sensor L-Series LED speaker strobe family developed for flexible voice evacuation and notification applications. Each ceiling-mounted appliance integrates a speaker and LED strobe to provide synchronized audible and visual emergency communication from a single device. The unit supports selectable speaker voltage and power settings along with adjustable candela output to meet different installation requirements. Its plug-in mounting design, universal mounting plate, and diagnostic test points simplify installation, testing, and maintenance in commercial and institutional facilities.
Key Features:
- 10-Pack Configuration: Includes ten white ceiling speaker strobes for larger fire alarm installations.
- LED Notification Technology: Provides reduced current consumption compared with traditional notification devices.
- Combined Speaker Strobe Design: Delivers both voice communication and visual alarm indication in one appliance.
- Ceiling Mount Installation: Designed for ceiling surface or recessed mounting applications.
- Selectable Candela Settings: Supports 15, 30, 75, 95, 115, 150, and 177 cd visual output levels.
- Adjustable Speaker Settings: Provides selectable 25V and 70.7V speaker voltage with 1/4, 1/2, 1, and 2 watt power taps.
- High-Fidelity Audio Output: Produces clear voice reproduction with low total harmonic distortion.
- High Volume Performance: Suitable for areas with elevated ambient noise levels.
- DVM Diagnostic Test Points: Allows voltage testing and troubleshooting without removing the appliance.
- Universal Mounting Plate: Enables pre-installation wiring checks with integrated shorting spring.
- Legacy Compatibility: Electrically compatible with SpectrAlert, SpectrAlert Advance, and L-Series devices.
- Synchronization Support: Works with System Sensor Sync protocol power supplies and MDL3 Sync Module.
The SPSCWLED-BP10 delivers the reliability and precision required for fire alarm voice evacuation and synchronized notification systems.
