Description

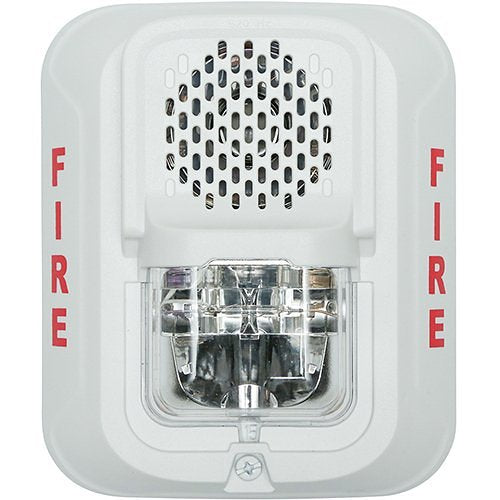

The System Sensor P2WL-BP10 is a bulk pack of ten L-Series wall-mount horn strobes engineered for reliable audible and visual fire notification. Featuring modern aesthetics, low current draw, and installer-friendly plug-in design, these devices simplify installation while providing dependable life safety signaling.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
System Sensor |
| Category |
Fire Safety |
| Part Number |
P2WL-BP10 |
| Subcategory |
Horn Strobes |
| Series |
L-Series |
| Device Type |
Wall-mount horn strobe (pack of 10) |
| Housing Color |
Red |
| Voltage |
12/24 VDC, automatic selection at 15/30 cd |
| Horn Output |
88+ dBA at 16 V |
| Selectable Candela |
15, 30, 75, 95, 110, 135, 185 cd |
| Horn Tone Control |
Temporal 3, Continuous (rotary switch) |
| Volume Control |
High/Low settings |
| Mounting |
Universal plate with onboard shorting spring |
| Construction |
Tamper-resistant housing |
| Compatibility |
SpectrAlert, SpectrAlert Advance, MDL3 sync module |
| Dimensions (Pack) |
20 × 14 × 10 in (approx.) |
| Weight (Pack) |
4 lbs |
Information About P2WL-BP10
The P2WL-BP10 is part of the System Sensor L-Series line of notification appliances, offering versatility and reduced installation costs. Each unit is designed with a universal mounting plate and onboard shorting spring, allowing installers to pre-wire and confirm wiring continuity before final installation. The horn strobes feature field-selectable candela outputs (15–185 cd), automatic 12/24 V operation, and rotary switches for horn tone and volume adjustments. With tamper-resistant construction and compatibility with SpectrAlert and SpectrAlert Advance devices, the P2WL-BP10 bulk pack is an ideal solution for large-scale projects requiring consistent, code-compliant fire notification.
Key Features:
- Bulk Pack Value: Includes 10 wall-mount horn strobes.
- LED-Ready Design: Reduced current draw for efficient NAC circuit design.
- Plug-In Mounting: Simplifies installation and minimizes backbox intrusion.
- Selectable Candela: 15, 30, 75, 95, 110, 135, and 185 cd options.
- Auto Voltage Selection: Automatically selects 12 V or 24 V at 15 and 30 cd.
- Tone & Volume Control: Rotary switch for horn tone with high/low volume settings.
- Universal Mounting Plate: Includes shorting spring for continuity testing.
- Tamper-Resistant: Protects against unauthorized removal or damage.
- System Compatibility: Works with MDL3 sync module and legacy SpectrAlert/SpectrAlert Advance devices.
The P2WL-BP10 delivers the reliability and precision required for commercial fire alarm and life safety systems.
