Description

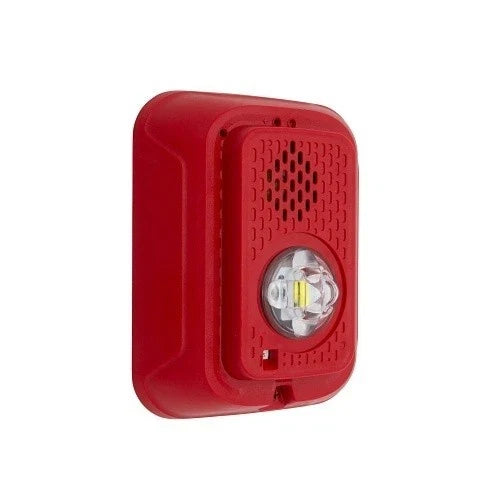

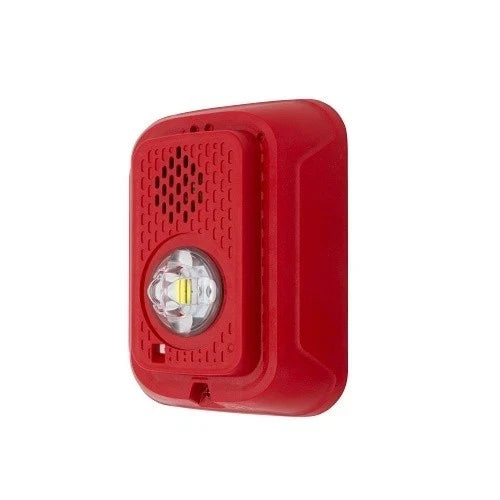

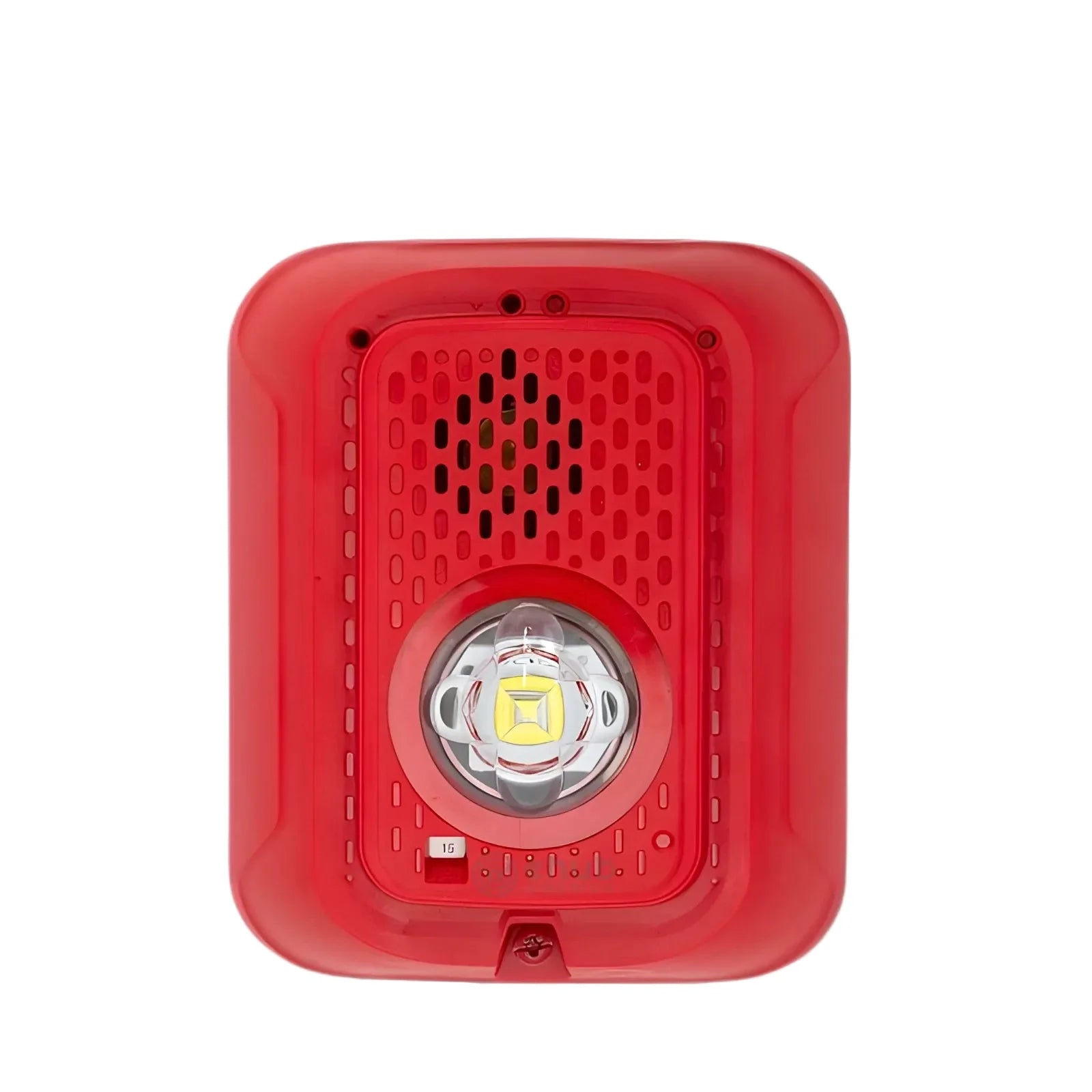

The System Sensor P2RLED-BP10 is a L-Series LED horn strobe bulk pack containing ten red wall-mounted notification appliances designed for indoor fire alarm applications. It combines audible horn signaling and high-intensity LED visual notification with low current consumption, selectable settings, and compatibility with System Sensor notification platforms.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
System Sensor |
| Category |
Fire Alarm Systems |
| Part Number |
P2RLED-BP10 |
| Subcategory |
LED Horn Strobe |
| Series |
L-Series |
| Product Type |
Indoor Two-Wire LED Horn Strobe |
| Package Quantity |
10 Units |
| Device Color |
Red |
| Marking |
FIRE |
| Mounting Type |
Wall Mount |
| Operating Voltage |
24 VDC |
| Operating Voltage Range |
16–33 VDC |
| Strobe Technology |
LED |
| Horn Output |
88+ dBA at 16V |
| Strobe Flash Rate |
1 flash per second |
| Candela Selection |
Field selectable |
| Horn Settings |
Field selectable tone and volume |
| Current Draw |
Reduced LED current consumption compared with xenon devices |
| Circuit Type |
Two-wire Notification Appliance Circuit (NAC) |
| Synchronization |
Compatible with System Sensor sync protocol |
| Diagnostic Features |
Digital Voltage Meter (DVM) test points |
| Mounting Features |
Universal mounting plate with shorting spring |
| Compatibility |
SpectrAlert, SpectrAlert Advance, and L-Series devices |
| Application |
Indoor fire alarm notification systems |
| Compliance |
UL 464 and UL 1971 listed |
| Operating Environment |
Commercial, institutional, and industrial facilities |
| Weight |
Approximately 1.5 lb (0.68 kg) per unit |
Information About P2RLED-BP10
The P2RLED-BP10 is part of the System Sensor L-Series two-wire LED horn strobe family developed for efficient fire alarm notification system installations. Each device integrates an LED strobe and audible horn in a red wall-mount housing with FIRE marking for clear emergency identification. The appliance uses rotary switches for field selection of candela, horn tone, and volume settings while maintaining simplified installation through a universal mounting plate design. The bulk pack configuration provides ten identical units for commercial, institutional, and industrial projects requiring consistent audible and visual alarm coverage.
Key Features:
- 10-Pack Configuration: Includes ten P2RLED LED horn strobes for large-scale fire alarm installations.
- LED Notification Technology: Reduces current consumption compared with traditional xenon-based strobes.
- Two-Wire Operation: Connects to compatible 2-wire notification appliance circuits.
- Combined Horn Strobe Design: Provides both audible alarm output and visual emergency indication in one device.
- Wall Mount Installation: Designed for indoor wall-mounted fire alarm notification applications.
- Field-Selectable Candela: Allows adjustment of visual output levels for different installation requirements.
- Selectable Horn Settings: Provides adjustable tone and volume configurations using rotary switches.
- Digital Voltage Meter Test Points: Enables troubleshooting and voltage measurement without removing the appliance.
- Universal Mounting Plate: Simplifies installation with plug-in connection and wiring continuity testing.
- Legacy Compatibility: Works with SpectrAlert, SpectrAlert Advance, and L-Series notification devices.
- Synchronization Support: Allows coordinated operation with compatible System Sensor synchronization equipment.
- UL Listed Performance: Meets requirements for audible and visual fire alarm notification applications.
The P2RLED-BP10 delivers the reliability and precision required for fire alarm audible and visual notification systems.
