Description

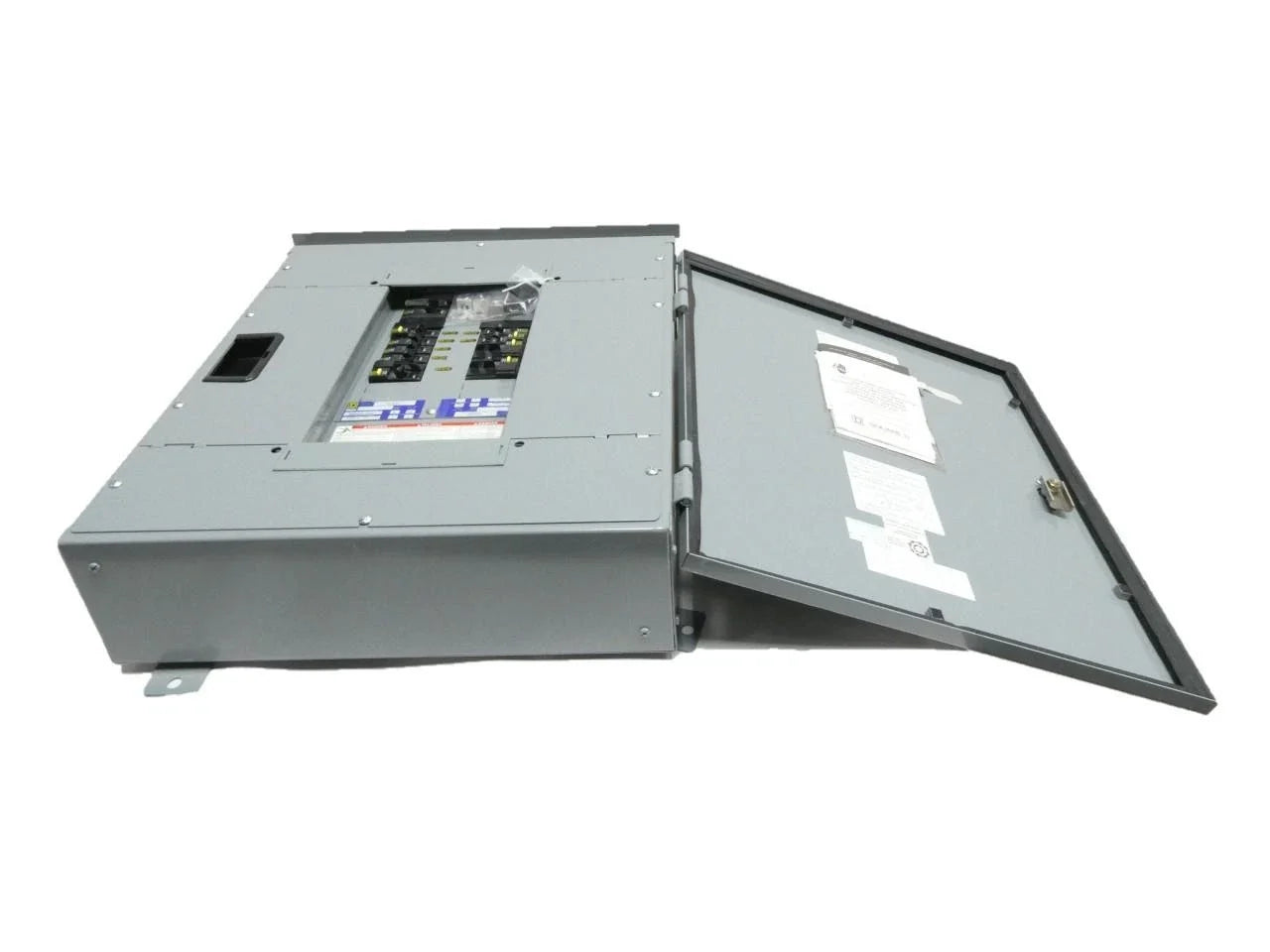

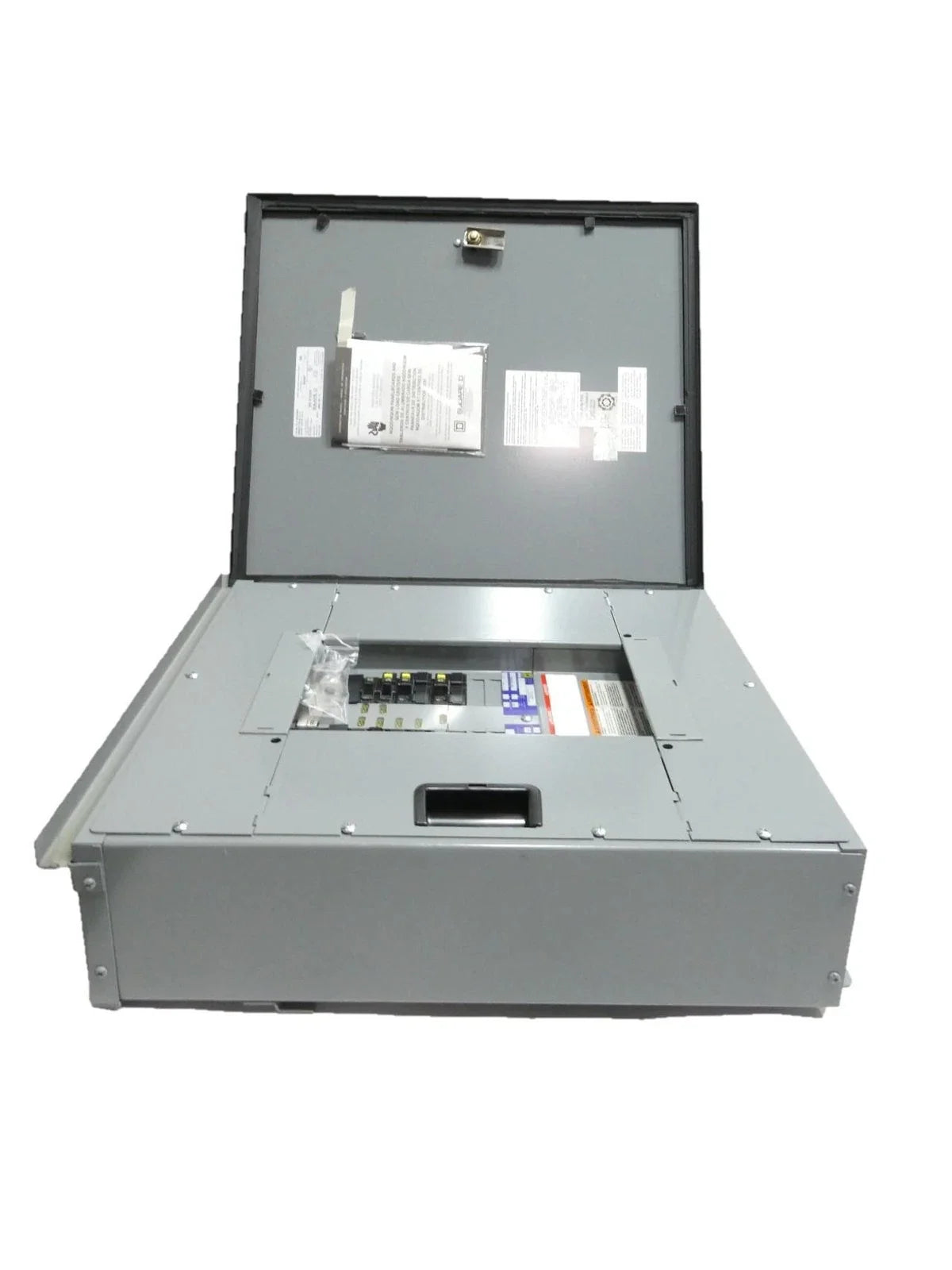

The Square D NQOD424L100CU panelboard is a 3-phase main lug distribution panel designed for commercial electrical systems requiring reliable branch circuit management. It features a 100 A copper bus configuration with 24 circuits for use in 120/208-240 V power distribution applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Square D |
| Category |
Electrical Distribution |
| Part Number |
NQOD424L100CU |
| Subcategory |
Panelboards |
| Series |
NQOD |
| Type |
Main Lug Panelboard |
| Maximum Amperage |
100 A |
| Voltage Rating |
120/208-240 V |
| Number of Phases |
3 |
| Wiring Configuration |
4-Wire |
| Number of Circuits |
24 |
| Bus Material |
Copper |
| Application |
Commercial Power Distribution |
| Mounting Type |
Panel Mount |
| Weight |
34 lb |
Information About NQOD424L100CU
The NQOD424L100CU is a panelboard manufactured by Square D for 3-phase electrical distribution and branch circuit protection applications. This main lug panelboard is engineered with a copper bus assembly to improve conductivity and support stable power distribution performance in commercial installations. Designed for 120/208-240 V systems, the unit provides 24 circuit spaces for organized branch circuit expansion and load management. Its NQOD series construction supports integration into commercial and industrial electrical infrastructures where compact, high-reliability distribution equipment is required.
Key Features:
- 100 Amp Main Lug Rating: Supports commercial branch circuit distribution applications.
- 24 Circuit Capacity: Provides flexible branch circuit expansion capability.
- 3-Phase Configuration: Designed for balanced commercial power distribution systems.
- Copper Bus Assembly: Enhances electrical conductivity and operational reliability.
- Main Lug Design: Supports feeder connection without integrated main breaker.
- NQOD Series Construction: Built for Square D commercial panelboard systems.
- 120/208-240 V Compatibility: Suitable for multiple commercial voltage configurations.
- Compact Panelboard Layout: Supports organized circuit management in electrical installations.
The NQOD424L100CU delivers the reliability and precision required for commercial power distribution and branch circuit management systems.
