Description

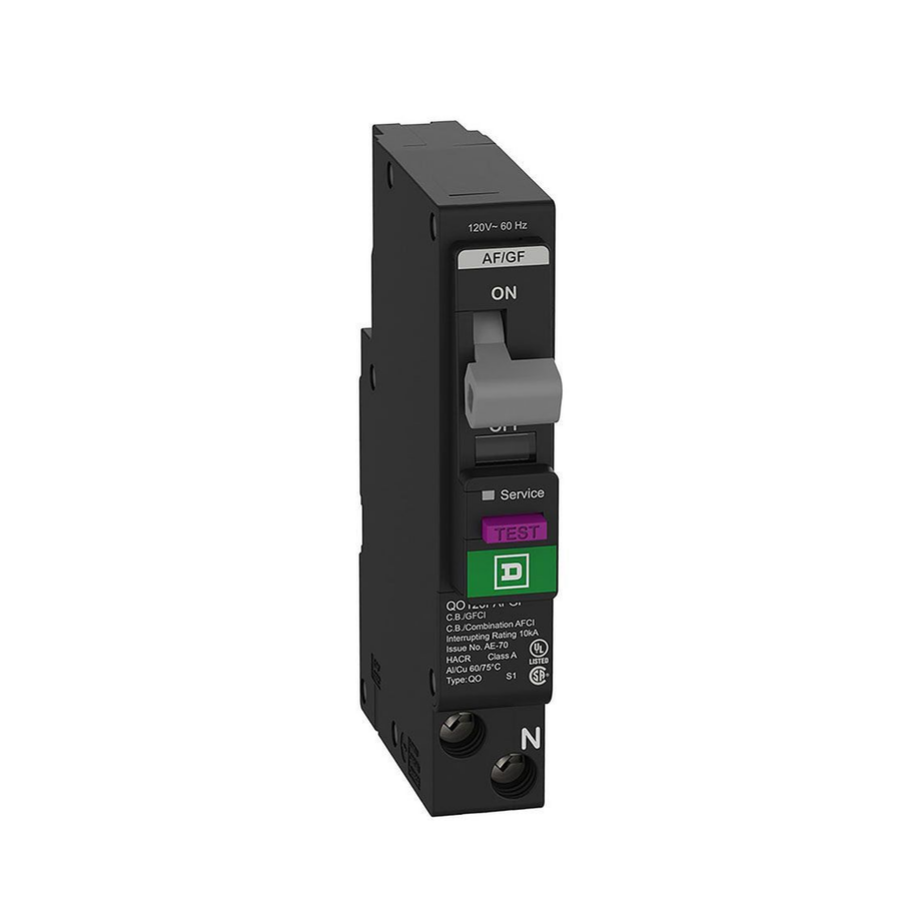

The Square D QO115PAFGF is a 15A, 1-pole miniature circuit breaker engineered to provide dual protection through combination arc-fault and 6 mA Class A ground-fault interruption. Its plug-on neutral design and 10 kA interrupt rating support fast installation and dependable performance in residential and commercial electrical systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Square D |
| Category |
Circuit Protection |
| Part Number |
QO115PAFGF |
| Subcategory |
Miniature Circuit Breaker |
| Current Rating |
15 A |
| Voltage Rating |
120 VAC |
| Number of Poles |
1 |
| Circuit Breaker Type |
Combination ARC-Fault with 6 mA Class A Ground-Fault |
| Mounting Type |
Plug-In |
| Electrical Connection |
Pressure Plate |
| Interrupt Rating |
10 kA @ 120 VAC, 50/60 Hz |
| Protection Type |
Thermal-Magnetic (LI) |
| Series |
QO |
| Plug-On Neutral |
Yes |
| Ambient Rating |
104°F (40°C) |
| Dimensions (H × W × L) |
4.75″ × 0.75″ × 2.91″ |
| Phase |
1 |
| Weight |
1.10 lbs |
Information About QO115PAFGF
The QO115PAFGF is a Square D dual-function circuit breaker designed for plug-in mounting within QO series load centers. It combines both arc-fault protection and Class A 6 mA ground-fault interruption in a single device, offering enhanced electrical safety for branch circuits. Operating at 120 VAC and rated at 15 amps, it supports thermal-magnetic protection with long-time and instantaneous trip functions for reliable circuit interruption. The breaker incorporates a plug-on neutral interface to simplify installation, improve panel layout, and reduce wiring time, all while meeting UL and HACR requirements for modern electrical systems.
Key Features:
- Dual-Function Protection: Provides combination arc-fault and 6 mA Class A ground-fault interruption in one breaker for enhanced safety.
- 15A, 1-Pole Design: Supports standard branch-circuit protection at 120 VAC.
- 10 kA Interrupt Rating: Ensures dependable fault clearing in residential and light commercial systems.
- Plug-On Neutral Capability: Reduces wiring time and simplifies panel installation.
- Thermal-Magnetic Trip Unit: Offers long-time overload and instantaneous short-circuit protection.
- Plug-In Mounting: Allows fast replacement and secure connection within QO series load centers.
- Pressure-Plate Terminals: Provide stable and reliable conductor termination.
- Rated for 40°C Ambient: Supports operation in typical electrical panel environments.
The QO115PAFGF delivers the reliability and precision required for dual-function electrical protection in QO load center installations.
