Description

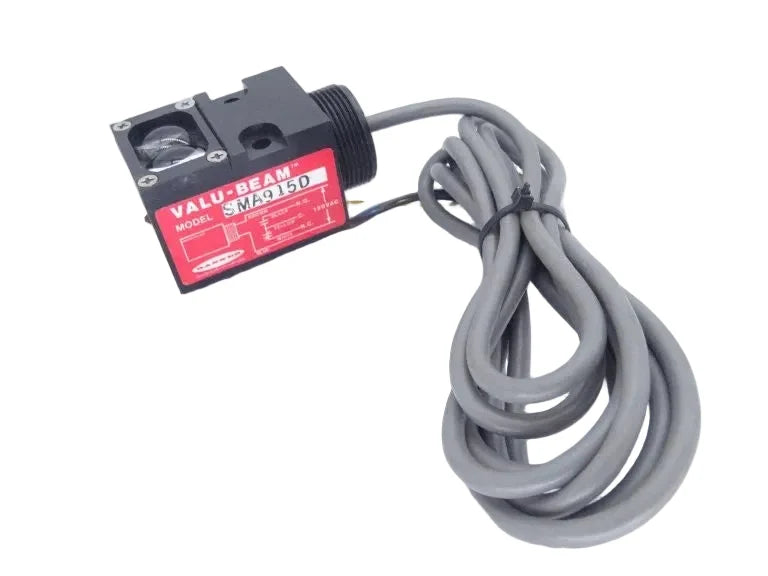

The Banner Engineering SMA915D is a VALU-BEAM series photoelectric scanner with an integrated relay output designed for reliable diffuse-mode object detection. It operates on a 130 VAC supply and provides SPDT relay switching for direct control of industrial loads. This sensor is built for dependable performance in automation applications requiring long sensing range and robust electrical output.

Technical Specifications

Information About SMA915D

The SMA915D is part of Banner Engineering’s VALU-BEAM Series, developed for cost-effective and durable photoelectric sensing in industrial environments. It uses diffuse sensing technology to detect objects up to 760 mm without the need for a reflector or separate receiver. The sensor incorporates an internal SPDT relay, allowing it to switch higher currents and voltages directly without external relays. Its rugged housing and IP66 rating support reliable operation in applications exposed to dust, moisture, and washdown conditions.

Key Features:

• VALU-BEAM Series Design: Engineered for reliable and economical industrial photoelectric sensing.
• Diffuse Sensing Mode: Detects objects directly without additional reflectors or receivers.
• Long Sensing Range: Supports object detection up to 760 mm.
• Integrated Relay Output: SPDT relay enables direct switching of AC or DC loads.
• High Switching Capacity: Rated up to 5 A at 250 VAC or 30 VDC.
• Industrial Power Input: Operates on 130 VAC for standard facility power compatibility.
• Environmental Protection: IP66 rated for resistance to dust and water exposure.

The SMA915D delivers the reliability and precision required for diffuse photoelectric sensing with direct relay control in industrial automation systems.
