Description

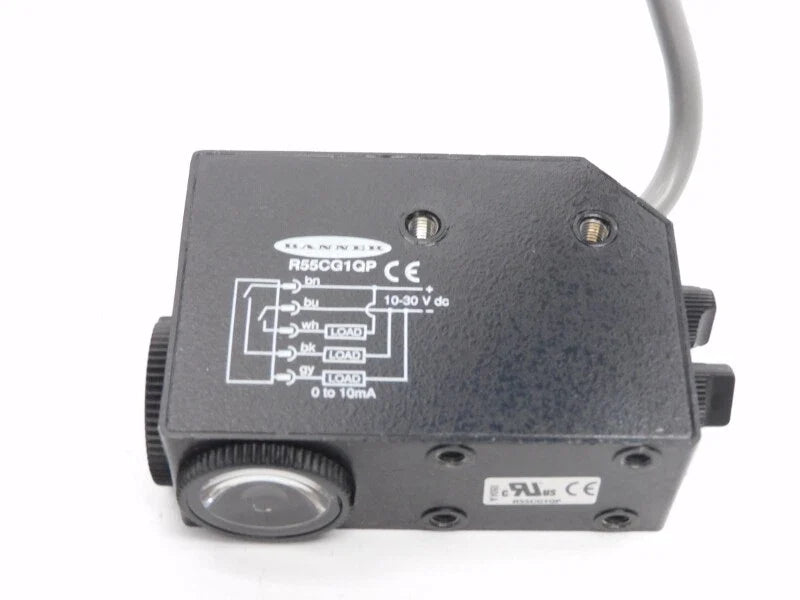

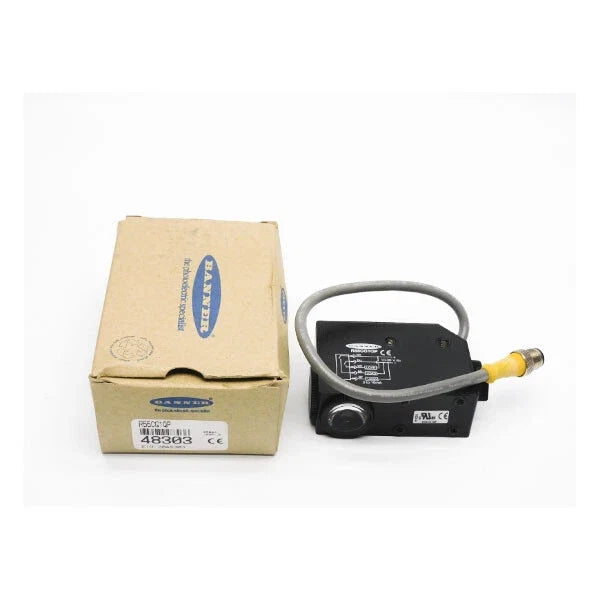

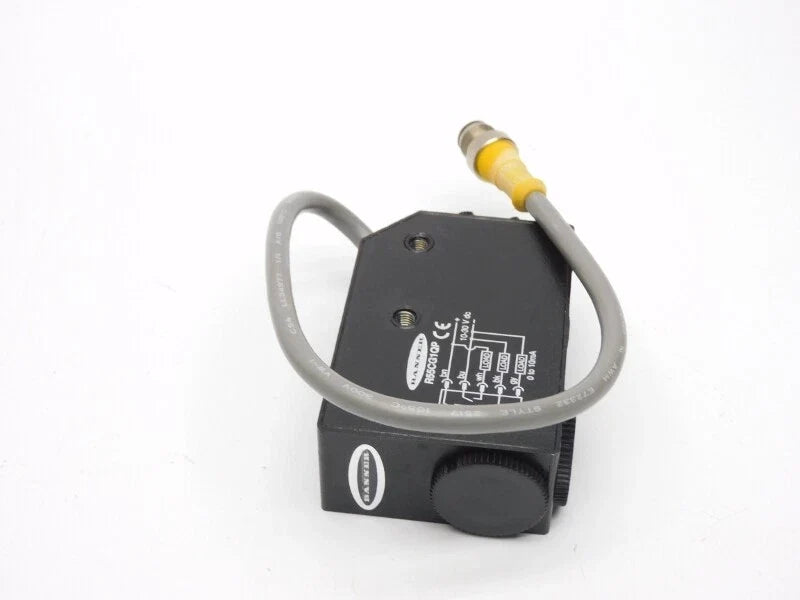

The Banner Engineering R55CG1QP color mark sensor is a convergent optical sensor designed for precise color detection in industrial automation applications. Utilizing a blue-green LED light source, this sensor delivers reliable color mark recognition for packaging, printing, and material handling systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors |
| Part Number |
R55CG1QP |
| Subcategory |
Color Mark Sensors |
| Sensor Type |
Color Mark Sensor |
| Optical Design |
Convergent |
| Light Source |
Blue-Green LED |
| Focal Point |
10 mm (parallel) |
| Supply Voltage |
10–30 VDC |
| Discrete Outputs |
Bipolar NPN/PNP |
| Analog Output |
0–10 mA |
| Connection Type |
12 in Pigtail, Quick Disconnect |
| Application Use |
Color Mark Detection |
| Operating Environment |
Industrial |
| Weight |
0.75 lbs |
Information About R55CG1QP
The R55CG1QP is part of Banner Engineering’s R55 Color Mark sensor family, engineered for accurate detection of color contrast on moving materials. This sensor features a convergent optical design with a parallel focal point of 10 mm, allowing consistent detection at close sensing distances. It operates on a wide 10–30 VDC supply range and supports both bipolar NPN/PNP discrete outputs as well as an analog current output for flexible system integration. Designed with a pigtail quick-disconnect cable, it simplifies installation in industrial environments requiring fast setup and dependable performance.
Key Features:
- Convergent Color Mark Sensing: Designed for accurate detection of color contrast on targets at close range.
- Blue-Green LED Light Source: Optimized for reliable color discrimination across various materials.
- 10 mm Focal Point: Provides consistent sensing performance at a defined working distance.
- Wide DC Input Range: Operates on 10–30 VDC for compatibility with standard control systems.
- Bipolar NPN/PNP Outputs: Supports flexible discrete output configuration.
- Analog Current Output: Provides 0–10 mA analog signal for advanced monitoring or control.
- Quick Disconnect Pigtail: Includes a 12-inch cable for straightforward installation and maintenance.
The R55CG1QP delivers the reliability and precision required for industrial color mark detection and automated inspection applications.
