Description

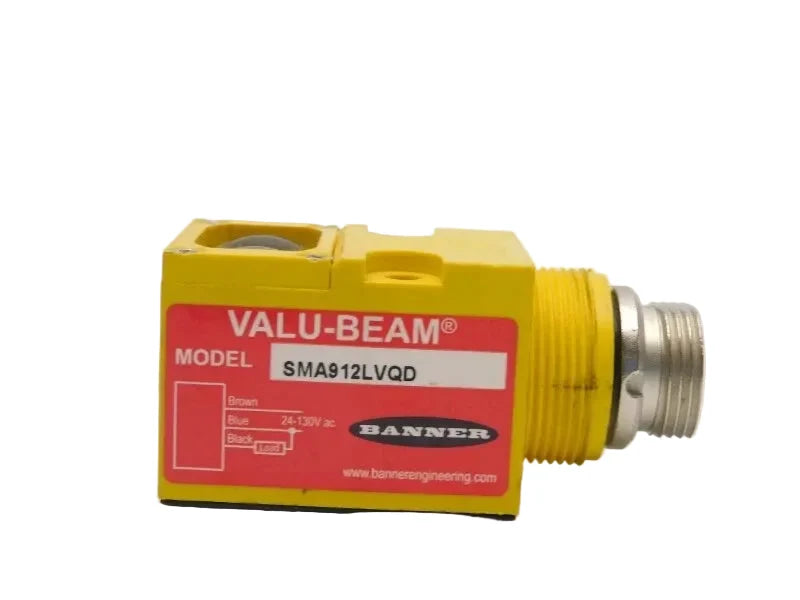

The Banner Engineering SMA912LVQD is a retroreflective photoelectric sensor designed for reliable object detection in industrial automation environments. It operates on AC supply voltage and uses solid-state relay output for stable switching performance. The sensor is suitable for applications requiring medium to long sensing distances and threaded mounting.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors |
| Part Number |
SMA912LVQD |
| Subcategory |
Photoelectric Sensors |
| Series |
VALU-BEAM Series |
| Sensing Method |
Retroreflective, Non-Polarized |
| Sensing Distance |
Up to 9 m |
| Light Source |
Red LED (650 nm) |
| Output Type |
Solid State Relay |
| Output Mode |
Light-ON / Dark-ON selectable |
| Supply Voltage |
24–130 VAC |
| Switching Current |
500 mA |
| Response Time |
4 ms |
| Mounting Type |
Threaded |
| Ingress Protection |
IP66 / NEMA 1, 2, 3, 3S, 4, 4X, 12, 13 |
| Operating Temperature |
-20°C to 70°C |
| Weight |
0.04 lbs |
Information About SMA912LVQD
The SMA912LVQD is part of the Banner Engineering VALU-BEAM Series, known for durable photoelectric sensing solutions used in industrial systems. It features a non-polarized retroreflective sensing method that allows consistent detection regardless of target surface characteristics. The sensor is equipped with adjustable sensitivity and selectable light-on/dark-on operation to support flexible installation. Its rugged enclosure and connector-based interface make it suitable for factory automation, material handling, and packaging applications.
Key Features:
-
Retroreflective sensing method: Enables reliable detection with a reflector
-
Solid-state relay output: Provides durable and maintenance-free switching
-
AC supply voltage operation: Supports industrial AC power systems
-
Adjustable sensitivity control: Allows fine-tuning for different applications
-
Threaded mounting design: Ensures secure and stable installation
-
Red LED light source: Enhances visibility and alignment during setup
-
Industrial-grade enclosure: Supports use in demanding environments
The SMA912LVQD delivers dependable photoelectric sensing performance for industrial automation and material handling systems.
