Description
The Banner Engineering SLSE30-150Q5 is an EZ-SCREEN safety light screen emitter designed to provide reliable perimeter and point-of-operation safeguarding in industrial environments. With a 150 mm protected height and a sensing range up to 18 meters, it emits 10 infrared beams to create a defined safety detection field. Its 9 ms response time ensures rapid reaction for machine safety applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Safety |
| Part Number |
SLSE30-150Q5 |
| Subcategory |
Safety Light Curtain Emitters |
| Series |
EZ-SCREEN |
| Device Type |
Safety Light Screen Emitter |
| Protected Height |
150 mm |
| Number of Beams |
10 |
| Optical Resolution |
30 mm |
| Maximum Range |
18,000 mm (18 m) |
| Response Time |
9 ms |
| Light Type |
Infrared (IR) |
| Wavelength |
950 nm |
| Protection Class |
IP65 |
| Housing Material |
Aluminum (Metal) |
| Design |
Rectangular |
| Electrical Connection |
M12 × 1 Connector |
| Dimensions |
45 mm x 36 mm x 262 mm |
| Operating Temperature Range |
0°C to 50°C |
| Weight |
Approx. 1.2 kg |
Information About SLSE30-150Q5

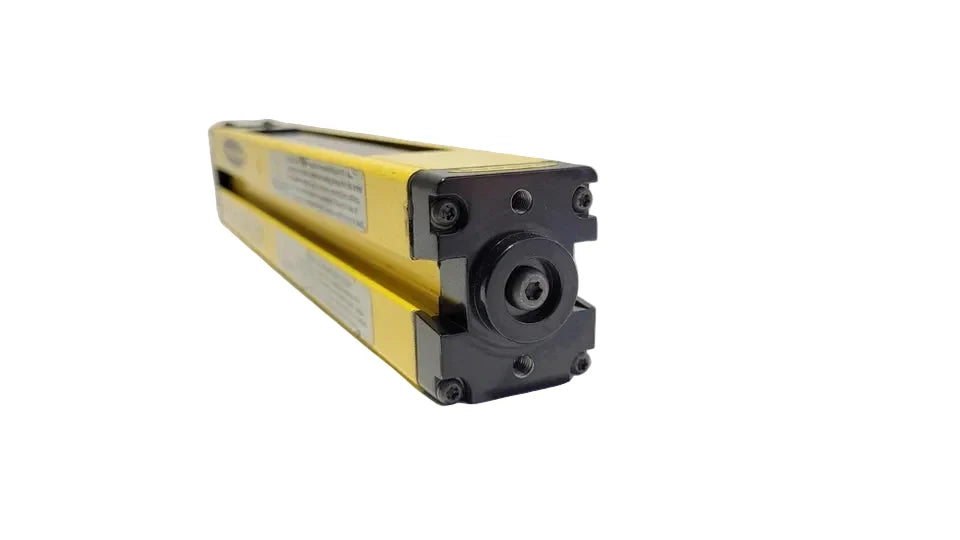

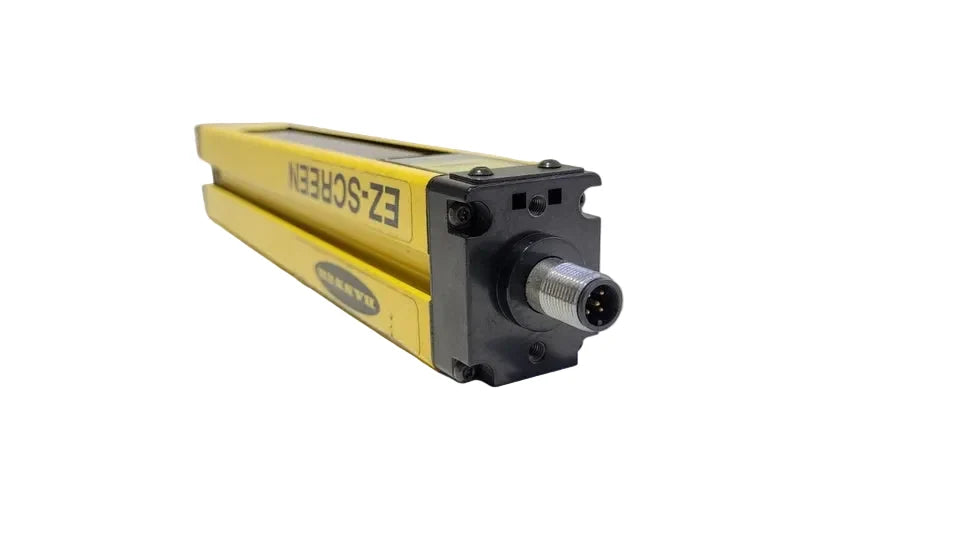

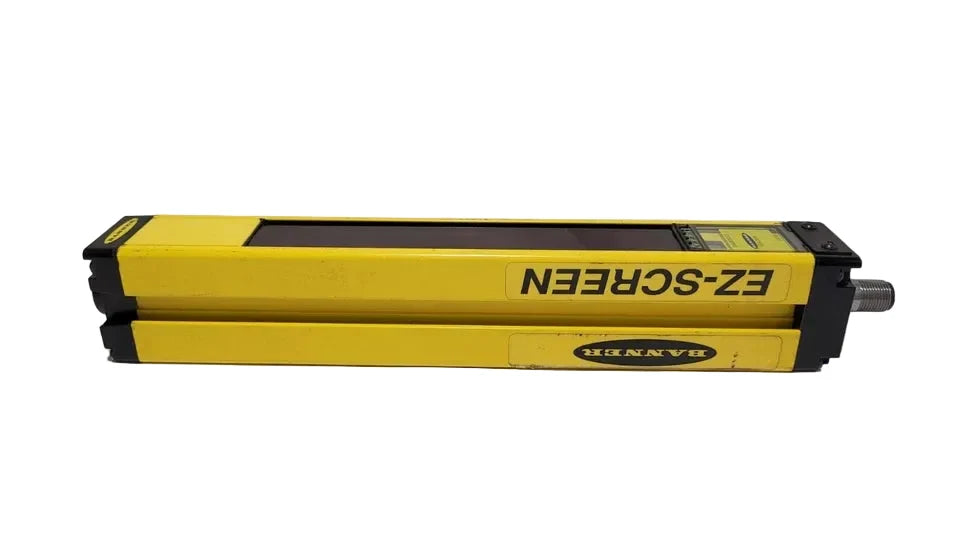

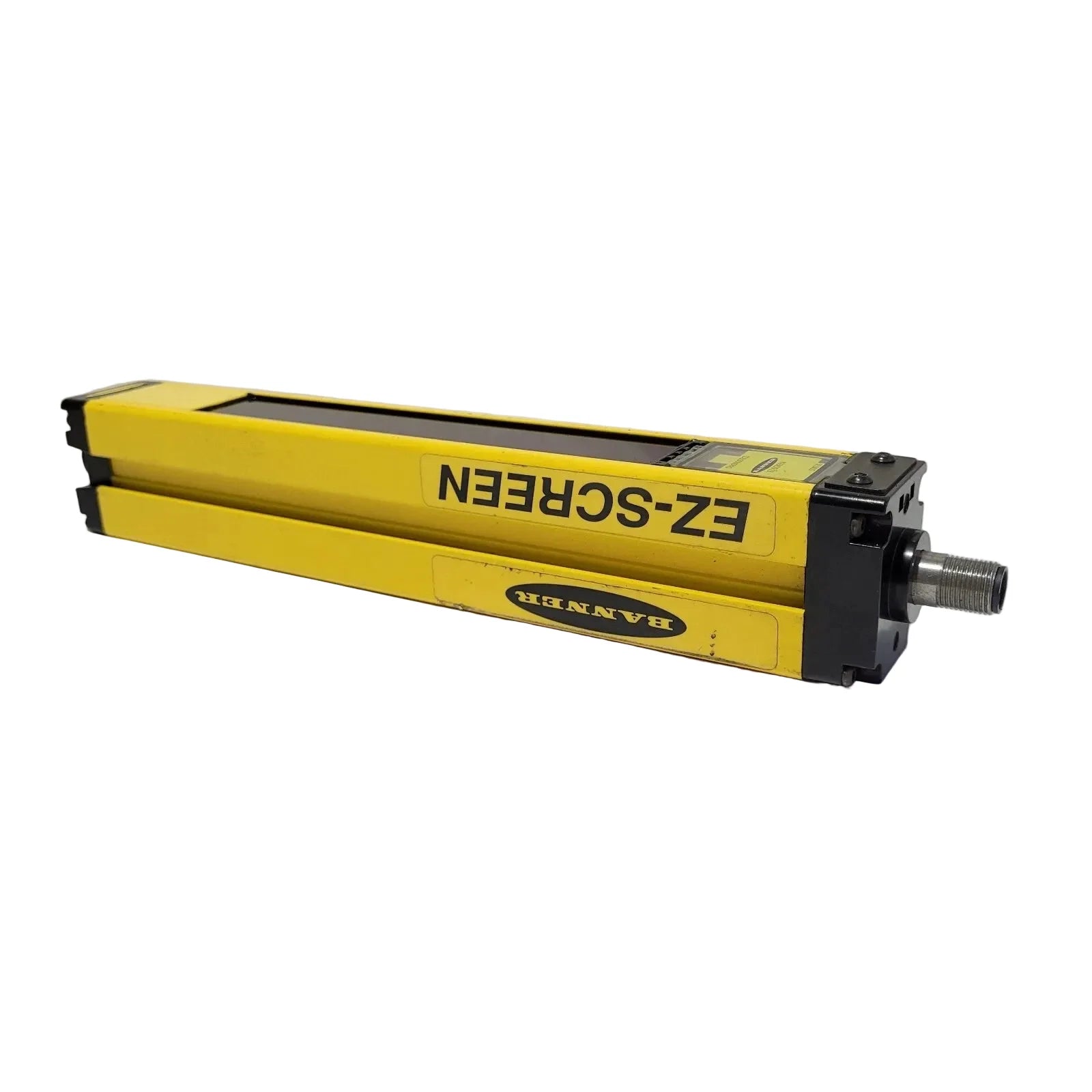

The SLSE30-150Q5 is part of Banner Engineering’s EZ-SCREEN safety light curtain series, engineered to establish a protective optical barrier for personnel safeguarding. This emitter unit projects synchronized infrared beams at a wavelength of 950 nm across a 150 mm scan field when paired with a compatible receiver. It features a rugged rectangular aluminum housing with IP65 protection, suitable for use in industrial environments with exposure to dust and water spray. Equipped with an M12 quick-disconnect connector and integrated test function, it supports streamlined installation and system validation in machine safety circuits.
Key Features:
- 150 mm Protected Height: Provides a compact safety detection zone for small access points.
- 10 Infrared Beams: Creates a defined light screen with 30 mm optical resolution.
- Extended Range (0.1–18 m): Supports flexible installation across wide machine openings.
- Fast Response Time (9 ms): Enables rapid interruption detection for machine stopping systems.
- Integrated Test Function: Allows verification of proper emitter operation.
- IP65 Protection Rating: Suitable for industrial environments with dust and water exposure.
- M12 × 1 Quick Disconnect: Ensures secure and efficient electrical connection.
- Adjustable Start/Restart Interlock: Supports configurable safety control integration.
The SLSE30-150Q5 delivers the reliability and precision required for industrial machine safeguarding and personnel protection applications.
