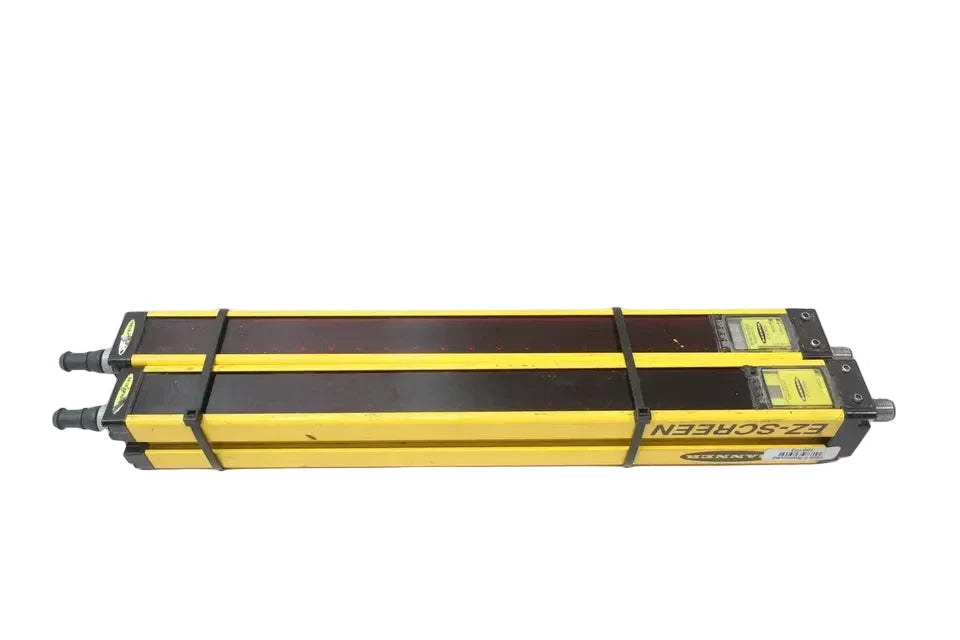

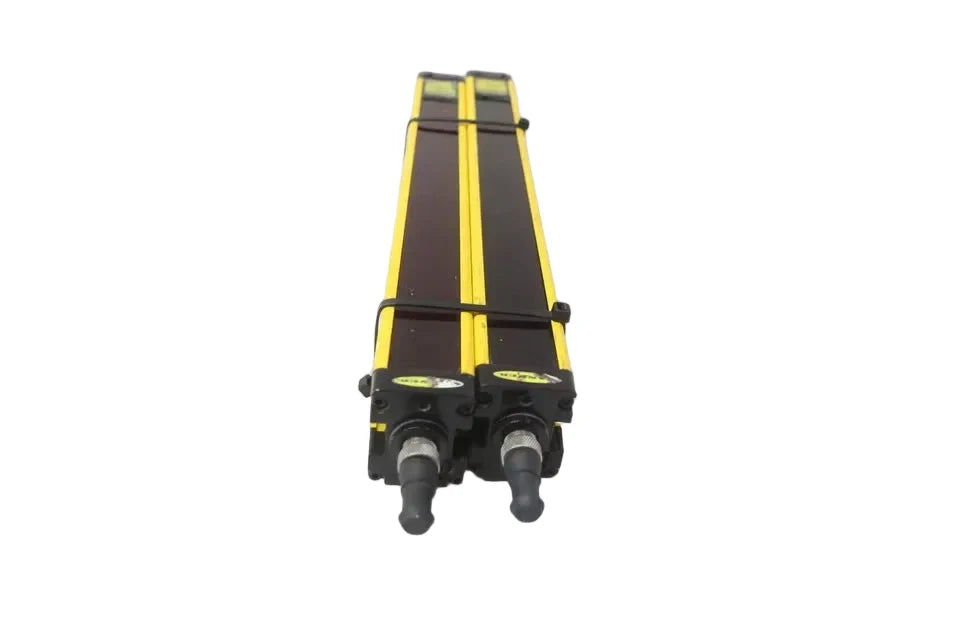

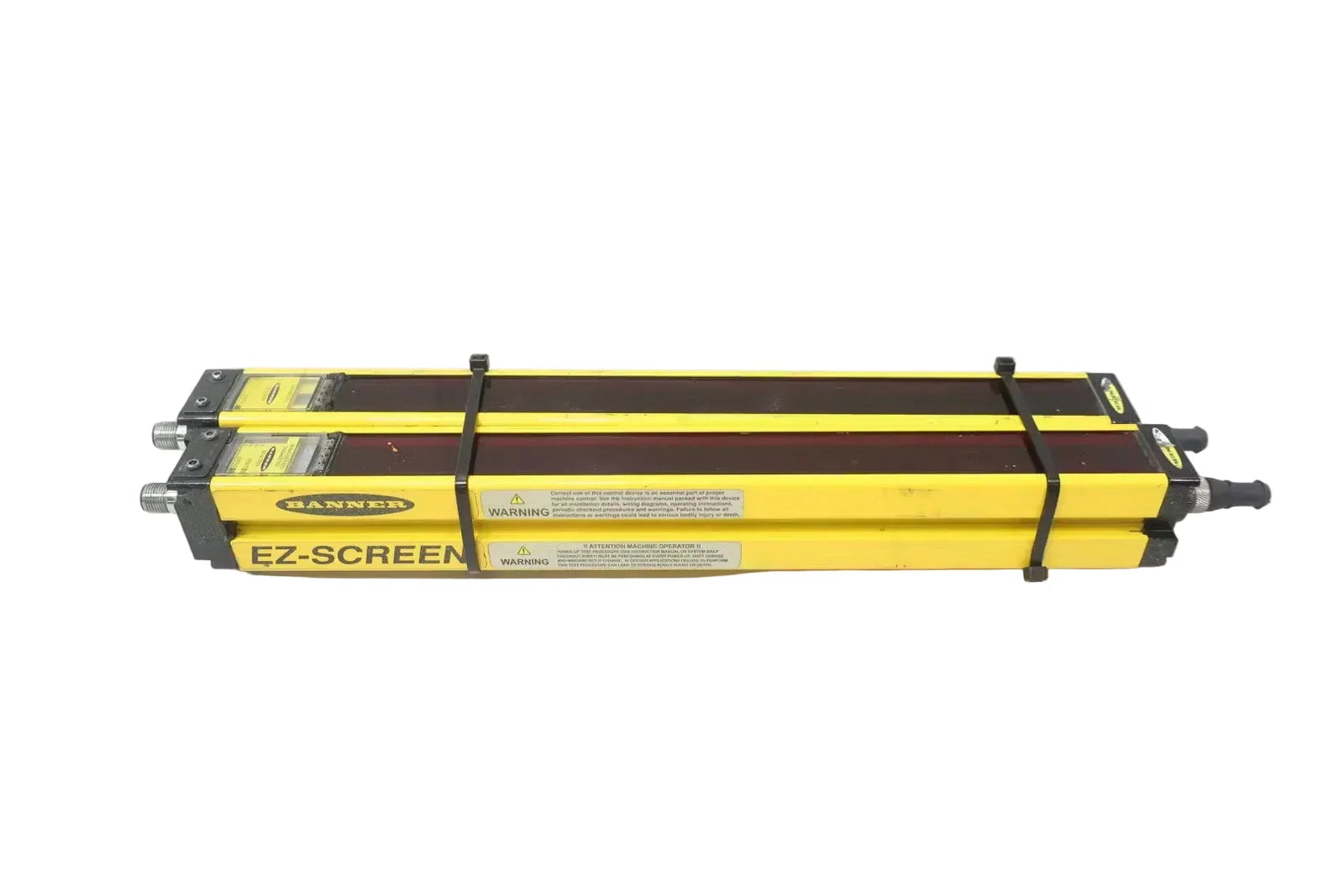

The Banner Engineering SLSCE30-300Q8 is a safety light curtain emitter designed for industrial machine guarding applications. It operates on a 24 VDC supply and provides a 300 mm defined protective height with a 30 mm resolution. This device is used to detect object entry into hazardous areas and support compliant personnel protection systems.

Technical Specifications

Information About  SLSCE30-300Q8

The SLSCE30-300Q8 is part of the EZ-SCREEN LS series from Banner Engineering and functions as an emitter within a safety light curtain system. It is built with a robust aluminum housing and is rated IP65 for use in industrial environments. The unit is designed to operate in Type 4 safety applications and meets international functional safety standards. It is commonly installed in manufacturing and automation systems where controlled access to hazardous zones is required.

Key Features:

• Type 4 safety device: Suitable for high-risk machine guarding applications

• 30 mm resolution: Enables reliable detection for personnel protection

• 300 mm defined area height: Covers compact hazardous access points

• Long operating range: Supports distances up to 18 meters

• 24 VDC supply voltage: Compatible with standard industrial control systems

• IP65 protection rating: Ensures durability in industrial environments

• Cascade capability: Allows integration with additional safety devices

The SLSCE30-300Q8 delivers the reliability and precision required for industrial safety light curtain systems.
