Description

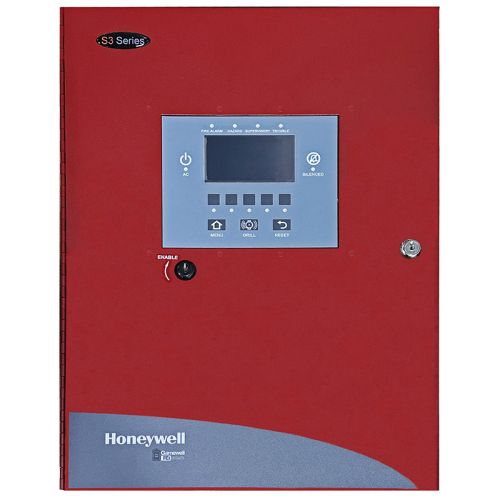

The Gamewell-FCI SLP-RED is an S3 Series addressable fire alarm control panel in a red cabinet with a 7A power supply and LCD-SLP display. It supports System Sensor or Apollo devices, one or two SLC loops, multiple NACs, and high-speed networking for scalable life safety applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Gamewell-FCI |
| Category |
Fire Alarm Systems |
| Part Number |
SLP-RED |
| Subcategory |
Fire Alarm Control Panels |
| Series |
S3 Series |
| Enclosure Color |
Red |
| Display |
4.3 in. (10.92 cm) color touchscreen LCD-SLP display |
| Power Supply |
7.0 A, 120/240 VAC input |
| SLC Loops |
1 loop standard, expandable to 2 loops |
| Device Protocols |
System Sensor (up to 318 devices per loop, 636 max) or Apollo (126 per loop, 252 max) |
| NAC Circuits |
4 Class B or 2 Class A, synchronized with System Sensor, Cooper-Wheelock, or Gentex |
| Networking |
ARCNET 625K baud, supports up to 122 nodes with S3/E3 Series, 64 with 7100 Series |
| Annunciator Support |
Up to 32 serial annunciators (LCD, LED-only, LED switch) |
| Communication Ports |
Ethernet port for programming, reports, and FocalPoint® connectivity |
| Relays |
Two fully programmable Form-C contacts for fire, trouble, supervisory |
| Legacy Support |
Automatic EEOL adjustment (1k–55k ohm) for retrofit compatibility |
| Certifications |
UL 864 (9th Edition), IBC Seismic Certified |
| Applications |
Fire alarm, pre-action, and deluge suppression |
| Special Features |
TimeCap retains date/time up to 48 hours without power |
| Dimensions |
4.50 × 14.50 × 20.15 in |
| Weight |
16 lbs |
Information About SLP-RED
The SLP-RED is part of Gamewell-FCI’s S3 Series, a microprocessor-based intelligent fire alarm platform built for small to mid-sized facilities. It includes a high-resolution color touchscreen display, integrated 7-amp power supply, and supports both System Sensor and Apollo addressable devices across one or two SLC loops. Networking is supported via high-speed ARCNET for up to 122 nodes, providing scalability and system-wide integration. With flexible NAC synchronization, extensive annunciator support, Ethernet connectivity, and legacy EEOL adjustment, the SLP-RED is engineered for adaptability in both new and retrofit installations.
Key Features:
- Addressable SLC support: Provides one loop expandable to two, handling up to 636 System Sensor or 252 Apollo intelligent devices for broad scalability.
- High-resolution color display: Features a 4.3-inch touchscreen LCD-SLP that delivers intuitive navigation and detailed system information.
- Integrated 7A power supply: Supplies filtered, regulated power to system components and notification appliances from either 120 or 240 VAC input.
- Flexible NAC circuits: Offers four Class B or two Class A NACs with selectable synchronization for System Sensor, Cooper-Wheelock, or Gentex appliances.
- Seamless networking capability: Supports ARCNET high-speed 625K baud networking with up to 122 nodes (S3/E3) or 64 nodes (7100 Series), using twisted-pair or fiber-optic connections.
- Legacy system compatibility: Automatic electronic end-of-line (EEOL) adjustment enables easy retrofit to existing audible/visual appliances with resistors from 1k to 55k ohms.
- Annunciator and communication options: Accommodates up to 32 annunciators and includes Ethernet connectivity for programming, reports, and FocalPoint® workstation integration.
- Programmable outputs: Provides two Form-C relays that can be configured for fire, trouble, and supervisory signaling.
- TimeCap feature: Retains system time and date for up to 48 hours during power outages without requiring a backup battery.
- Seismic certified: Meets IBC seismic certification standards for installation in earthquake-prone areas.
The SLP-RED delivers the reliability and precision required for intelligent fire detection, system networking, and mass notification in modern life safety applications.
