Description
The Gamewell-FCI NGA-LCD Network Graphic Annunciator is an intelligent, LCD-based display and control interface designed for monitoring and managing networked fire alarm systems. It provides detailed, real-time system information across multiple nodes within a Gamewell-FCI E3 Series network.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Gamewell-FCI |
| Category |
Fire Alarm Equipment |
| Part Number |
NGA-LCD |
| Subcategory |
Network Graphic Annunciator |
| Display Type |
Liquid Crystal Display (LCD), backlit |
| Function |
Networked fire alarm system monitoring and control |
| Network Compatibility |
Gamewell-FCI E3 Broadband Network |
| Power Input |
24 VDC nominal (from network interface or auxiliary power) |
| Current Draw |
150 mA (typical) |
| Communication Interface |
RS-485 or Ethernet (panel dependent) |
| User Controls |
Function keys, navigation buttons, key switch for secure access |
| Indicators |
LED indicators for alarm, supervisory, and trouble conditions |
| Enclosure Material |
Steel, red powder-coated finish |
| Mounting Type |
Wall or surface mount |
| Operating Temperature Range |
32°F to 120°F (0°C to 49°C) |
| Humidity Range |
Up to 93% RH, non-condensing |
| Compliance |
UL Listed; NFPA 72 compliant |
| Dimensions |
Approx. 14" H × 12" W × 3.5" D |
| Weight |
9.2 lb (4.17 kg) |

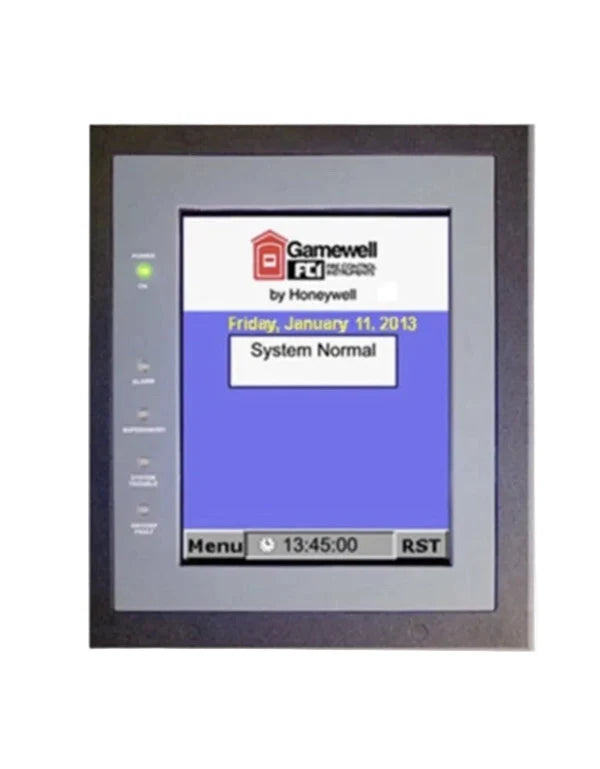

Information About NGA-LCD
The NGA-LCD is a Network Graphic Annunciator from Gamewell-FCI designed to operate as a remote display and control terminal for networked fire alarm control systems. Featuring a high-contrast liquid crystal display, it presents point-specific messages, event details, and system status in a user-friendly graphical format. The annunciator communicates via the Gamewell-FCI E3 Broadband Network, allowing it to monitor multiple control panels simultaneously. Housed in a durable metal enclosure, the NGA-LCD includes key switch security and programmable function buttons for system control. It is ideal for use in large facilities, campuses, or multi-building sites requiring centralized fire system supervision.
Key Features:
- High-Contrast LCD Display: Provides clear, detailed event and status information for networked fire systems.
- Networked Operation: Interfaces with multiple panels across the Gamewell-FCI E3 Broadband Network.
- Full System Control: Supports event acknowledgment, alarm silence, and system reset commands (when authorized).
- User-Friendly Interface: Displays point descriptions, time-stamped events, and alarm priorities.
- Secure Access: Includes key switch operation for authorized system control.
- Programmable Functions: Customizable keys allow specific operations or navigation commands.
- Rugged Enclosure: Built from heavy-gauge steel for secure wall mounting and durability.
- UL/NFPA Compliant: Meets all applicable fire alarm annunciation and control standards.
The NGA-LCD delivers the reliability and precision required for advanced network annunciation and system management in large-scale fire protection systems.
