Description

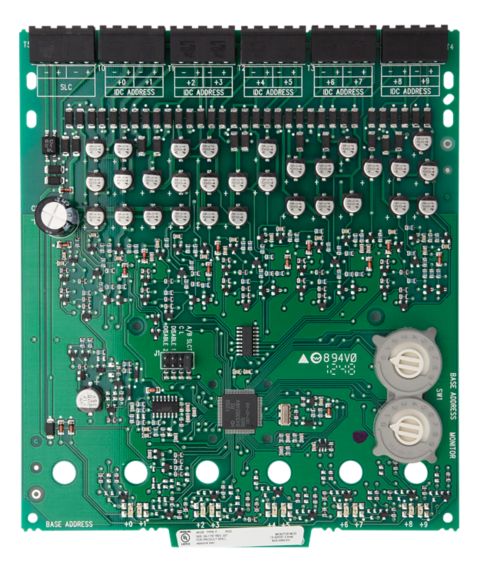

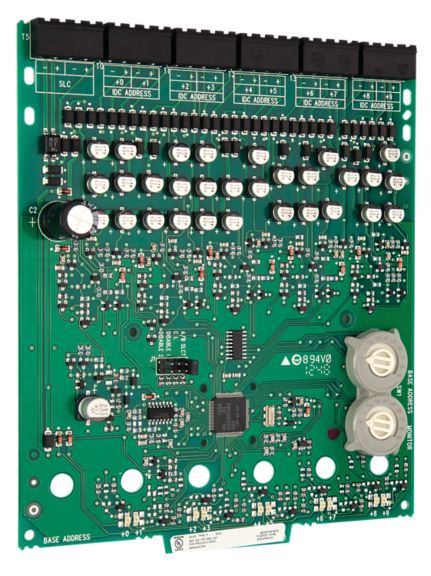

The Silent Knight SK-MON-10 is a ten-input intelligent monitor module designed for use with Honeywell Silent Knight® fire alarm control panels (FACPs). It provides reliable supervision and monitoring of multiple normally open contact devices, such as pull stations or waterflow switches. Each input on the SK-MON-10 functions independently, allowing efficient integration of conventional devices into addressable fire alarm systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Silent Knight by Honeywell |
| Category |
Fire Alarm System Components |
| Part Number |
SK-MON-10 |
| Subcategory |
Addressable Monitor Module |
| Product Type |
Intelligent Ten-Input Monitor Module |
| Compatibility |
6700, 6808, 6820, 6820EVS Fire Alarm Control Panels |
| Number of Circuits |
10 Class B or 5 Class A Supervised Inputs |
| Operating Voltage |
15 – 32 VDC |
| Standby Current |
3.5 mA maximum |
| Initiating Device Circuit Voltage |
10.2 VDC maximum |
| Initiating Device Circuit Current |
240 µA maximum |
| Initiating Device Circuit Wiring Resistance |
1500 Ohms maximum |
| Wiring Gauge |
12–18 AWG |
| LED Indicators |
Individual LED for each input |
| Addressing Method |
Rotary Switches |
| Mounting Options |
Up to 2 modules per IDP-ACB cabinet |
| Certifications |
UL Listed, NFPA 72 Compliant |
| Dimensions |
6.8" × 5.8" × 1.25" (17.3 × 14.7 × 3 cm) |
| Weight |
1 lb |
Information About SK-MON-10
The SK-MON-10 is part of the Honeywell Silent Knight IntelliKnight® series, engineered to connect multiple initiating devices to intelligent fire alarm systems. This ten-input monitor module supports ten Class B or five Class A supervised contact inputs, ensuring flexibility in system design. It uses a common SLC input shared across all modules while maintaining independent addressing and operation for each circuit. The SK-MON-10 is fully compatible with Silent Knight FACPs such as the 6700, 6808, 6820, and 6820EVS, making it a dependable choice for scalable fire alarm installations.
Key Features
- Ten Supervised Inputs: Supports ten Class B or five Class A monitored contact circuits for device integration.
- Independent Addressing: Each input has its own address for precise identification and system supervision.
- Class A/B Compatibility: Allows use in both Style D (Class A) and Style B (Class B) wiring configurations.
- LED Status Indicators: Individual LEDs provide clear visual feedback for each monitored input.
- Rotary Address Switches: Simplifies installation and configuration with quick address setup.
- Compact Modular Design: Enables mounting of one or two modules per IDP-ACB cabinet.
- Conventional Device Support: Monitors 4-wire smoke detectors, pull stations, and waterflow switches.
- UL Listed and NFPA 72 Compliant: Meets fire system safety and reliability standards.
The SK-MON-10 delivers the reliability and precision required for professional-grade fire alarm supervision and monitoring applications.
