Description
The SK-5235 is a remote annunciator designed to interface with the SK-5208 Fire Alarm Control Panel. It enables full system control and monitoring from a remote location, with real-time display of alarm, trouble, and supervisory conditions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Silent Knight |
| Category |
|
| Part Number |
SK-5235 |
| Subcategory |
Fire Alarm Control |
| Display |
2-line, 16-character LCD |
| LED Indicators |
Alarm, Trouble, Supervisory, System Status |
| Voltage Requirement |
24 VDC |
| Current Draw (Standby) |
30 mA |
| Current Draw (Alarm) |
50 mA |
| Max Wiring Distance |
1500 ft (457.2 m) |
| Dimensions (W x H x D) |
7.19" x 5" x 1.13" (18.26 x 12.7 x 2.86 cm) |
| Operating Temperature |
32°F to 120°F (0°C to 49°C) |
| Compatible Control Panel |
SK-5208 |
| Number Supported |
Up to 6 per SK-5208 |
| Operator Key |
OPR key included |
| Certifications |
UL Listed, MEA 429-92-E, CSFM 7165-0559:137 |
| Weight |
1.00 lbs (0.45 kg) |
Information About SK-5235

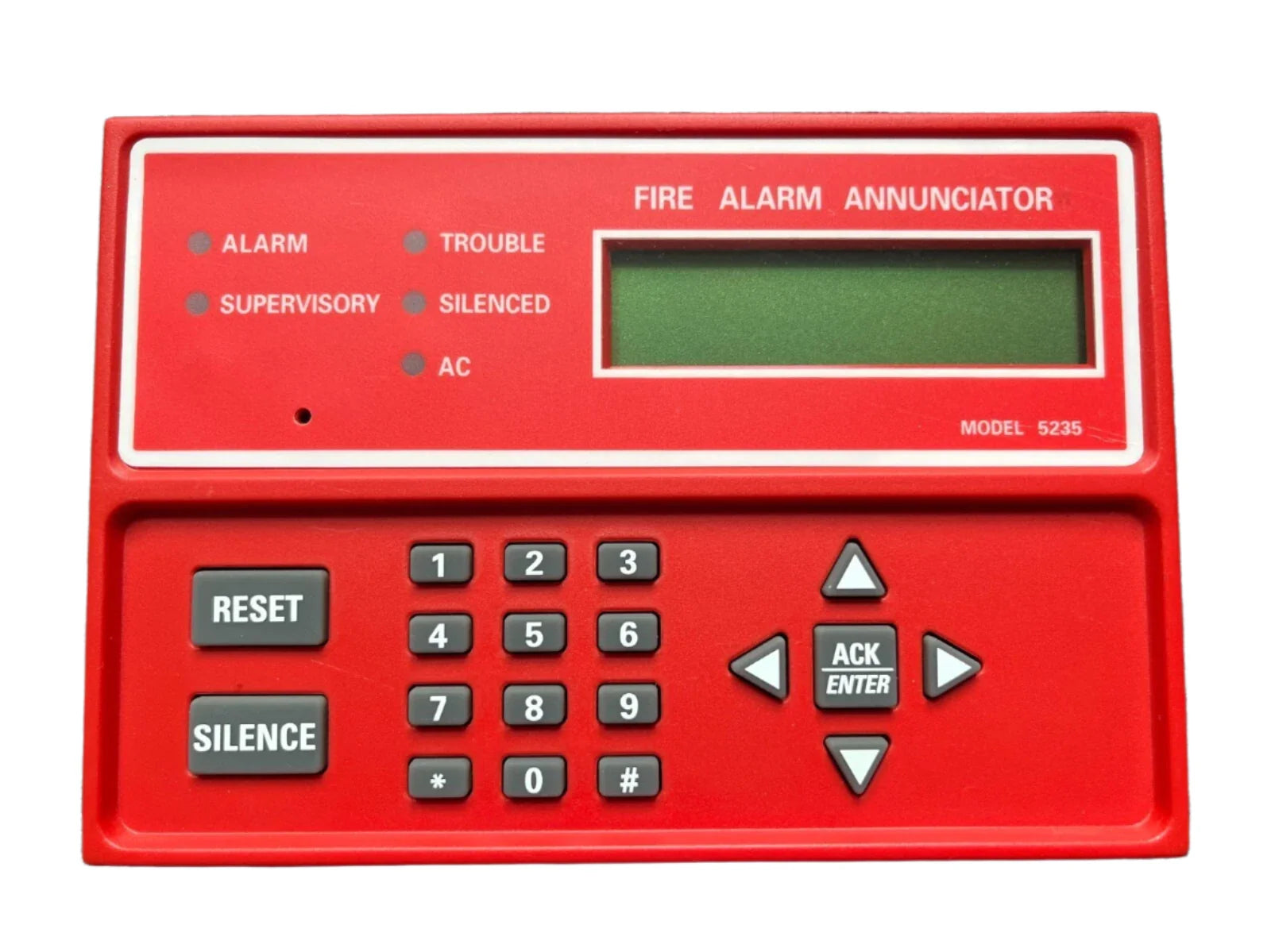

The SK-5235 is a compact remote annunciator compatible with the Silent Knight SK-5208 fire alarm control panel. It features a 2-line, 16-character LCD screen and multiple LED indicators to display real-time system status including alarms and troubles. Each unit is supervised by the main panel and supports full programming and user operations via the included OPR key. The SK-5208 can accommodate up to six SK-5235 units, each installable up to 1500 feet away from the control panel.
Key Features:
- LCD Display: 2-line, 16-character screen for clear event visualization and messages.
- Multi-Condition Indication: Displays Alarm, Trouble, Supervisory, and System Status via LEDs and LCD.
- Supervised Operation: Each annunciator is individually monitored by the SK-5208 FACP.
- Remote Installation: Supports wiring distances up to 1500 feet for flexible placement.
- Full System Control: Allows user operations and system programming identical to onboard interface.
- Multiple Units Support: Up to six annunciators can be connected to a single SK-5208 panel.
- Dedicated Operator Key: Ships with OPR key for user-level interactions (does not open panel door).
- Matched Design: Mimics the appearance and function of the control panel’s built-in annunciator.
The SK-5235 delivers the essential remote access and monitoring capabilities required for effective fire alarm management.
