Description

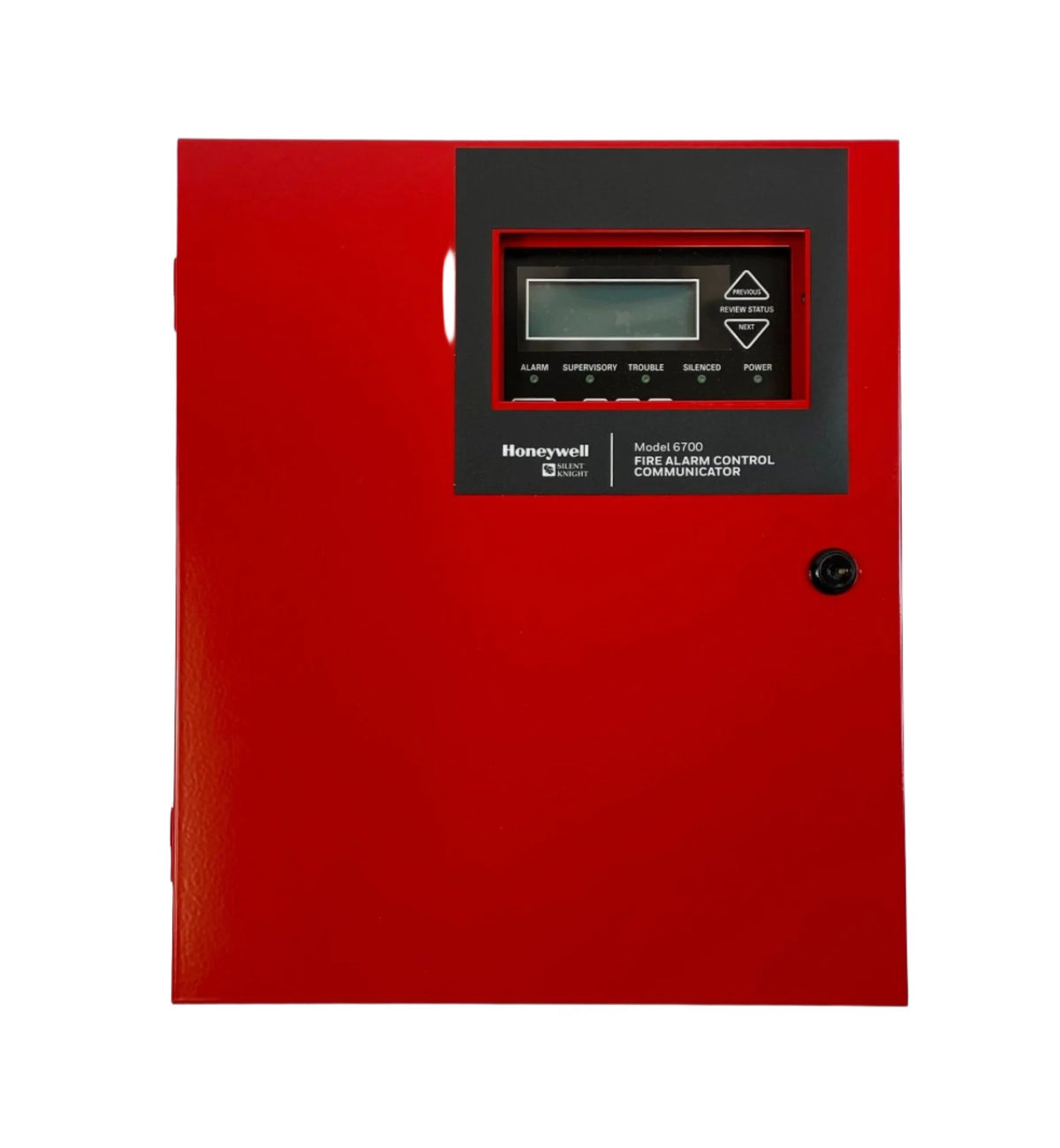

The Honeywell SK-6700 is an intelligent addressable fire alarm control panel designed for scalable protection in mid-size commercial and institutional buildings. Supporting up to 100 addressable points and built-in dual path communication, it delivers robust fire protection with wired and wireless detection options.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
SK-6700 |
| Subcategory |
Addressable Control Panels |
| SLC Capacity |
1 loop, up to 100 addressable points |
| Panel Networking |
Up to 17 panels (copper or fiber-optic) |
| Communication |
Built-in IP and POTS; optional cellular
|
NAC Circuits
|
2 × 2.5 A power-limited |
| USB Port |
Yes (for local programming) |
| Wireless Support |
SWIFT® wireless device compatible |
| Remote Annunciators |
Supports up to 8 |
| Display |
4×20 LCD (80-character annunciator) |
| Keypad |
Large user-friendly keypad |
| Programming Tools |
Jumpstart, HFSS, SKST |
| Firmware |
Field-upgradeable |
| Certifications |
UL S2766, CSFM 7165-0559:0501, FDNY COA# 6250 |
| Weight |
15lb |
Information About SK-6700
The SK-6700 features one built-in SLC loop supporting up to 100 addressable detectors and modules, and allows networking with up to 17 panels using copper or fiber-optic connections. It includes a built-in dual-line communicator (POTS + IP), and supports optional cellular side-cars for enhanced backup. The panel is SWIFT® wireless ready, enabling hybrid installations, and includes a USB interface for rapid on-site programming. It also supports two 2.5 A NAC circuits, eight remote annunciators, and field-upgradeable firmware. The 4×20 LCD display and large keypad improve usability, while software tools like Jumpstart, HFSS, and SKST simplify setup.
Key Features:
- Supports Up to 100 Addressable Points: One SLC loop supports both detectors and modules.
- Panel Networking: Connect up to 17 panels via copper or fiber for system expansion.
- Dual Path Communication: Built-in IP and POTS for primary and backup transmission.
- Optional Cellular Side-Cars: Offers mobile redundancy with two side-car module options.
- Wireless SWIFT® Capability: Enables flexible deployment of wireless detectors.
- 2 NAC Circuits: Two 2.5 A outputs for notification appliances.
- USB Programming Port: Onboard USB interface for local programming access.
- Field-Upgradeable Firmware: Easily update software without replacing hardware.
- Remote Annunciator Support: Up to eight annunciators can be connected to extend panel access.
- Intuitive User Interface: 4×20 character display with 80-character annunciator and full keypad.
The SK-6700 offers scalable addressable detection and flexible connectivity in a feature-rich control panel platform for advanced fire protection.
