Description

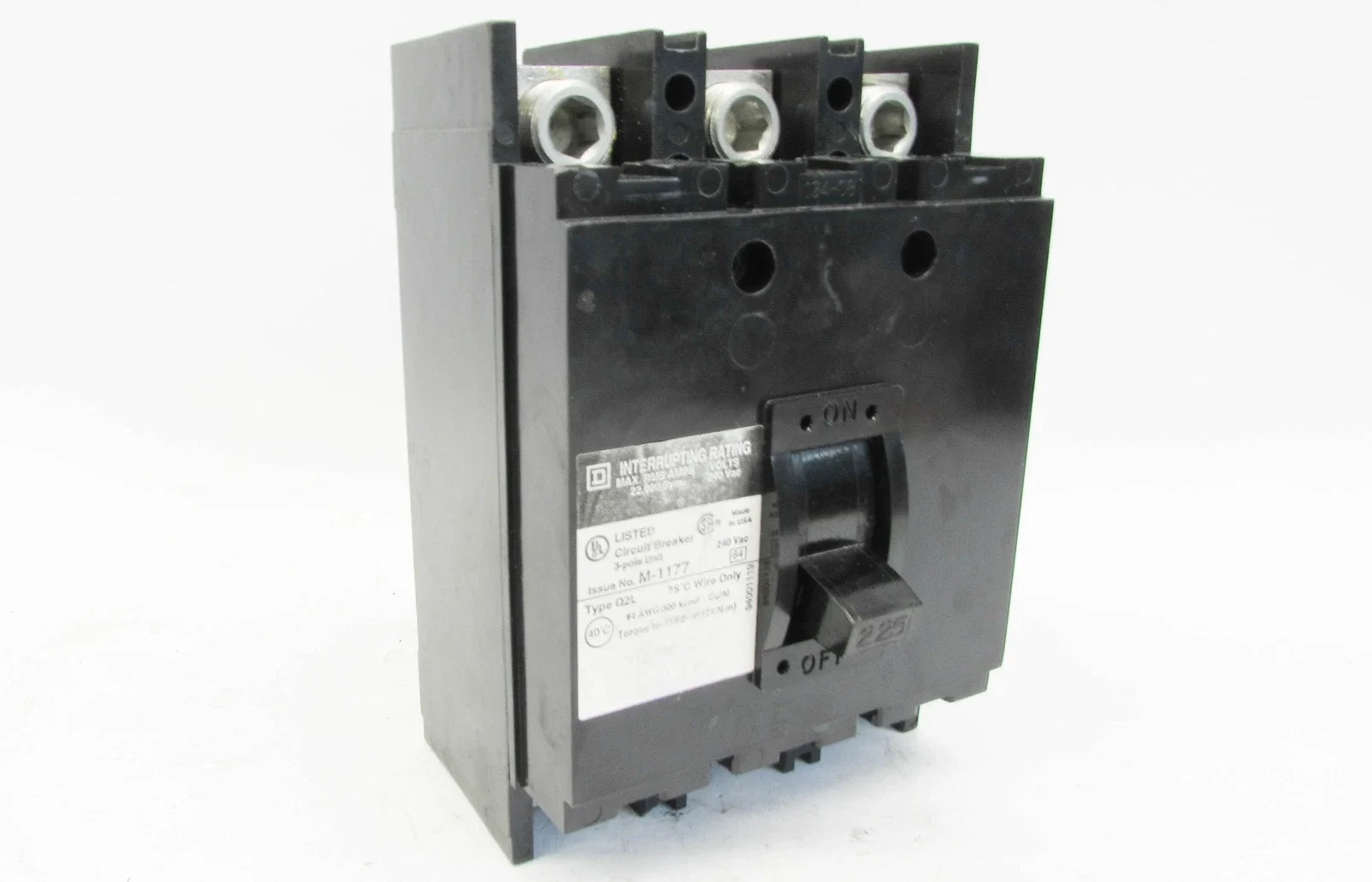

The Square D Q2M32255700 is a molded case circuit breaker designed to provide dependable overcurrent protection in low-voltage power distribution systems. This 3-pole breaker is rated for 225 A at 240 VAC and features long-time, instantaneous, and ground fault trip functions. It is intended for bolt-on mounting in commercial and industrial electrical panels.

Technical Specifications

Information About Q2M32255700

The Q2M32255700 is a circuit breaker from the Square D Q2 Series, engineered for reliable protection against overloads and short circuits. It utilizes a thermal-magnetic trip system with LTI (Long-Time, Instantaneous) functionality to ensure fast and accurate fault response. The breaker is designed for bolt-on installation, providing secure mechanical and electrical connections within compatible panelboards. It is commonly used in three-phase electrical systems where controlled interruption and consistent performance are required.

Key Features:

• Thermal-Magnetic Trip Unit: Provides reliable overload and short-circuit protection.

• 3-Pole Configuration: Designed for three-phase electrical systems.

• High Current Rating: Rated for 225 A continuous operation.

• Voltage Rating: Supports applications up to 240 VAC.

• Interrupting Capacity: Rated at 10 kAIC at 240 VAC for fault protection.

• Bolt-On Mounting: Ensures secure installation in compatible panels.

• Q2 Series Design: Compatible with Square D Q2 series distribution equipment.

The Q2M32255700 delivers the reliability and precision required for protecting power distribution circuits in commercial and industrial environments.
