Description

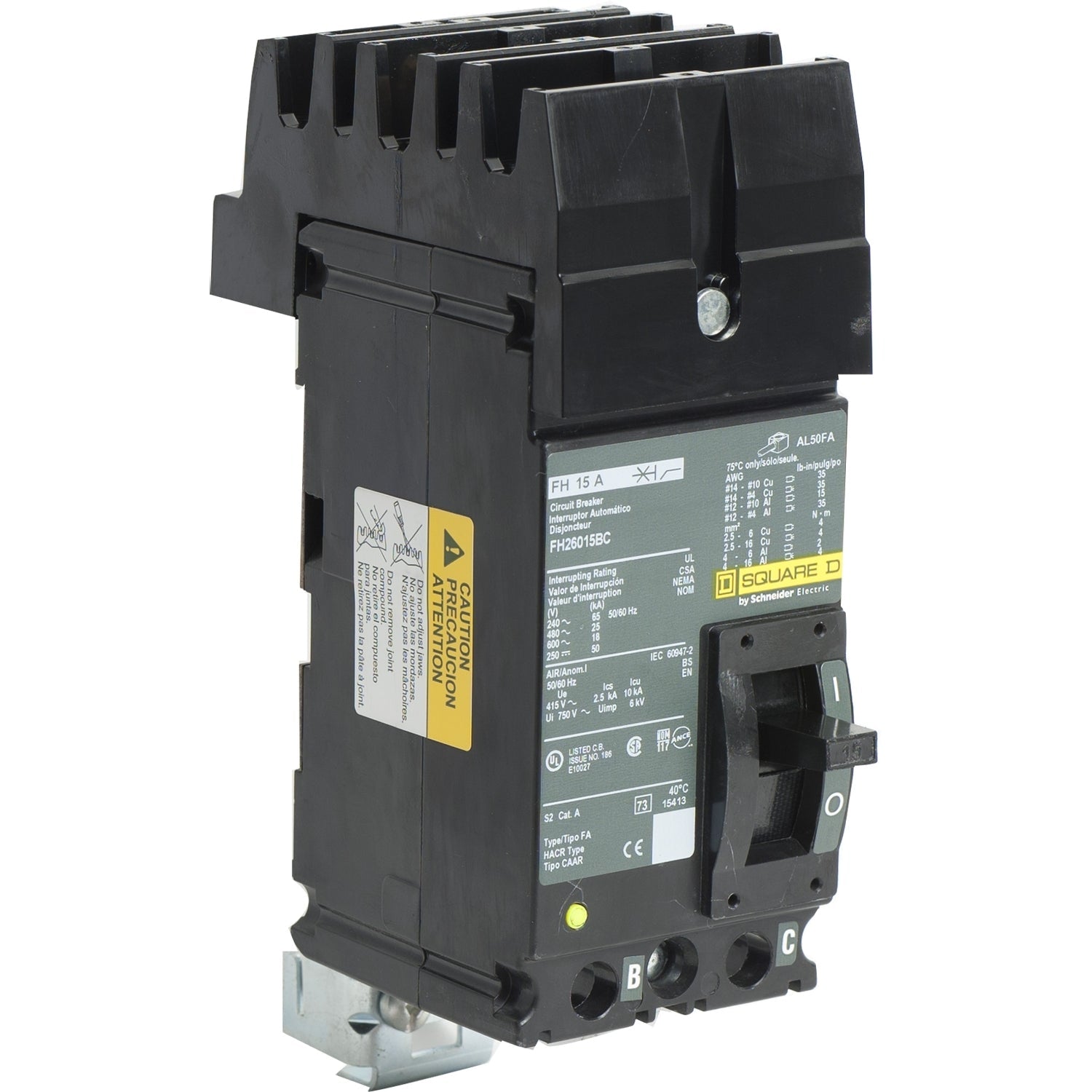

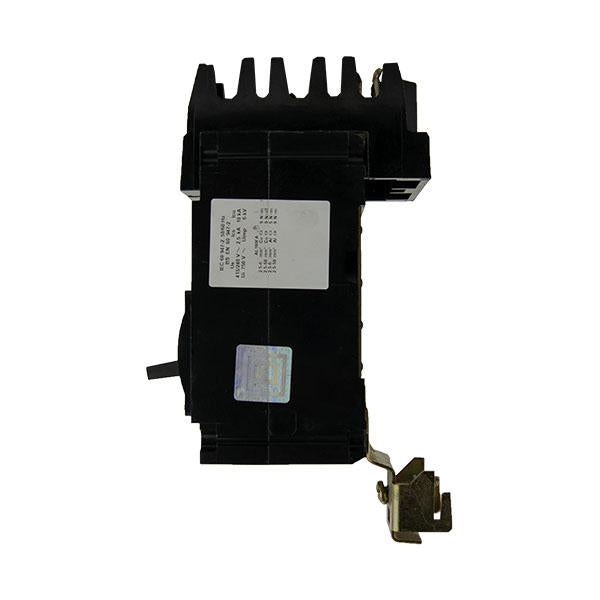

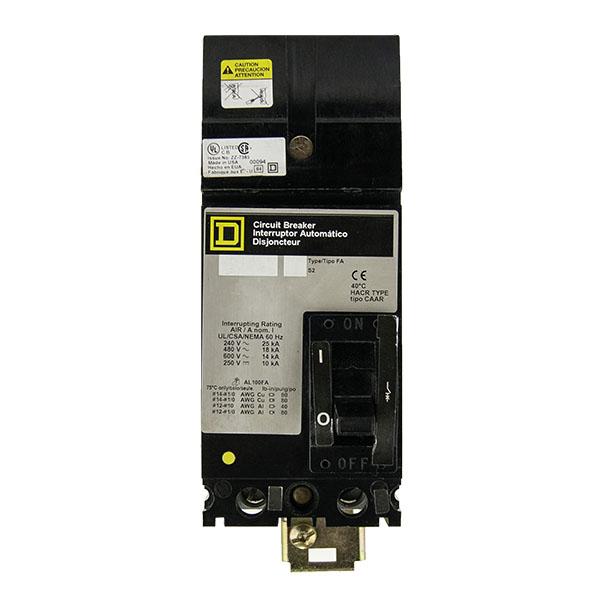

The Square D FH26015BC is a molded case circuit breaker designed to provide dependable overcurrent protection in commercial and industrial electrical systems. This two-pole unit supports 15 A operation at up to 600 VAC, offering stable performance in demanding load environments. The FH26015BC ensures consistent protection through its thermal-magnetic trip design and high interrupting capacity.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Square D |
| Category |
Circuit Breaker |
| Part Number |
FH26015BC |
| Subcategory |
Molded Case |
| Amperage Rating |
15 A |
| Voltage Rating |
600 VAC / 250 VDC |
| Poles |
2 |
| Phase |
1-Phase |
| Interrupting Rating |
25 kA @ 480 V |
| Trip Unit Type |
Thermal-Magnetic (Long-Time & Instantaneous) |
| Frame Type |
F-Frame |
| Mounting Style |
I-Line Style Plug-In |
| Electrical Connections |
Line: I-Line plug-in / Load: lug terminals |
| Wire Size Compatibility |
14–4 AWG AL/CU |
| Magnetic Hold Current |
275 A |
| Certifications |
UL, CSA, NOM, IEC, CCC, CE |
| Ambient Temperature Rating |
40°C |
| Dimensions (H × W × D) |
6.4 in × 3 in × 4.13 in |
| Country of Origin |
Mexico |
| Weight |
6 lb |
Information About FH26015BC
The FH26015BC is part of Square D’s FH-series I-Line breakers engineered for standardized plug-in mounting within compatible distribution systems. It incorporates an F-Frame construction that supports long-time and instantaneous trip functions for effective overload and fault response. The breaker accommodates both line plug-in and load-lug connections, providing installation flexibility across a wide range of panelboard configurations. Its certifications and high interrupting rating make it suitable for applications requiring compliance with multiple international electrical standards.
Key Features:
- Thermal-Magnetic Trip Unit: Provides long-time overload protection and instantaneous short-circuit interruption.
- High Interrupting Rating: 25 kA at 480 V ensures dependable fault clearing in high-energy systems.
- I-Line Plug-In Mounting: Enables rapid installation and secure connection within I-Line panelboards.
- Two-Pole Configuration: Supports protection across B and C phase conductors in single-phase systems.
- Wide Wire Range: Accepts 14–4 AWG aluminum or copper conductors for flexible wiring compatibility.
- Rated for Harsh Conditions: Operates reliably at a 40°C ambient temperature environment.
- Certified for Global Use: Meets UL, CSA, NOM, IEC, CCC, and CE compliance requirements.
- F-Frame Construction: Ensures a compact profile while maintaining mechanical and electrical robustness.
The FH26015BC delivers the reliability and precision required for overcurrent protection in commercial and industrial power distribution.
