Description

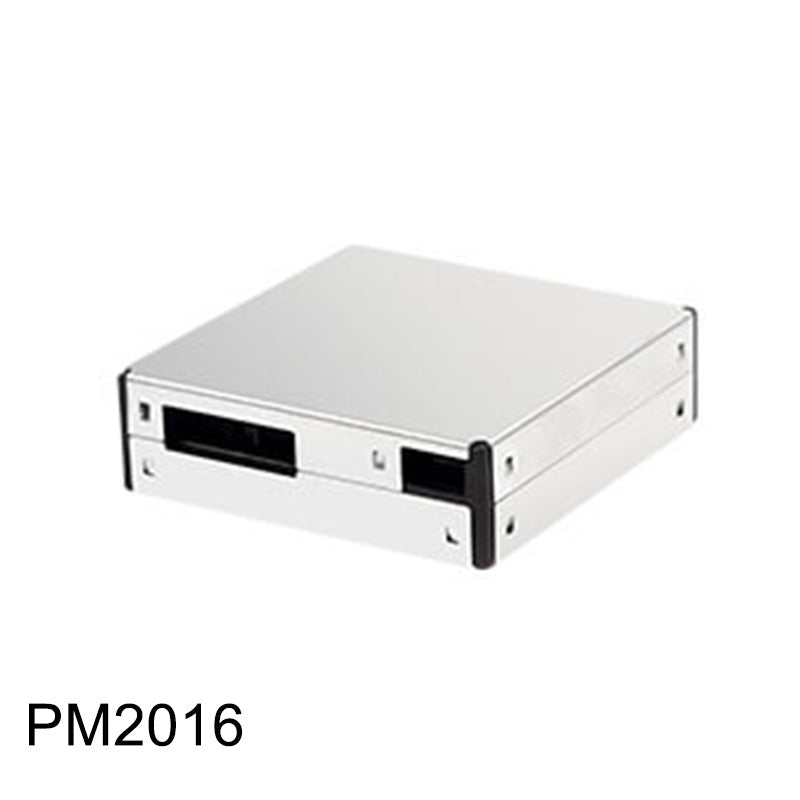

PM2016 High Performance PM Sensor is designed an anti-dust structure laser particle sensor with PM1.0, PM2.5, PM10 output. This sensor is often used as an direct replacement to a sensirion SPS30 sensor.
It measures and calculates the suspending particle number which is within unit volume on the air exactly and output particle mass concentration μg/m3 directly via mathematical algorithm and scientific calibration.
Features
- The smallest size of available measurement: 0.3μm
- Real-time output particle mass concentration in μg/m3 is available
- VOC, temperature and humidity measuring function is reserved
- High accuracy, high sensitive and quick response
- Small size, compact structure, easy to install
- Same side air inlet and outlet
- Anti-dust structure
Models
PM2016 - high performance anti-dust laser PM sensor
PM2016 Specifications
- Measured particle range: 0.3μm~10μm
- Measurement range: 0~1,000μg/m³
- Accuracy: PM1.0/PM2.5: 0~100μg/m³ : ±10μg/m³ , 101~500μg/m³ : ±10% of reading | PM10: 0~100μg/m³ : ±25μg/m³ ,101~500μg/m³: ±25% of reading (GRIMM, 25±2℃, 50 ±10%RH)
- Time to first reading: ≤ 8 seconds
- Response time: 1s
- Working condition: -10°C ~ 60°C, 0-95%RH
- Storage condition: -40°C ~ 70°C, 0-95%RH (non-condensing)
- Power supply: DC 5V±0.1V, ripple wave＜100mV
- Working current: ≤80mA
- Signal output: UART_TTL/IIC, 3.3V (5V compatible)
- Dimensions: W40.7*H40.7*D12.2 mm
Warranty
- 90 days - See CO2Meter Terms and Conditions
