Description

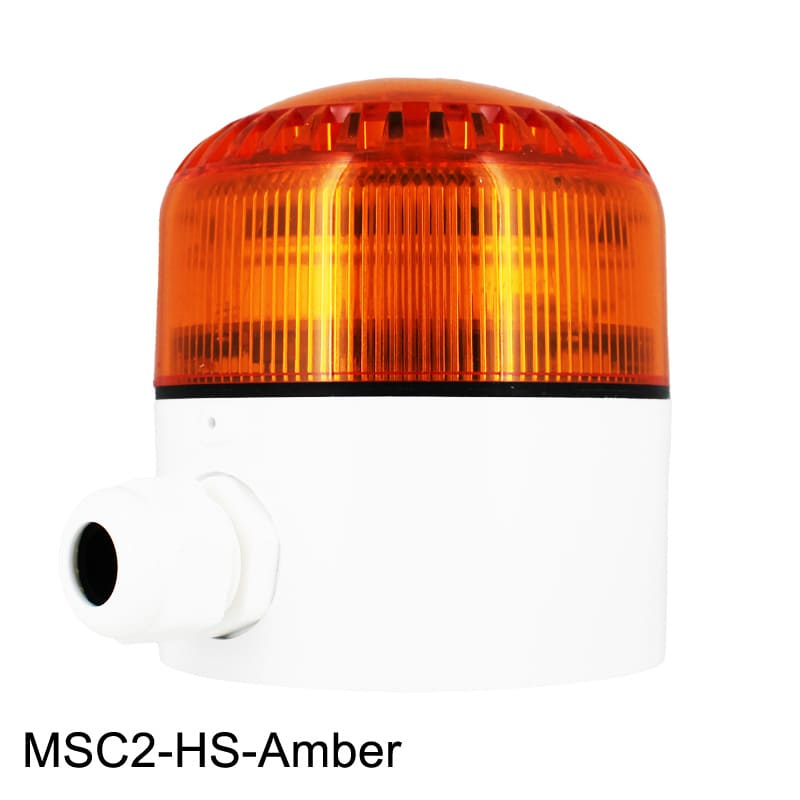

The Fixed Multi-Gas Detector Alarm Safety Horn Strobe (Amber Lens) is designed to provide an instant audible and visual indication of a potential gas leak in large or noisy areas to meet code compliance and protect against gas leaks.
This alarm safety strobe is compatible only with the corresponding Fixed Multi-Gas Detector Series (MSC2) Digital Multi-Gas Controller (DGC-06), or the Combustible Fixed Gas Detector Series (PX2).
Features
- Base amber, flashing light 98dB alerts
- 24 VDC
- Protection class: IP65
- Temperature range: -40°C to +55°C
- Easy and clean install, no additional wiring is required
- Meets code compliance for OSHA, NFPA, NBIC, and CGA
- Instant strobe alarm indication when AL 1,2, or 3 is triggered
Works with
- Fixed Multi-Gas Detector Series (MSC2)
- Digital Multi-Gas Controller (DGC-06)
- Combustible Fixed Gas Detector Series (PX2).
Models
- MSC2-HS-Amber: White/Amber - Includes 1 horn strobe, 10 ft. Ethernet cable, 1 safety amber lens
- MSC2-HS-Clear: White/Clear - Includes 1 horn strobe, 10 ft. Ethernet cable, 1 safety clear lens
Specifications:
- Power Supply: 10-60 VDC
- Power Consumption: Max. 35 mA at 24 VDC
- Humidity: 15-95% RH non-condensing
- Working Temperature: -13°F to -158°F (-25°C to 70°C)
- Pressure Range: Atmospheric ±10 %
- Enclosure: Material Base ABS, lens PC
- Protection Class: IP54
- Mounting: Fixed/Wall Mount Installation
- Cable Entry Ca.: 12mm diameter
- Wire Connection: Screw-type terminals, min. 0.28 mm2, max. 2.5 mm2
- Power: supplied by POE Ethernet cable (included)
- Weight: 0.33 lbs.
- Dimensions: 3.66 x 3.66 in
Warranty
- 1 year - See CO2Meter Terms and Conditions
Documents
