Overview

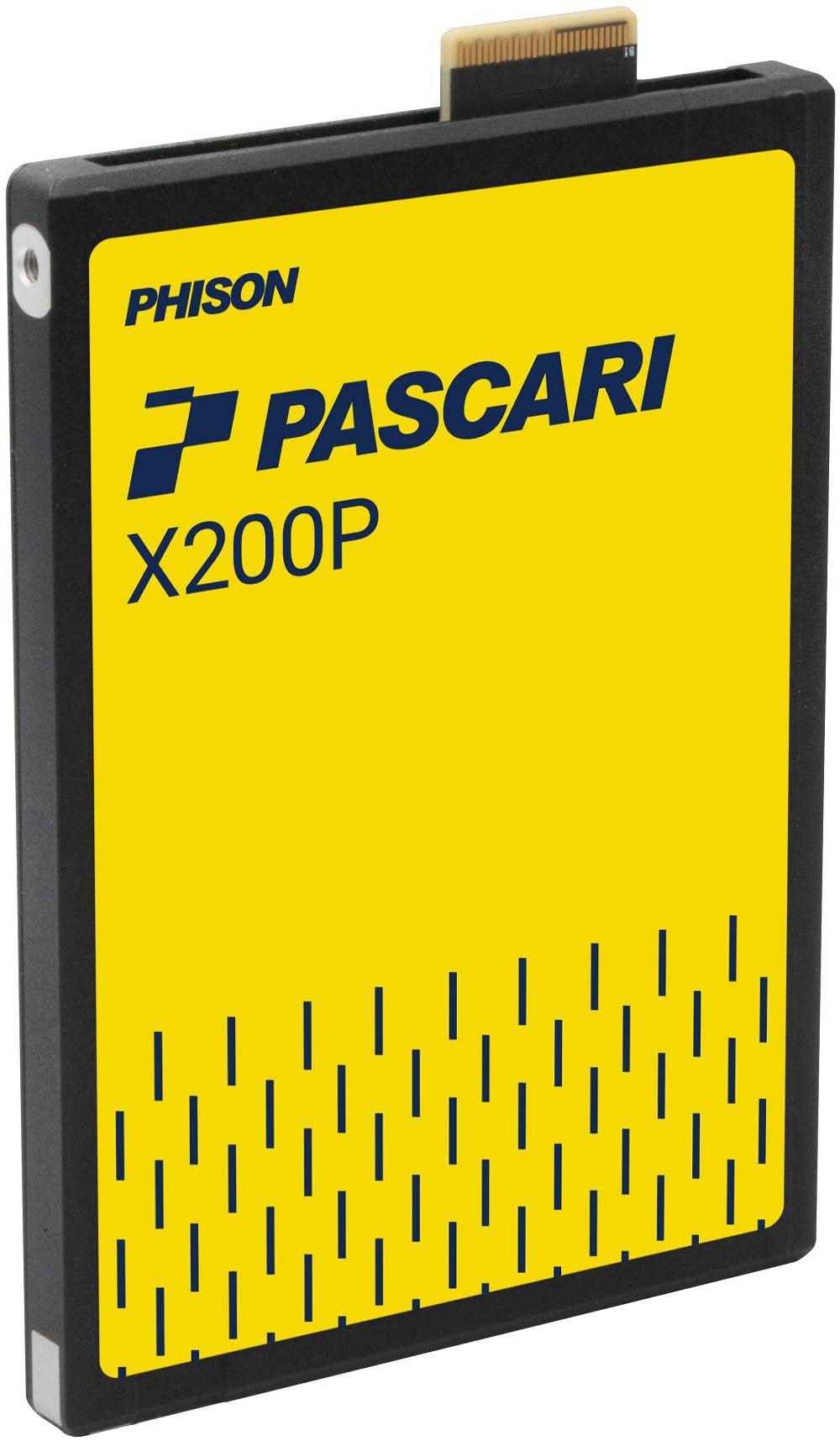

 PHISON XX208H033T84P224T0910 Pascari X200P 3840 GB U.2 15mm Dual Port PCIe Gen5x4 Opal Security SSD

Specifications

Model Number:XX208H033T84P224T0910

Brand:   PHISON

Alt Part Number(s):XX208H033T84P224T0910

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XX208H033T84P224T0910

Capacities: 3.84TB

Form Factor: U.2 15mm

PCIe Interface:
PCIe Gen5x4
Dual port 2x2 lanes
PCIe AER (Advanced Error Reporting)

Compliance:
PCI Express Base Specification Rev. 5.0
NVM Express Base Specification Rev. 2.0
NVM Express Management Interface Rev 1.2
PCI Express SFF-8639 Module Specification Revision 5.0, Version 0.7

Sequential Read: up to 14,800MB/s

Sequential Write: up to 8,600MB/s

Random Read: up to 3,300K IOPS

Random Write: up to 320K IOPS

128K Active Read (Avg. RMS): 17W

128K Write (Avg. RMS): 21W

4KB Active Read (Avg. RMS): 17W

4KB Active Write (Avg. RMS): 22W

4KB 70/30 Random READ/WRITE (Average RMS, W): 18W

Idle Power: 5W

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read

DWPD: 1

TBW: 7.008TB

Operating Temperature: 0°C - 70°C with specified airflow

Non-Operating Temperature: -40°C - 85°C

Shock (Operating): 500G, 2ms

Shock (Non-Operating): 1000G, 0.5ms

Vibration (Operating): 2.17 Grms (7 - 800 Hz)

Vibration (Non-Operating): 16.3 Grms (10 - 2000 Hz)

Drop: 80cm, 6 surfaces

Bending: 50N, 60s

Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Product Ecological Compliance: RoHS compliant

LBAF: 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes

Namespaces: 128

Dual Port: Supported

Reservation: Supported

Metadata Protection: Supported

Thermal Throttling: Supported

Power Loss Protection: Supported

Hardware AES-XTS 256-bit Encryption: Supported

SMBus Support: Yes

*
