Overview

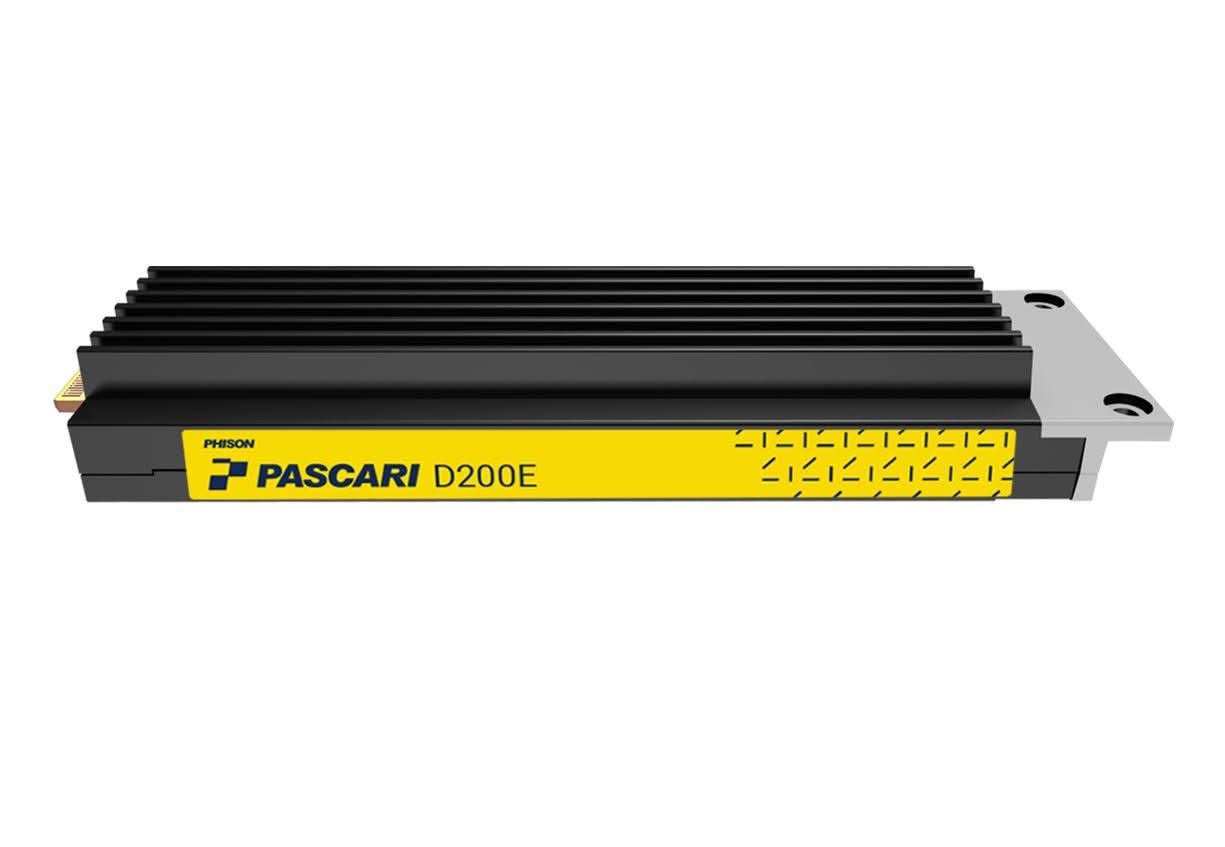

PHISON DP20AH031T60E312T0410 Pascari D200E 1.60TB EDSFF E1.S PCIe Gen5x4 Single Port ISE SSD
Specifications
Model Number:DP20AH031T60E312T0410
Brand: PHISON
Alt Part Number(s):DP20AH031T60E312T0410
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:DP20AH031T60E312T0410
Capacity: 1.6TB
Form Factor: EDSFF E1.S
Interface: PCIe 5.0 x4
Compliance:
PCI Express Base Specification Rev. 5.0
NVM Express Base Specification Rev. 2.0
NVMe Management Interface Rev. 1.2
Datacenter NVMe SSD Specification V2.0
SNIA SFF-TA-1009 R3.1.1 /1006 R1.5 /1020 Rev1.1 /1023 Rev 1.0
Sequential Read (MB/s): 14,000
Sequential Write (MB/s): 4,200
4K Random Read (IOPS): 2,350K
4K Random Write (IOPS): 390K
Active Power (128K Read, W): 17
Active Power (128K Write, W): 14
Active Power (4KB Read, W): 15
Active Power (4KB Write, W): 15
Power (70/30 Read/Write, W): 13
Idle Power (W): 4.9
DWPD: 3
TBW: 8.76TB
UBER: < 1 sector per 10^18 bits read
MTBF (million hours): 2.5
Operating Temp (°C): 0 - 70
Non-Operating Temp (°C): -40 - 85
Shock (Operating): 1000G, 2ms
Shock (Non-Operating): 1500G, 0.5ms
Vibration (Operating): 1.52mm/20G (20~2000 Hz)
Vibration (Non-Operating): 3.08Grms (7~800Hz)
Drop: 80cm
Bending: ≤ 50N
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Ecological Compliance: RoHS, REACH
Feature Support:
128 Namespaces
Single Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
SMBus
End-to-End Data Path Protection
TCG Opal 2.04
Hardware AES-XTS 256-bit Encryption
Sanitize
*
