Description

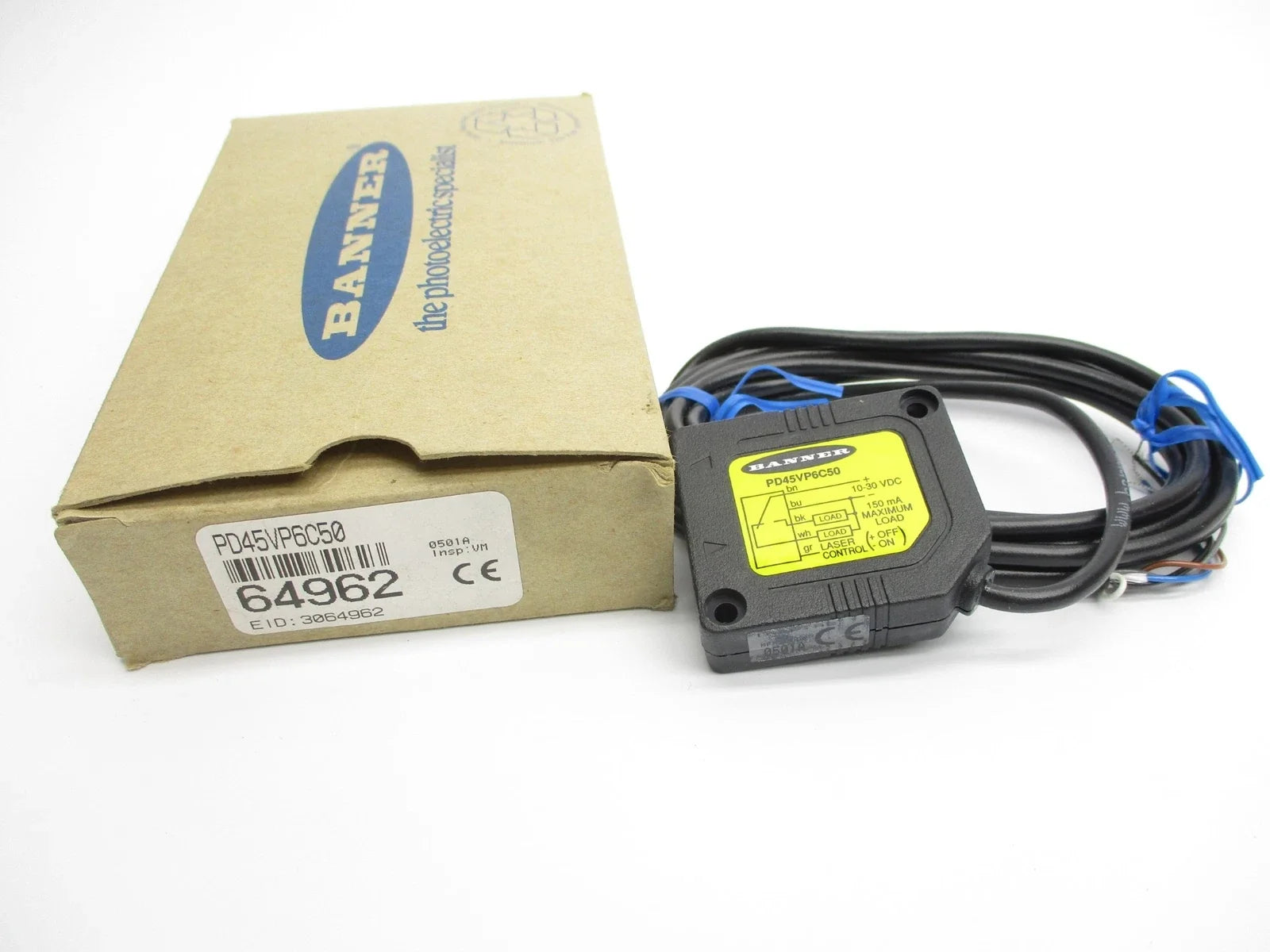

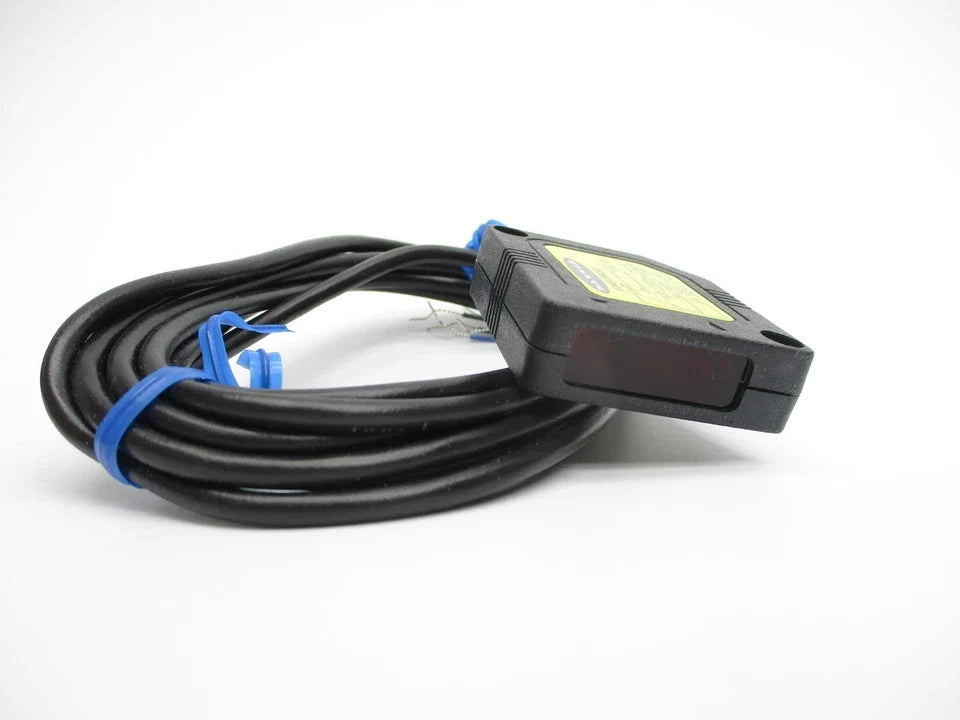

The Banner Engineering PD45VP6C50 is a convergent-mode photoelectric proximity sensor designed for precise short-range object detection. It operates at a fixed 50 mm focal point using a visible red Class 2 laser and provides complementary PNP outputs. The sensor is intended for industrial automation applications requiring fast response and stable detection performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors & Switches |
| Part Number |
PD45VP6C50 |
| Subcategory |
Photoelectric |
| Series |
PD45 PicoDot® |
| Sensing Mode |
Convergent Proximity |
| Sensing Distance |
50 mm |
| Light Source |
Visible Red Laser, 650 nm |
| Laser Classification |
Class 2 |
| Supply Voltage |
10–30 VDC |
| Output Type |
Complementary PNP |
| Output Configuration |
Solid-State, Light/Dark Operate |
| Response Time |
0.2 ms |
| Repeatability |
50 µs |
| Housing Material |
Thermoplastic |
| Lens Material |
Acrylic |
| Environmental Rating |
IP54 |
| NEMA Rating |
NEMA 4X |
| Operating Temperature |
-10°C to +45°C |
| Connection Type |
2 m (6.5 ft) Attached Cable |
| Indicators |
LED Status Indicators |
| Country of Origin |
USA |
| Weight |
0.26 lbs |
Information About PD45VP6C50
The PD45VP6C50 is part of the Banner Engineering PD45 Series PicoDot® sensors, developed for close-range proximity sensing with controlled detection zones. It utilizes convergent laser technology to focus detection at a specific distance while minimizing background interference. The sensor operates on a 10–30 VDC supply and features complementary PNP solid-state outputs for light and dark operate modes. Its thermoplastic housing, IP54 protection rating, and attached cable support reliable operation in standard industrial environments.
Key Features:
-
Convergent sensing technology: Fixed-field detection optimized for precise proximity sensing.
-
50 mm sensing distance: Designed for consistent detection at close range.
-
Visible red Class 2 laser: Provides a small, clearly defined sensing spot at the focal point.
-
Complementary PNP outputs: Supports light and dark operate output configurations.
-
Fast output response: 0.2 ms switching time for high-speed detection applications.
-
Wide supply voltage range: Operates from 10 to 30 VDC input power.
-
Integrated LED indicators: Visual status indication for power and output state.
The PD45VP6C50 delivers the reliability and precision required for close-range industrial photoelectric proximity sensing applications.
