Description

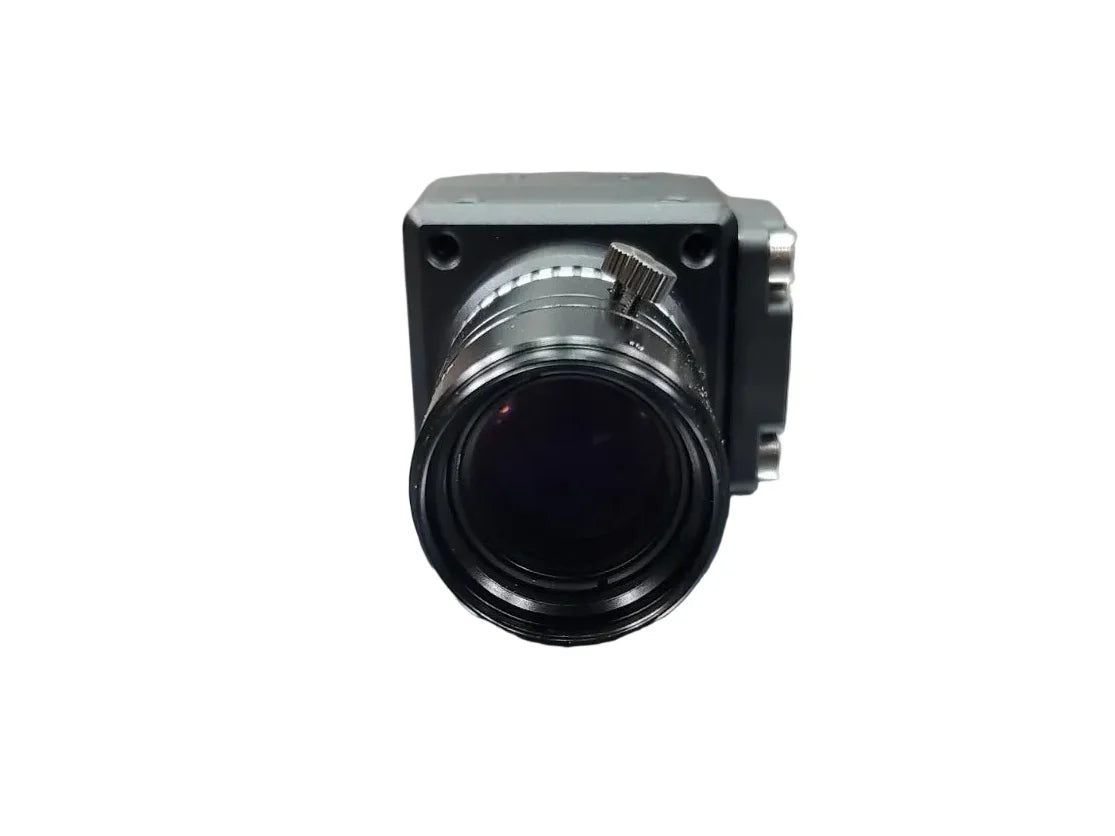

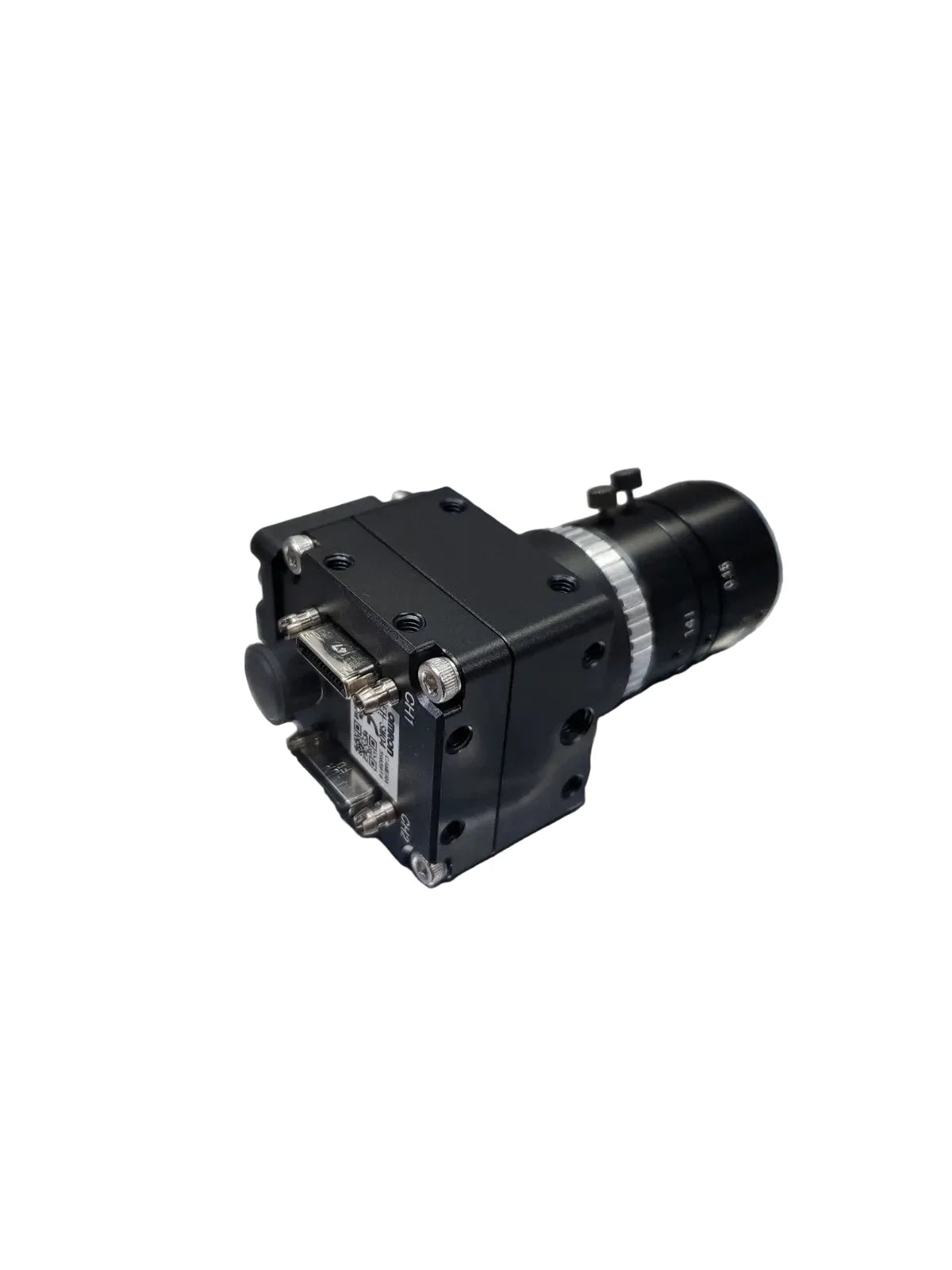

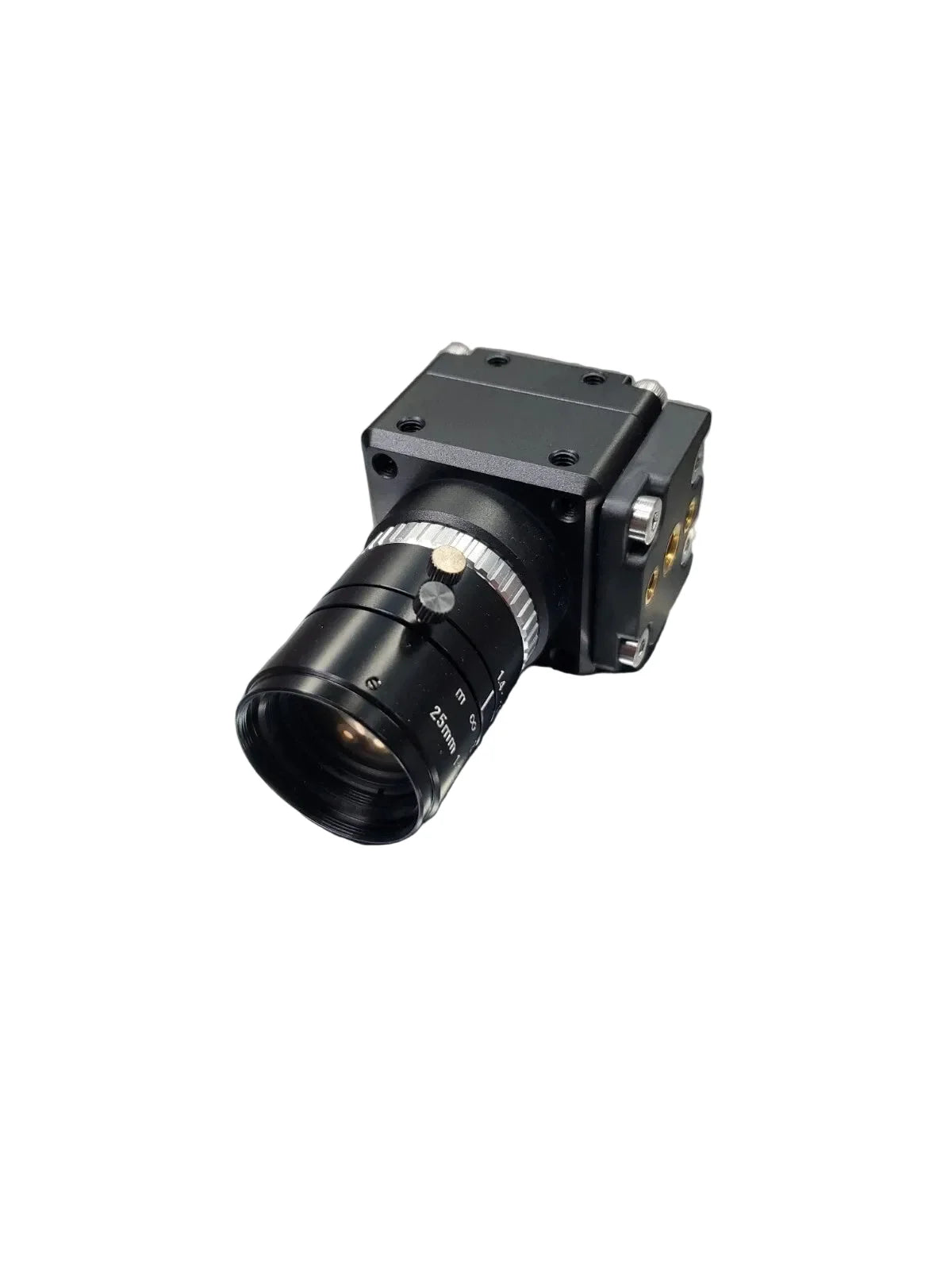

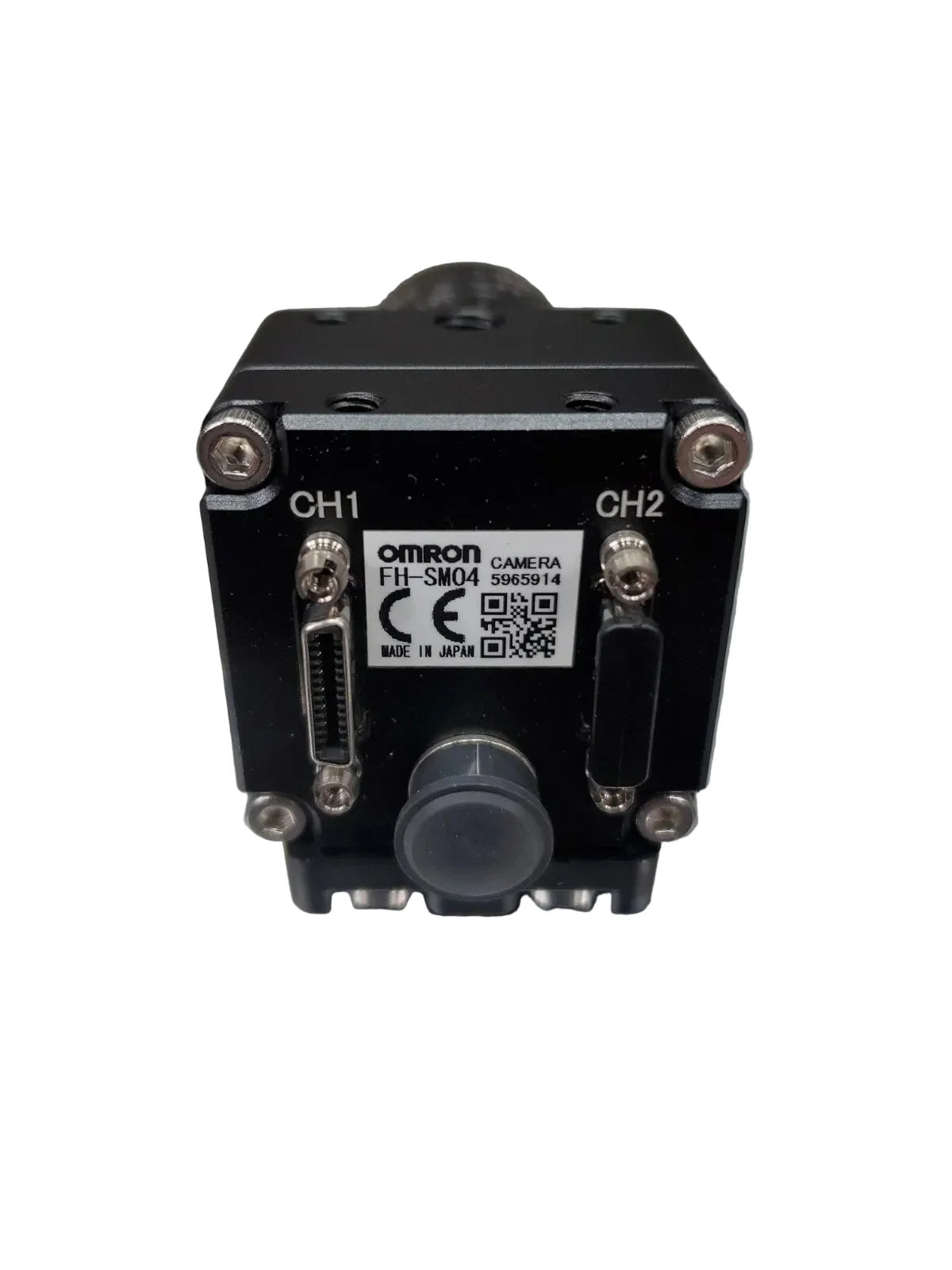

The Omron FH-SM04 is a high-speed monochrome industrial vision camera designed for precision machine vision, inspection, measurement, and quality control applications. Equipped with a 4 MP CMOS global shutter image sensor and capable of capturing up to 118 frames per second, it delivers outstanding image quality for high-speed production lines and demanding automation environments.
Technical Specifications
| Condition |
New / Surplus Available |
| Brand |
Omron |
| Part Number |
FH-SM04 |
| Category |
Industrial Automation and Controls |
| Subcategory |
Machine Vision Camera |
| Product Type |
Imaging Camera |
| Series |
FH |
| Camera Type |
Monochrome |
| Image Sensor |
CMOS, Global Shutter |
| Sensor Format |
1 Inch |
| Resolution |
4.0 MP (2040 × 2048 Pixels) |
| Frame Rate |
118 fps |
| Pixel Size |
5.5 µm |
| Lens Mount |
C-Mount |
| Lens Included |
No |
| Scan Type |
Area Scan |
| Protection Rating |
IP40 |
| Mounting Type |
Chassis Mount |
| Termination Style |
Cable with Connector |
| Operating Temperature |
0°C to +40°C |
| Dimensions (W × H × D) |
40 × 47 × 40.5 mm |
| Weight |
0.243 lbs |
Information About FH-SM04
The FH-SM04 is part of Omron's FH Series machine vision camera family, engineered for advanced industrial inspection systems. It features a 4 MP monochrome CMOS sensor with a 1-inch optical format and a global shutter for distortion-free image acquisition of fast-moving objects. The camera supports C-Mount lenses, enabling flexible optical configurations for a wide range of applications. Designed for use with Omron FH vision controllers, the FH-SM04 provides high-speed image capture and accurate inspection for quality assurance, positioning, and measurement tasks.
Key Features:
- FH Series industrial vision camera
- 4 MP monochrome CMOS image sensor
- Global shutter technology
- Up to 118 fps image acquisition
- 2040 × 2048 pixel resolution
- 1-inch optical sensor format
- C-Mount lens interface
- Compact lightweight industrial design
- Designed for high-speed inspection and machine vision
- Compatible with Omron FH vision systems
The FH-SM04 delivers high-speed, high-resolution imaging for demanding industrial automation and quality inspection applications.
