Description

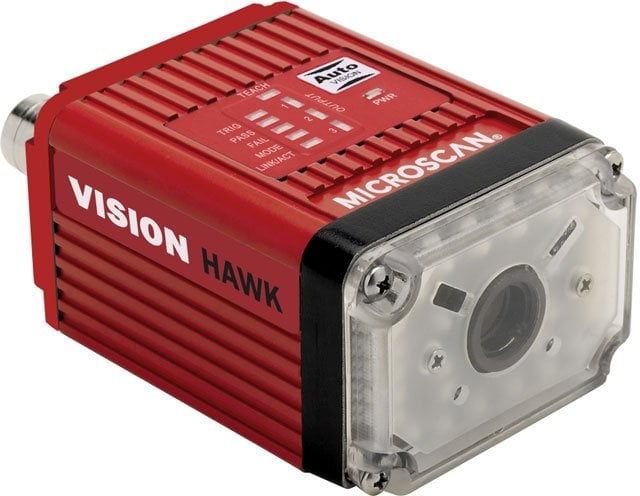

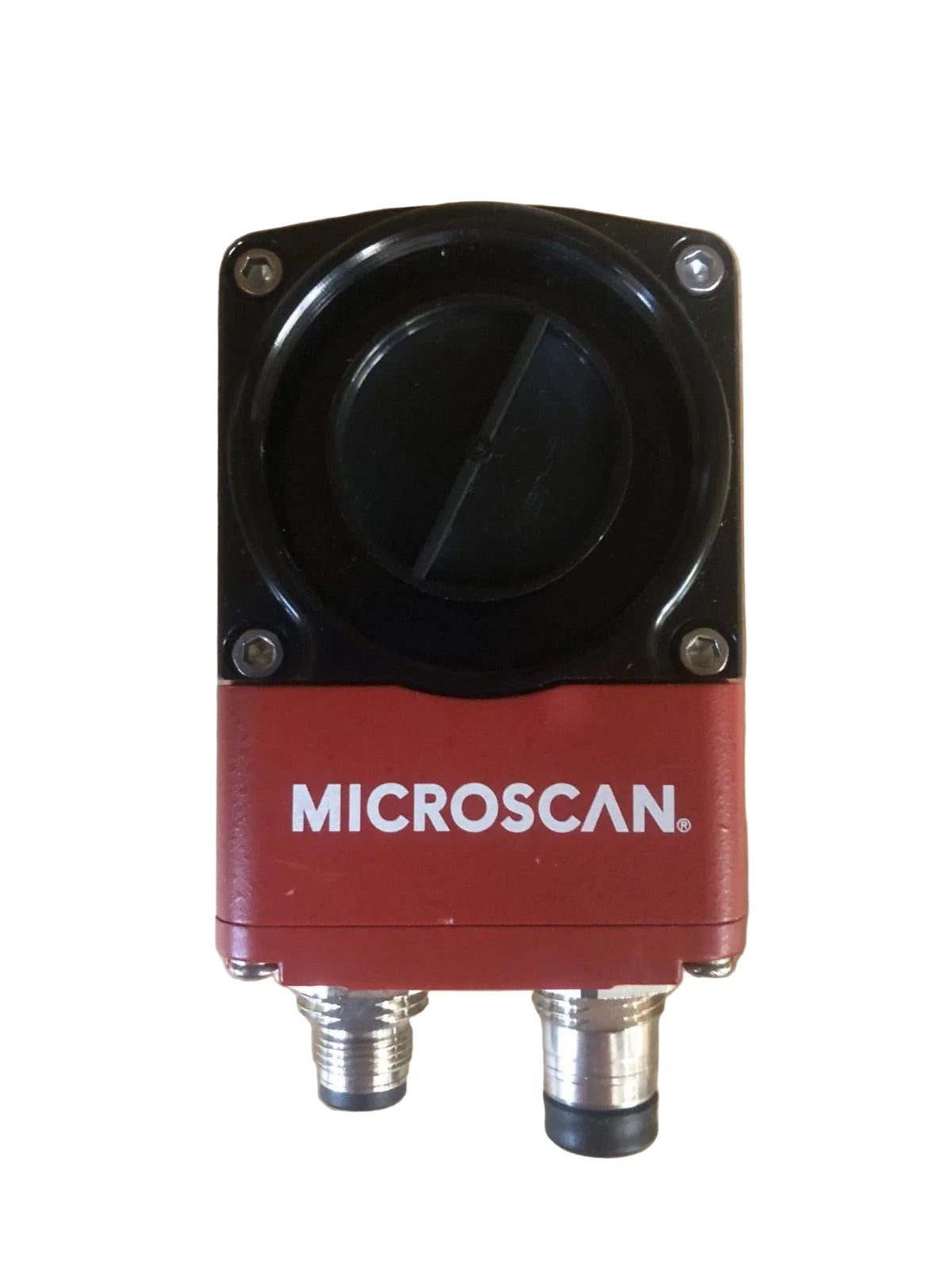

The Omron GMV-6800-1002G Vision Hawk Fixed Barcode Scanner is a high-performance industrial smart camera designed for 1D and 2D barcode reading in automation, logistics, and manufacturing environments. Equipped with a liquid lens autofocus system and high-output LED illumination, it captures barcodes at distances from 1 inch to infinity with exceptional clarity. The device features RS-232 and Ethernet interfaces, housed in a durable IP65/67-rated die-cast aluminum enclosure, ensuring reliable operation in demanding industrial settings.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron Microscan |
| Category |
Barcode and Vision Systems |
| Part Number |
GMV-6800-1002G |
| Subcategory |
Fixed Barcode Scanners |
| Series |
Vision HAWK Series |
| Type |
Smart Camera / Fixed-Mount Barcode Scanner |
| Sensor Type |
CMOS/CCD Progressive Scan |
| Resolution |
WVGA (752×480) / SXGA (1280×960) |
| Focal Range |
1" (33 mm) to ∞ (Liquid Lens Autofocus) |
| Light Source |
High-Output LEDs + 655 nm Laser Aimer |
| Light Source Life |
50,000 hours @ 25°C |
| Symbologies Supported |
Data Matrix, QR, Micro QR, Aztec, PDF417, GS1 Databar, Code 39, Code 128, UPC/EAN, and Postal Codes |

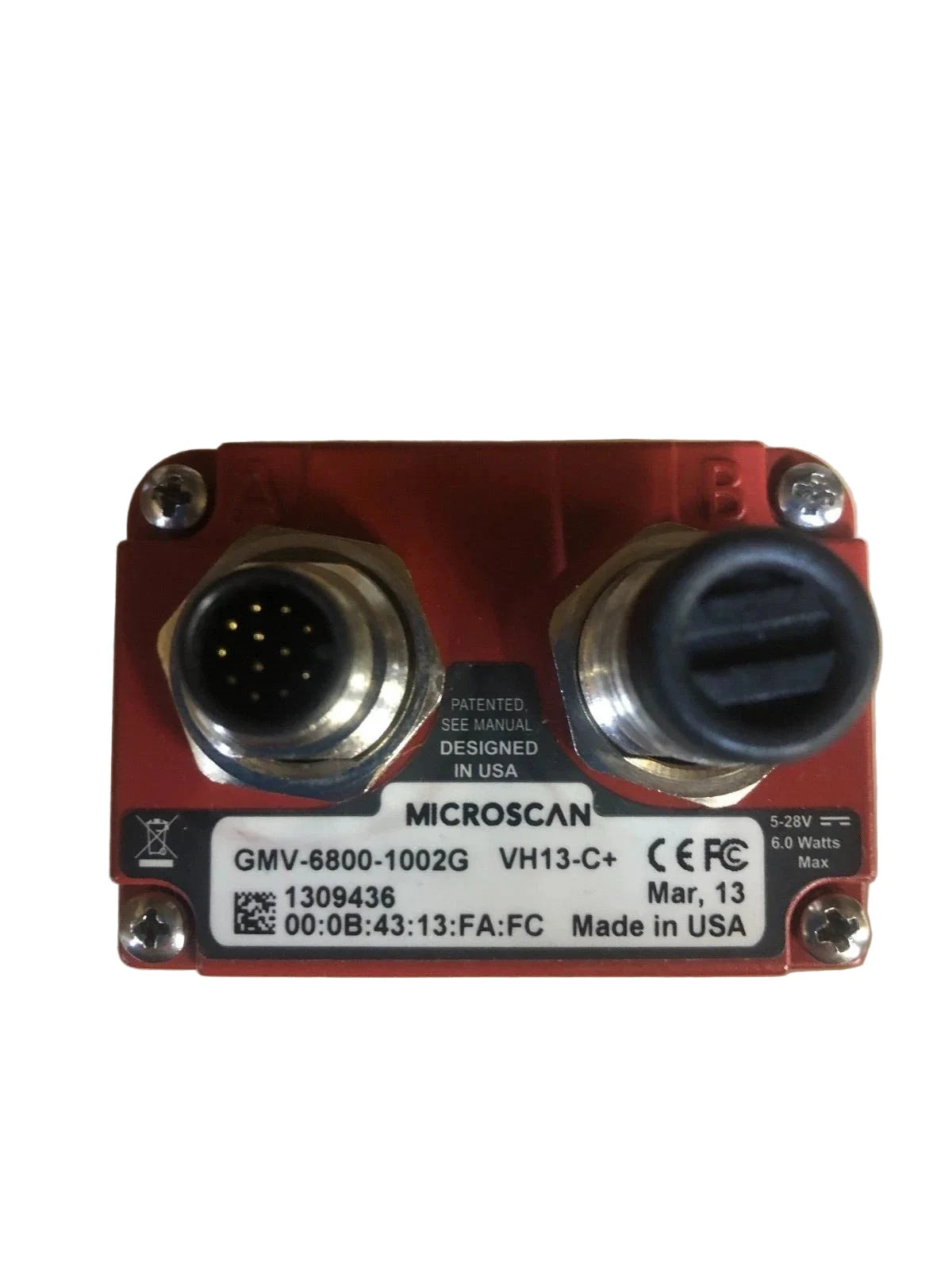

| Communication Interfaces |
RS-232, Ethernet (TCP/IP, EtherNet/IP) |
| Protocols Supported |
Point-to-Point, XON/XOFF, TCP/IP, EtherNet/IP (Visionscape) |
| I/O Connections |
3 Discrete Outputs, 1 Learn/Trigger Input (Optoisolated) |
| Power Supply |
5–28 VDC |
| Power Consumption |
105 mA @ 24 VDC (typical) |
| Enclosure Rating |
IP65/67 (Die-Cast Aluminum Housing) |
| Mounting |
Fixed / Bracket Mount |
| Indicators |
Pass, Fail, Trigger, Mode, Power, Network Activity, I/O |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-29°C to 70°C |
| Humidity |
Up to 90% (non-condensing) |
| Dimensions (H × W × D) |
1.59 × 2.27 × 3.79 in (40.5 × 57.6 × 96.3 mm) |
| Weight |
10 oz (280 g) |
| Certifications |
CE, UL/cUL, FCC, CDRH, CB, BSMI, RoHS/WEEE |
| ISO Certification |
ISO 9001:2008 |
| Application |
Industrial Barcode Reading, Traceability, Inspection |
| Country of Origin |
Japan |
Information About GMV-6800-1002G
The GMV-6800-1002G belongs to the Omron Microscan Vision HAWK Series, a family of fixed-mount barcode scanners and smart cameras developed for precision code reading and inspection. It integrates autofocus optics, CMOS/CCD imaging, and advanced decoding algorithms to support a full range of 1D, stacked, and 2D symbologies, including Data Matrix, QR, and PDF417. Designed for rugged applications, the unit features a die-cast aluminum housing rated to IP67, providing dust and moisture resistance. With flexible RS-232 and Ethernet connectivity, software-adjustable shutter speed, and multiple I/O control options, the GMV-6800-1002G provides powerful performance for automated identification and traceability systems across packaging, electronics, and material handling industries.
Key Features:
- Advanced Imaging System: Progressive-scan CMOS or CCD sensor with WVGA/SXGA resolution options for high-quality barcode capture.
- Liquid Lens Autofocus: Adjustable focal range from 1 inch (33 mm) to infinity for dynamic scanning distances.
- Comprehensive Code Support: Reads 1D, 2D, stacked, and postal symbologies including Data Matrix, QR, PDF417, and GS1 Databar.
- Rugged Industrial Housing: Die-cast aluminum enclosure rated IP65/67 for harsh environments.
- Flexible Communication Options: RS-232 or Ethernet (TCP/IP, EtherNet/IP, Visionscape) for integration with control systems.
- Integrated Illumination: High-output LEDs ensure consistent lighting for barcodes on varying surfaces.
- User Feedback Indicators: LED status for power, pass/fail, trigger, and network activity.
- Wide Power Range: Operates on 5–28 VDC with low current draw for efficient system integration.
The GMV-6800-1002G delivers the reliability and precision required for industrial barcode reading, part identification, and automated inspection applications.
