Description

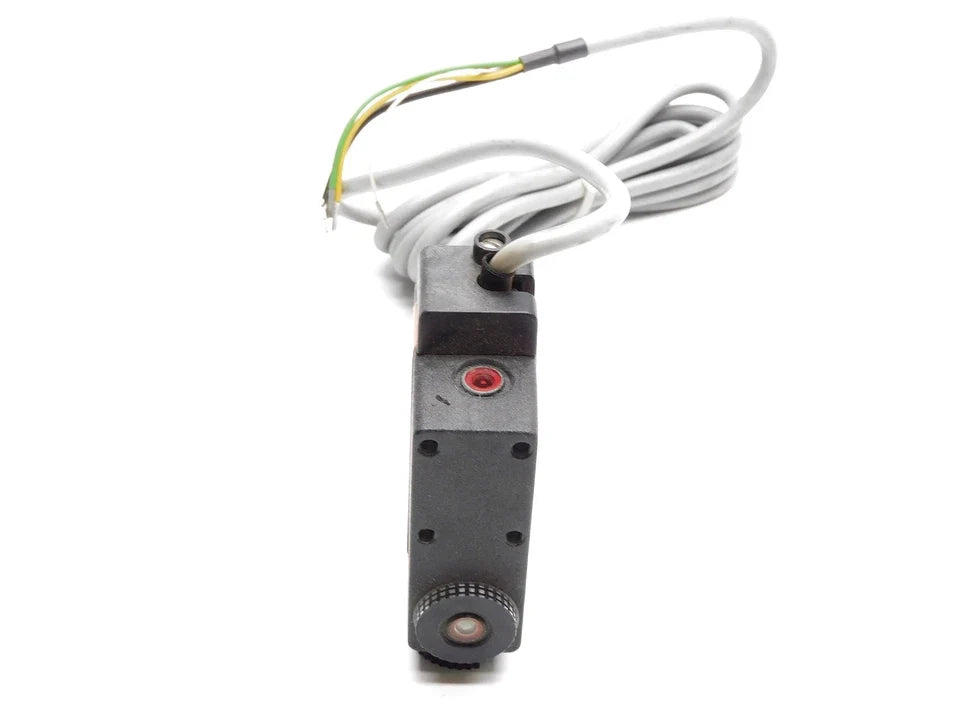

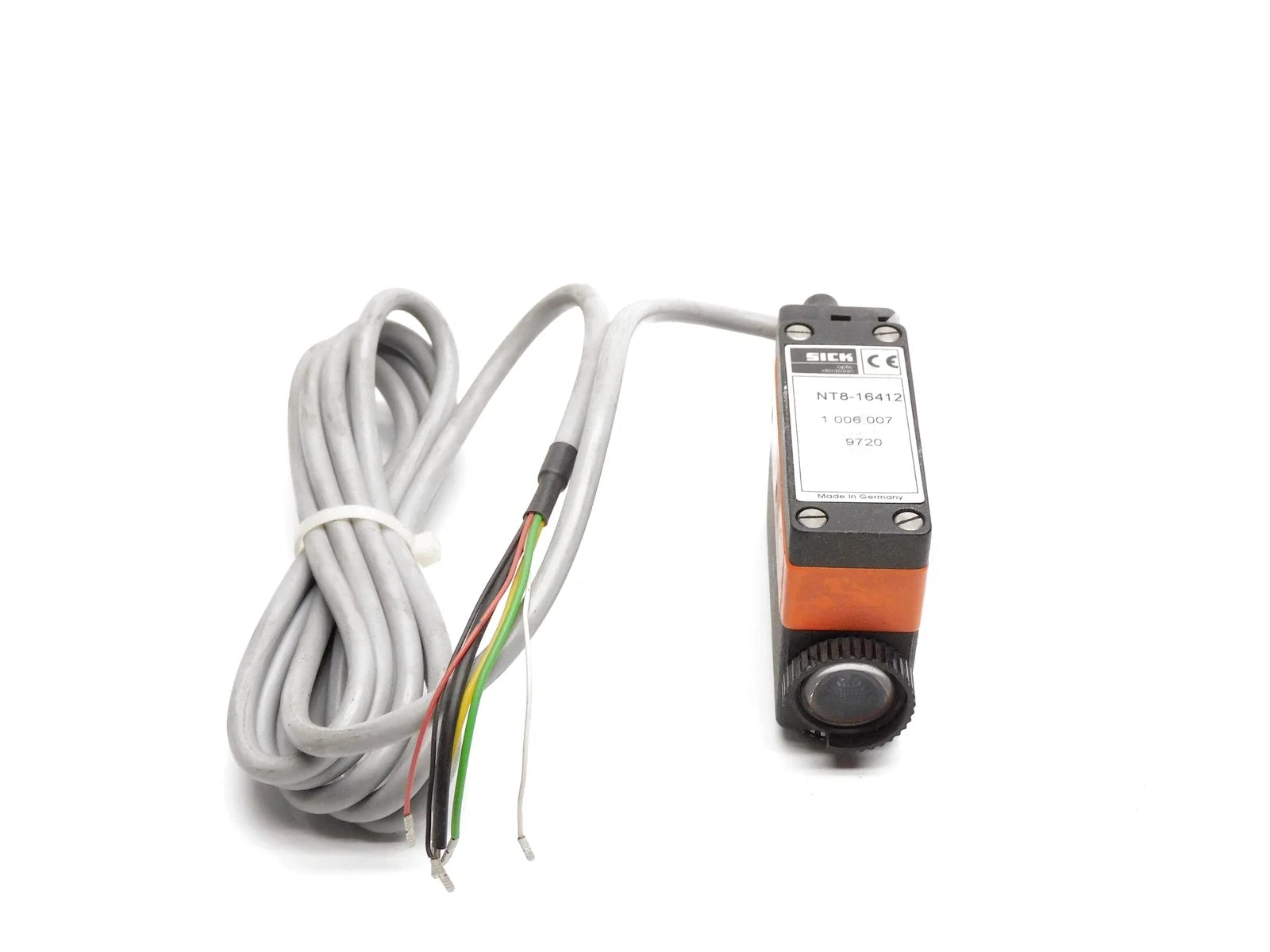

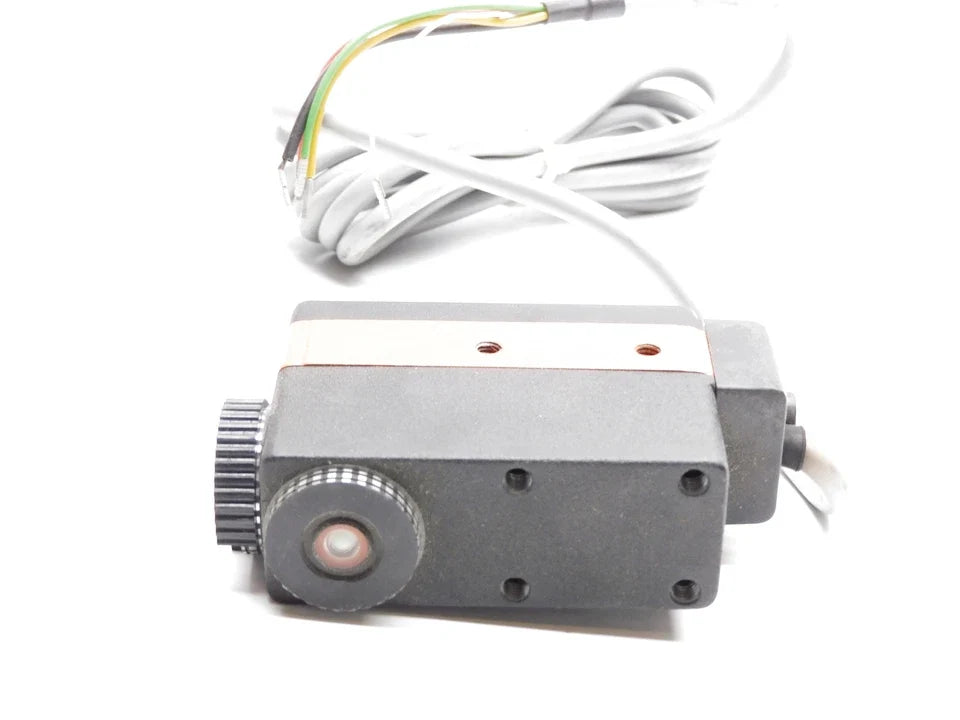

The SICK NT8-16412 is an industrial contrast sensor designed for precise detection of contrast differences at very short sensing distances. It operates with white light optics and delivers high-speed switching performance in harsh industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Sensors |
| Part Number |
NT8-16412 |
| Subcategory |
Contrast Sensors |
| Output Type |
NPN |
| Switching Frequency |
10 kHz |
| Sensing Distance |
≤ 9 mm |
| Sensing Distance Tolerance |
± 2 mm |
| Light Source |
White |
| Light Spot Size |
1.5 mm × 3.5 mm |
| Light Emission |
Long and short side, exchangeable |
| Light Spot Direction |
Vertical |
| Function |
Light / Dark switching |
| Supply Voltage |
10…30 V DC |
| Current Consumption |
< 50 mA |
| Ripple |
≤ 5 Vpp |
| Housing Material |
Zinc die-cast metal |
| Housing Design |
Middle |
| Dimensions (W × H × D) |
76 × 30 × 58.8 mm |
| Enclosure Rating |
IP67 |
| Ambient Operating Temperature |
0 °C … +55 °C |
| Storage Temperature |
–25 °C … +85 °C |
| Special Features |
S8 |
| Weight |
10.00 lbs |
Information About NT8-16412
The NT8-16412 is part of SICK’s NT8 series of contrast sensors developed for high-speed and high-precision detection tasks. It uses white light optics to reliably distinguish fine contrast differences on printed materials, labels, and markings at close range. The rugged zinc die-cast metal housing provides strong mechanical resistance and protection against dust and moisture in demanding industrial environments. With a fast 10 kHz switching frequency and IP67 protection, the sensor supports stable operation in applications with rapid material movement.
Key Features
- High-Speed Switching Performance: Supports switching frequencies up to 10 kHz, enabling accurate detection in fast-moving production and printing processes.
- White Light Optical System: Provides reliable contrast recognition across a wide range of colors and surface finishes.
- Short Sensing Distance Capability: Designed for precise detection at distances up to 9 mm, supporting fine registration and marking applications.
- Robust Metal Housing: Zinc die-cast construction ensures durability and long service life in mechanically demanding environments.
- Flexible Light Emission Direction: Exchangeable emission from the long or short side allows adaptable installation in confined machine spaces.
- NPN Output Configuration: Enables straightforward integration with standard industrial control and PLC systems.
- IP67 Environmental Protection: Ensures reliable operation in dusty, humid, or washdown-prone industrial settings.
The NT8-16412 delivers the reliability and precision required for high-speed contrast detection in industrial printing, packaging, and labeling systems.
