Description

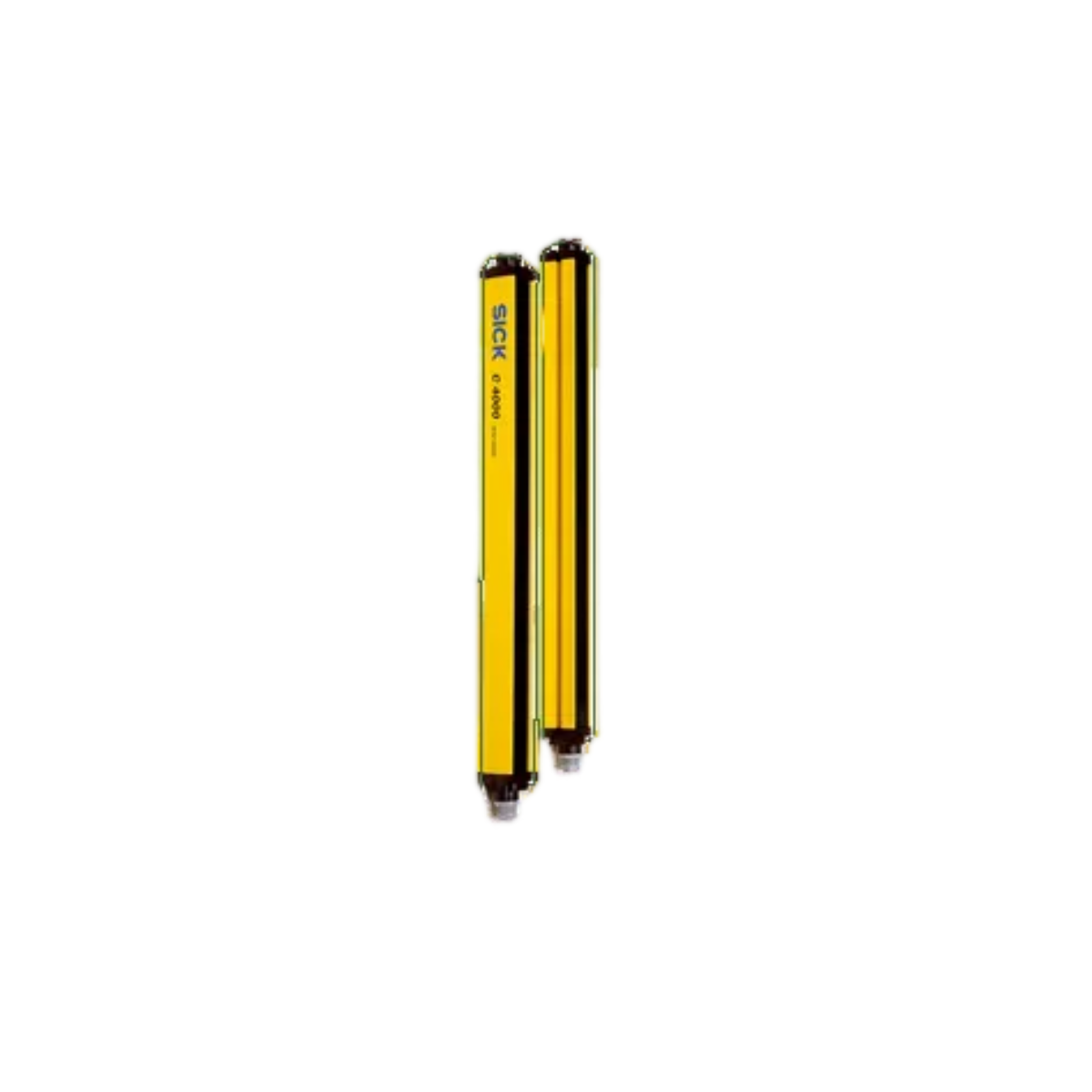

The SICK C40S-1803CA010 is a safety light curtain sender designed for reliable machine guarding in normal industrial environments. It provides a long protective field and high safety integrity to support advanced personnel protection systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Machine Safety |
| Part Number |
C40S-1803CA010 |
| Subcategory |
Safety Light Curtains |
| Series |
C4000 |
| System Part |
Sender |
| Application |
Normal Industrial Environment |
| Resolution |
30 mm |
| Protective Field Height |
1800 mm |
| Scanning Range |
Up to 21 m |
| Synchronization |
Optical Synchronization |
| Safety Type |
Type 4 (IEC 61496-1) |
| Safety Integrity Level |
SIL 3 (IEC 61508) |
| Safety Category |
Category 4 (EN ISO 13849) |
| Performance Level |
PL e (EN ISO 13849) |
| PFHD |
15 × 10⁻⁹ / 43 × 10⁻⁹ / 63 × 10⁻⁹ per hour |
| Mission Time (TM) |
20 years |
| Supply Voltage |
24 VDC (19.2–28.8 VDC) |
| Residual Ripple |
≤ 10% |
| Protection Class |
Class III (IEC 61140) |
| Display Elements |
7-Segment Display |
| Cable Connection Direction |
Straight |
| Conductor Cross Section |
0.75 mm² |
| Permitted Cable Length |
50 m |
| Housing Material |
Aluminum Extruded Profile |
| Housing Cross-Section |
48 mm × 40 mm |
| Ingress Protection |
IP65 |
| Operating Temperature |
0°C to +55°C |
| Storage Temperature |
-25°C to +70°C |
| Weight |
3,680 g |
Information About C40S-1803CA010
The C40S-1803CA010 is part of SICK’s C4000 safety light curtain family, engineered to provide high-level machine safety in industrial automation systems. This sender operates together with a compatible C4000 receiver to form a Type 4 safety light curtain system. It supports optical synchronization to ensure stable beam alignment and reliable system operation. The robust aluminum housing and certified safety parameters make it suitable for long-term use in demanding industrial environments.
Key Features
- Type 4 Safety Architecture: Designed in accordance with IEC 61496-1 to meet the highest machine safety requirements.
- PL e And SIL 3 Compliance: Supports advanced functional safety systems for high-risk industrial applications.
- Extended Protective Height: 1800 mm sensing field enables effective area and access protection.
- Long Scanning Range: Supports installation distances up to 21 meters for flexible system layouts.
- Optical Synchronization: Ensures stable and accurate operation with the corresponding receiver.
- Integrated Status Display: 7-segment display provides clear visual system status and diagnostics.
- Rugged Industrial Housing: Extruded aluminum profile with IP65 protection ensures durability in harsh environments.
The C40S-1803CA010 delivers the reliability and precision required for advanced industrial machine safety and personnel protection systems.
