Description

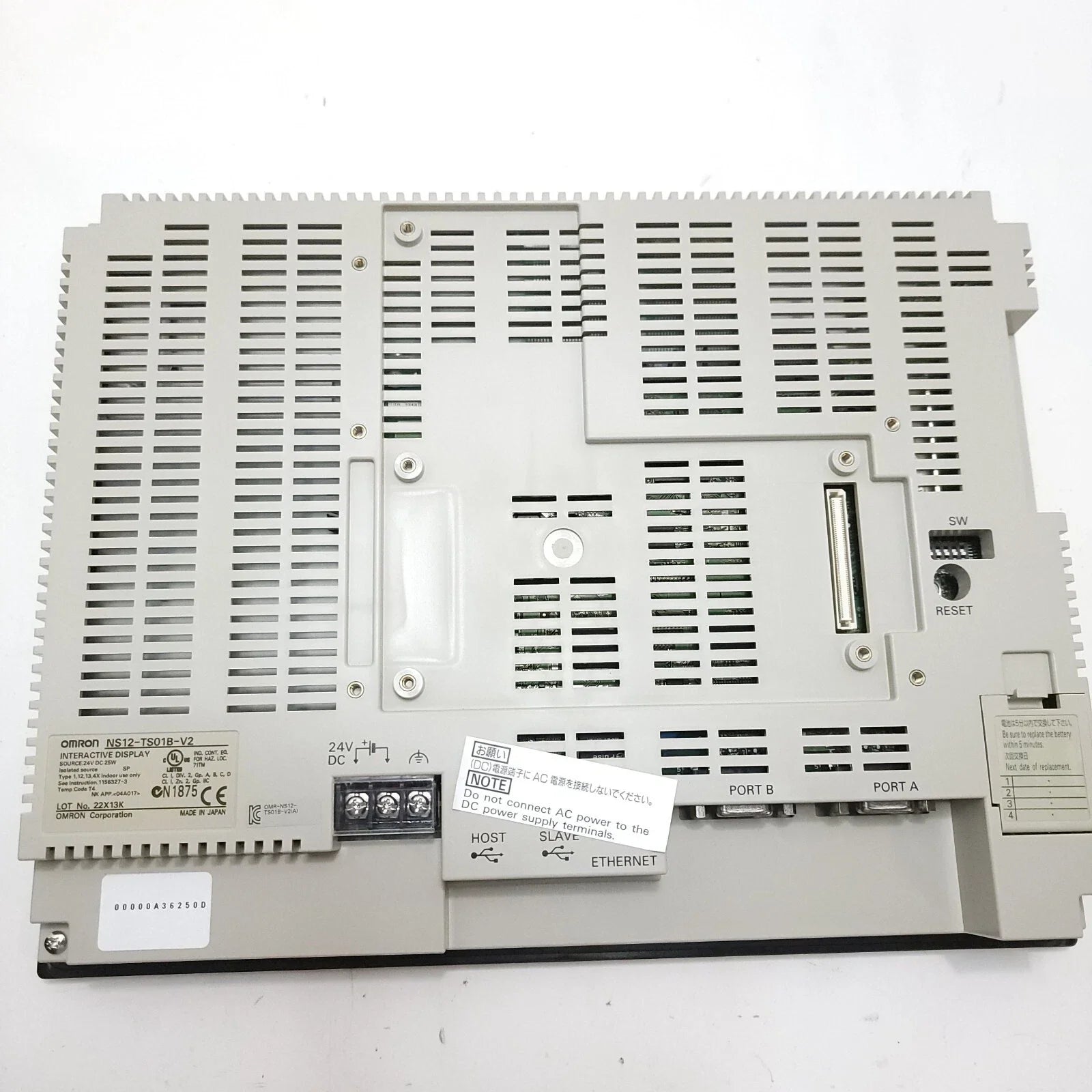

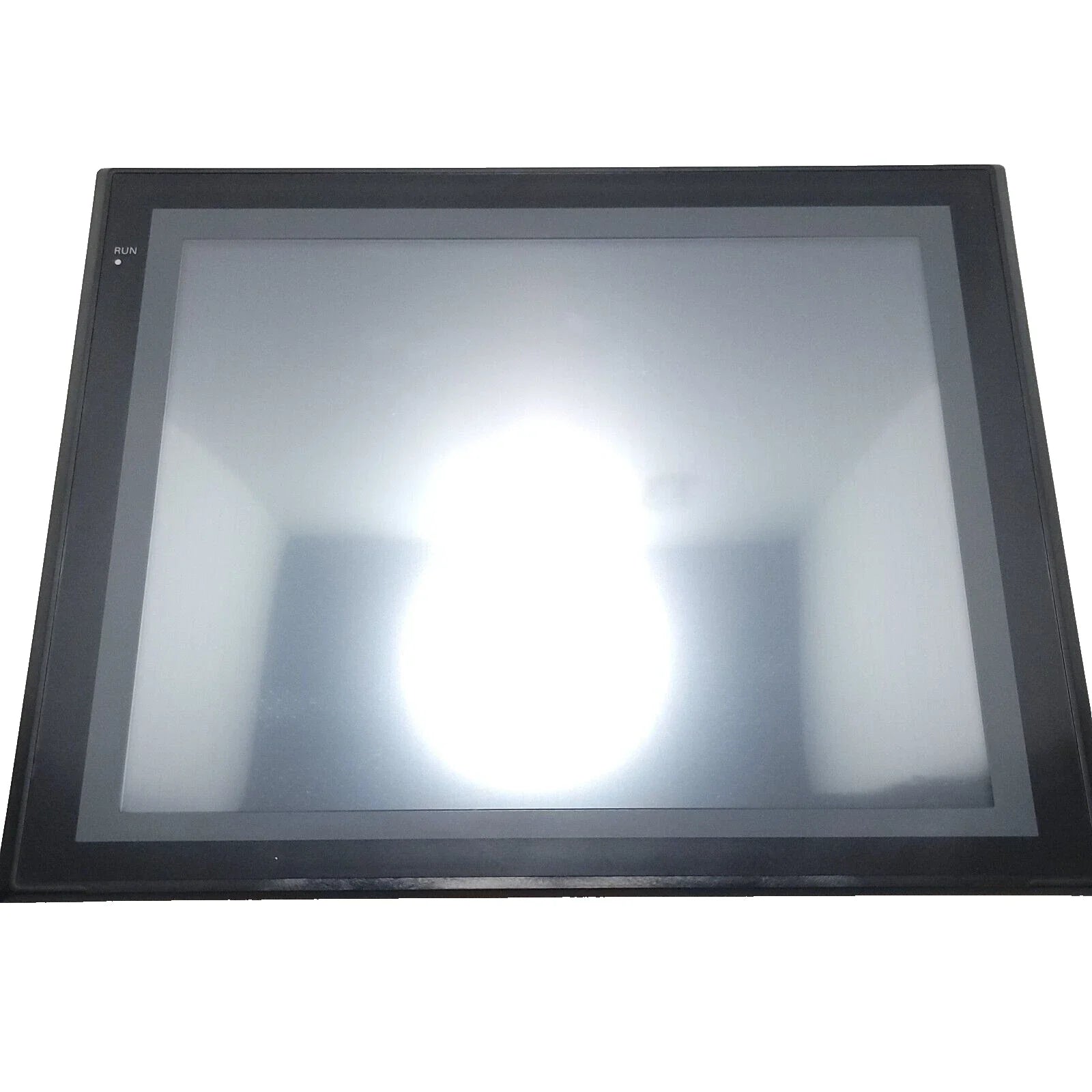

The Omron NS12-TS01B-V2-300 is a 12.1-inch touchscreen HMI (Human-Machine Interface) designed for controlling, monitoring, and visualizing industrial processes. Featuring a TFT color display and Ethernet communication, it delivers intuitive operation, high-resolution graphics, and seamless integration with Omron PLCs and automation networks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Operator Interfaces |
| Part Number |
NS12-TS01B-V2-300 |
| Subcategory |
HMI (Human-Machine Interface) |
| Series |
NS Series |
| Display Type |
12.1-inch TFT LCD color touchscreen |
| Display Resolution |
800 × 600 pixels (SVGA) |
| Backlight |
LED (replaceable) |
| Communication Interfaces |
Ethernet, RS-232C, RS-422A/485, USB Host/Device |
| Power Supply |
24 VDC (±10%) |
| Memory Capacity |
Flash memory for program and data storage |
| Input Type |
Touch panel (analog resistive) |
| Function Keys |
Programmable (model dependent) |
| Supported Software |
Omron CX-Designer / CX-One |
| Data Logging |
Supported (trend, alarm, and recipe data) |
| Protection Rating |
IP65 (front panel, when mounted) |
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
–20°C to +60°C |
| Mounting Type |
Panel mount |
| Enclosure Material |
Aluminum front bezel with durable polycarbonate |
| Supported PLCs |
Omron CJ, CS, CP, and Sysmac series |
| Dimensions (W × H × D) |
Approx. 315 × 241 × 56 mm |
| Weight |
Approx. 2.6 kg |
| Compliance |
CE, UL, cUL, RoHS |
Information About NS12-TS01B-V2-300
The NS12-TS01B-V2-300 is part of Omron’s NS series of advanced operator interfaces engineered for reliable machine control and visualization. This model features a 12.1-inch TFT LCD touchscreen with vivid color display and durable front-panel design for industrial use. It supports multiple communication protocols, including Ethernet, serial (RS-232C/RS-422A/RS-485), and USB connections, allowing easy data exchange with Omron PLCs, drives, and sensors. With a Windows-based programming environment (CX-Designer), the HMI enables flexible screen design, alarm handling, and trend visualization. The NS12-TS01B-V2-300 is ideal for process monitoring, machinery control, and automation system interfaces where operator efficiency and system transparency are key.
Key Features:
- 12.1-Inch TFT Touchscreen: High-resolution color display for clear visualization of processes and data.
- Ethernet Connectivity: Enables high-speed communication and remote monitoring with Omron PLCs.
- Multi-Interface Support: Includes serial, USB, and Ethernet ports for flexible integration.
- User-Friendly Design: Touch-based operation with programmable function keys and customizable layouts.
- Advanced Visualization: Supports alarms, trends, and multi-window displays for real-time system insight.
- Rugged Industrial Build: Resistant to vibration, dust, and moisture with a durable front panel.
- Data Logging & Recipe Management: Facilitates process tracking and efficient product changeovers.
- Seamless Omron Integration: Optimized for Sysmac and CJ/CS series PLCs with plug-and-play connectivity.
The NS12-TS01B-V2-300 delivers the reliability and functionality required for professional HMI applications in industrial automation and process control.
