Description

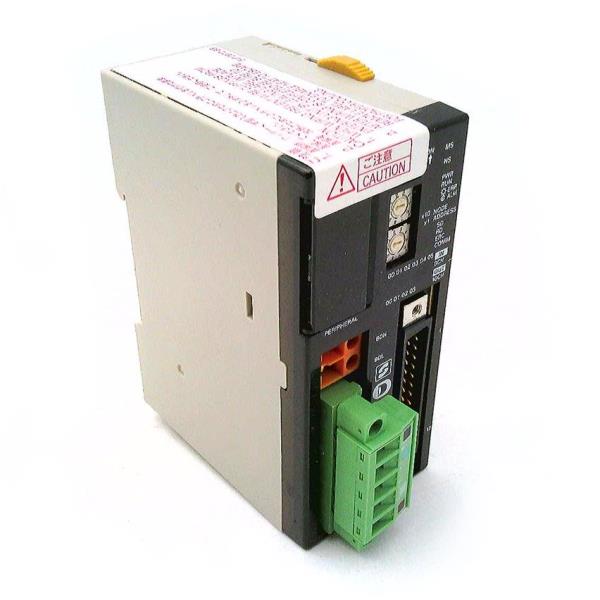

The Omron CPM2C-S110C-DRT I/O Module is a compact DeviceNet I/O expansion unit providing 6 digital inputs and 4 solid-state sourcing outputs for industrial automation systems. Operating on 24 VDC, it features a D-Sub connector interface and DIN rail mounting, delivering reliable communication and I/O expansion for Omron’s CPM2C PLC platform.
Technical Specifications
| Condition |
New/Never Used Surplus (Discontinued) |
| Brand |
Omron |
| Category |
Industrial Automation and Controls |
| Part Number |
CPM2C-S110C-DRT |
| Subcategory |
I/O Modules |
| Series |
CPM2C |
| Type |
Input/Output Expansion Module |
| Supply Voltage |
24 VDC |
| Digital Inputs |
6 × 24 VDC inputs |
| Digital Outputs |
4 × sourcing transistor outputs (24 VDC) |
| Output Type |
Solid-state (transistor) |
| Max Input Voltage |
24 VDC |
| Output Current Rating |
0.3 A per point (series typical) |
| Communication Interface |
DeviceNet |
| Connector Type |
D-Sub connector |
| Mounting Type |
DIN rail |
| Built-In Features |
Real-time clock |
| Ingress Protection |
IP30 |
| Cable Length |
0.1 m |
| Response Time |
1 ms or less (typical) |
| Operating Temperature |
0°C to 55°C |
| Storage Temperature |
-20°C to 70°C |
| Operating Humidity |
35%–85% RH (non-condensing) |
| Isolation Type |
Optical isolation between input and logic circuits |
| Indicators |
LED input/output status indicators |
| Approvals |
UL, CSA, CE |
| Country of Origin |
Japan |
| Weight |
Approx. 200 g (0.44 lb) |
| Application |
Distributed I/O, PLC expansion, automation control systems |
Information About CPM2C-S110C-DRT
The CPM2C-S110C-DRT is part of Omron’s CPM2C Series, a family of compact PLC modules and accessories designed for distributed control and DeviceNet network integration. This unit includes 6 digital inputs (24 VDC) and 4 sourcing-type transistor outputs (24 VDC), supporting high-speed and noise-resistant signal processing. It integrates directly into a DeviceNet network, enabling efficient I/O data exchange with master controllers and other devices. Equipped with a built-in real-time clock, the module can handle time-stamped operations and logging. Its rugged IP30-rated housing and DIN rail mounting make it ideal for installation in industrial control cabinets.
Key Features:
- Compact I/O Expansion: Provides 6 digital inputs and 4 transistor (sourcing) outputs for control flexibility.
- DeviceNet Connectivity: Enables network-based communication with PLCs and distributed control systems.
- Built-In Real-Time Clock: Supports time-based automation and scheduling functions.
- 24 VDC Operation: Low-voltage power supply ensures safe and efficient operation.
- Solid-State Outputs: Sourcing transistor design for reliable, fast switching of DC loads.
- Durable Design: IP30-rated enclosure suitable for protected control panel installations.
- DIN Rail Mounting: Quick and secure installation in control cabinets.
- Certified Compliance: UL, CSA, and CE approved for global industrial use.
The CPM2C-S110C-DRT delivers the reliability and performance required for distributed control and intelligent I/O management in modern automation systems.
