Description

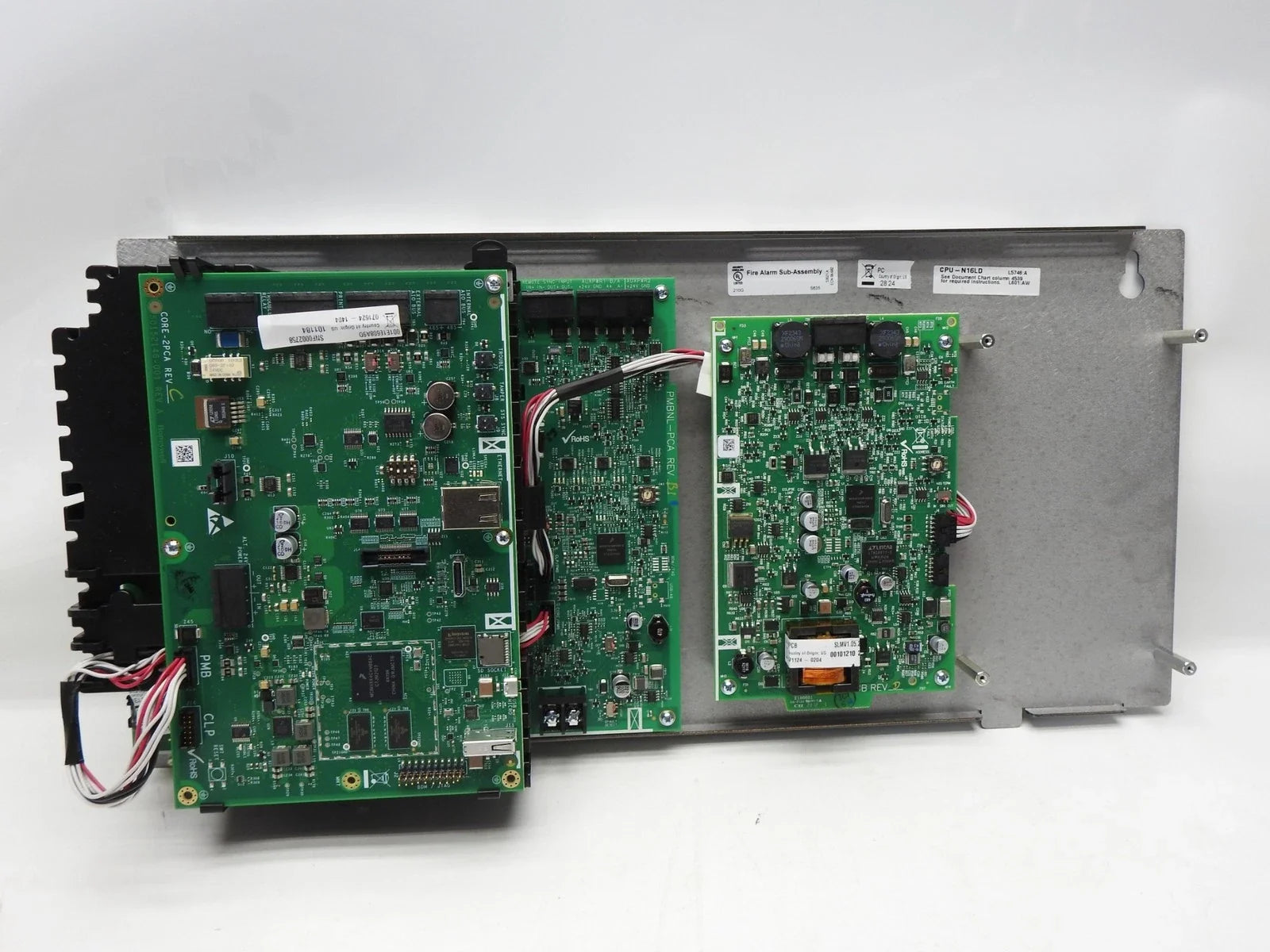

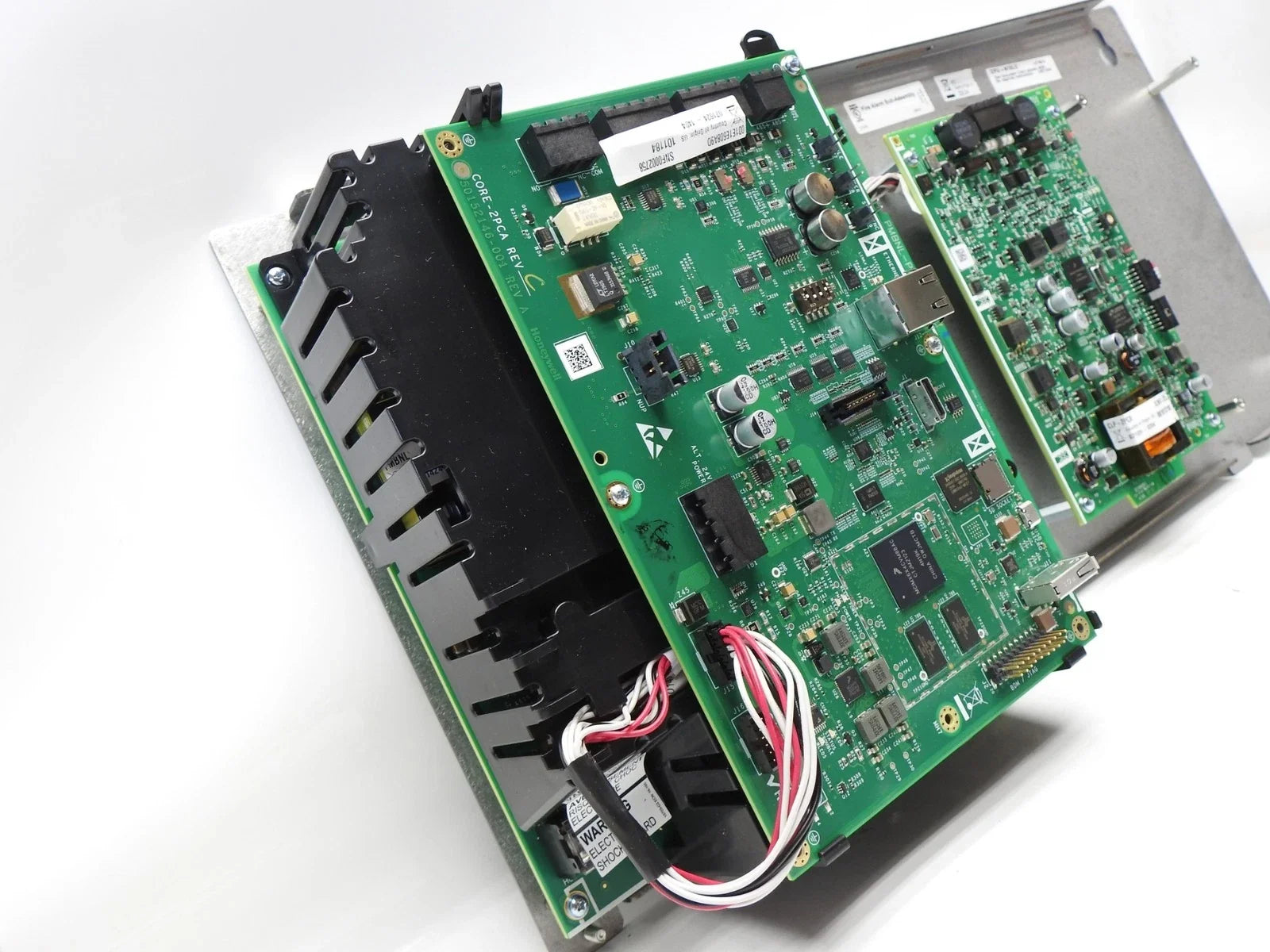

The Notifier CPU-N16LD is a modular intelligent fire alarm control panel designed to provide advanced fire detection, notification, and system management for commercial and industrial facilities. Featuring a 10-inch high-definition touchscreen, built-in power supply, and Connected Life Safety Services (CLSS) compatibility, the CPU-N16LD delivers scalable system control with intuitive operation and cloud-enabled connectivity. Its modular architecture supports both standalone and networked fire alarm installations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Notifier |
| Category |
Fire Alarm Systems |
| Part Number |
CPU-N16LD |
| Subcategory |
Fire Alarm Control Panel |
| Series |
INSPIRE™ N16 Series |
| Display |
10 in. High-Definition Color Touchscreen |
| Initial SLC Capacity |
1 Intelligent Signaling Line Circuit |
| Maximum SLC Capacity |
Up to 10 SLC Modules |
| Maximum Addressable Devices |
Up to 3,180 Intelligent Devices |
| Power Supply |
6.0 A Integrated Power Supply |
| NAC Outputs |
4 Programmable Class A/B Outputs |
| Auxiliary Outputs |
2 Configurable Outputs |
| Networking |
NOTI•FIRE•NET, CLSS Compatible |
| History Buffer |
10,000 Events (3,000 Displayed) |
| Application |
Intelligent Commercial Fire Alarm Systems |
| Weight |
Approx. 12 lb |
Information About CPU-N16LD
The CPU-N16LD is part of the Notifier Inspire Series, known for its modular design and robust system integration capabilities. This control panel can operate as a standalone or networked unit and supports up to 10 Signaling Line Modules (SLM-318), allowing flexible configuration for small or large-scale applications. It integrates seamlessly with Connected Life Safety Services (CLSS) for cloud-based monitoring, programming, and diagnostics. Designed for compliance with UL, FM, and CSFM standards, the CPU-N16LD ensures dependable performance in commercial, industrial, and institutional facilities.
Key Features:
- 10-Inch Touchscreen Display: High-definition color interface with intuitive icon-based navigation.
- Modular Architecture: Expandable platform for standalone or networked fire alarm systems.
- Intelligent SLC Support: Ships with one SLC and expands to ten loops supporting up to 3,180 addressable devices.
- CLSS Connectivity: Compatible with Connected Life Safety Services for cloud monitoring, diagnostics, and licensing.
- Flexible Power Outputs: Includes a 6.0 A power supply with four programmable Class A/B NAC outputs and two configurable auxiliary outputs.
- NOTI•FIRE•NET Networking: Supports standard and high-speed networking for multi-panel installations.
- Integrated Voice Compatibility: Supports optional Digital Voice Command and emergency communication expansion.
- Advanced Event Management: Features a 10,000-event history buffer, customizable notifications, and programmable operating modes.
The CPU-N16LD delivers the reliability and precision required for intelligent fire detection, notification, and life safety management in commercial and industrial facilities.
