[shortdesc]2U rack mount, 7 HDD/SSD bays, 10G SFP+, GbE RJ45, 8 GB memory, 1.3-inch touchscreen[/shortdesc]
[properties]
| Brand |
Ubiquiti |
| Model |
UNVR-Pro |
| SKU |
UNVR-Pro |
| Product Type |
Network Video Recorder Pro |
| Series |
UniFi Protect |
| Interface |
(1) 10/100/1000 Mbps RJ45 Ethernet; (1) 1/10 Gbps SFP+ Ethernet |
| Power |
160W Max. Power Consumption |
| Dimensions |
442 x 325 x 87 mm (17.4 x 12.8 x 3.4") |
| Weight |
Without Rackmount Brackets: 9.2 kg (20.28 lb); With Rackmount Brackets: 9.45 kg (20.83 lb) |
| Material |
SGCC Steel |
| Operating Temperature |
-5 to 40° C (23 to 104° F) |
[/properties]
[specifications]
| Enclosure Material |
SGCC Steel |
| Mount Material |
SGCC Steel |
| Max. Power Consumption |
160W |
| Max. Power Budget for Drives |
135W |
| Power Method |
(1) Universal AC input, 100-240VAC, 3A Max, 50/60 Hz; (1) USP-RPS DC input, 11.5VDC, 13.91A |
| Power Supply |
AC/DC, Internal, 200W |
| Networking Interfaces |
(1) 10G SFP+ port; (1) GbE RJ45 port |
| Processor |
Quad ARM Cortex-A57 cores at 1.7 GHz |
| Memory |
8 GB |
| RF Interface |
(1) Bluetooth v4.1 |
| LCM Display |
1.3" Touchscreen |
| Management Interface |
Ethernet In-Band Management |
| ESD/EMP Protection |
Air: ± 12kV, Contact: ± 8kV |
| Operating Humidity |
5 - 95% Noncondensing |
| Certifications |
FCC, CE, IC, Anatel |
| Ethernet LED |
White: 10/100/1000 Mbps |
| SFP+ LED |
White: 1/10 Gbps |
| HDD LED |
Amber: Disk Error, White: Disk Detected |
| RPS LED |
Blue: Ready |
| HDD Bay |
(7) 2.5/3.5" HDD/SSD support |
| Managed Cameras |
(70) HD, (35) 2K, (24) 4K |
| Managed Access Hubs |
150 |
| RAID Configuration |
RAID 1, 5, or 10 based on the number of HDDs installed |
| NDAA Compliant |
Yes |
[/specifications]
High-Capacity UniFi Protect Video Recording

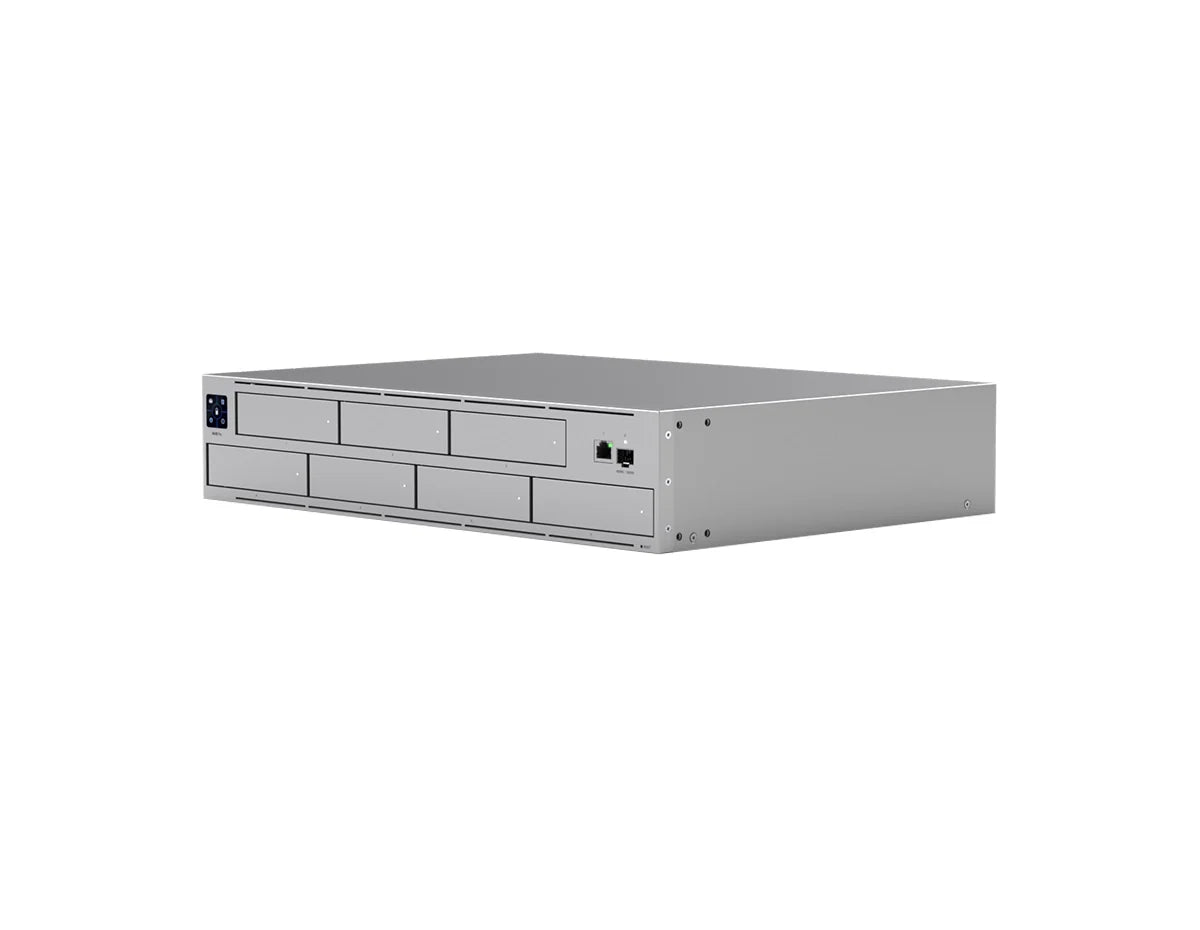

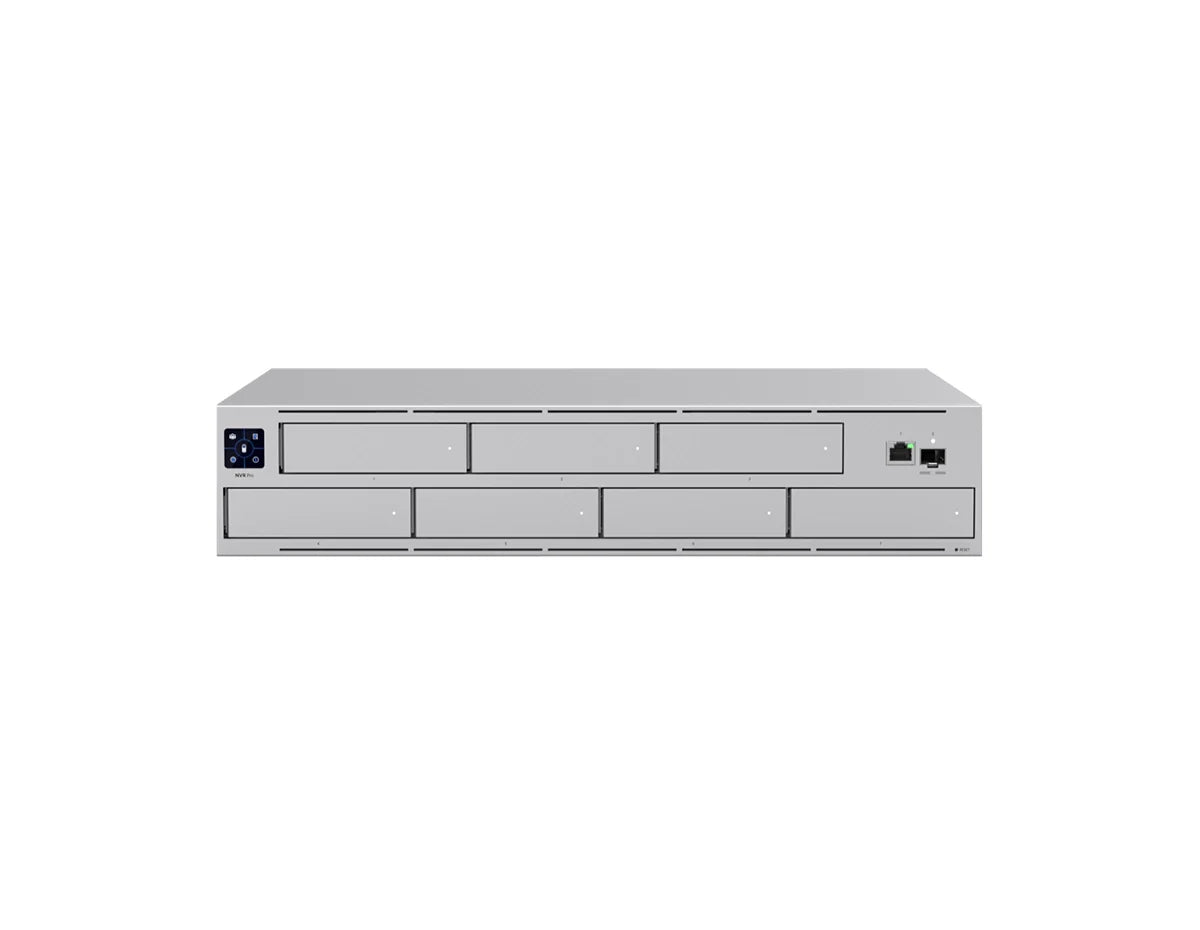

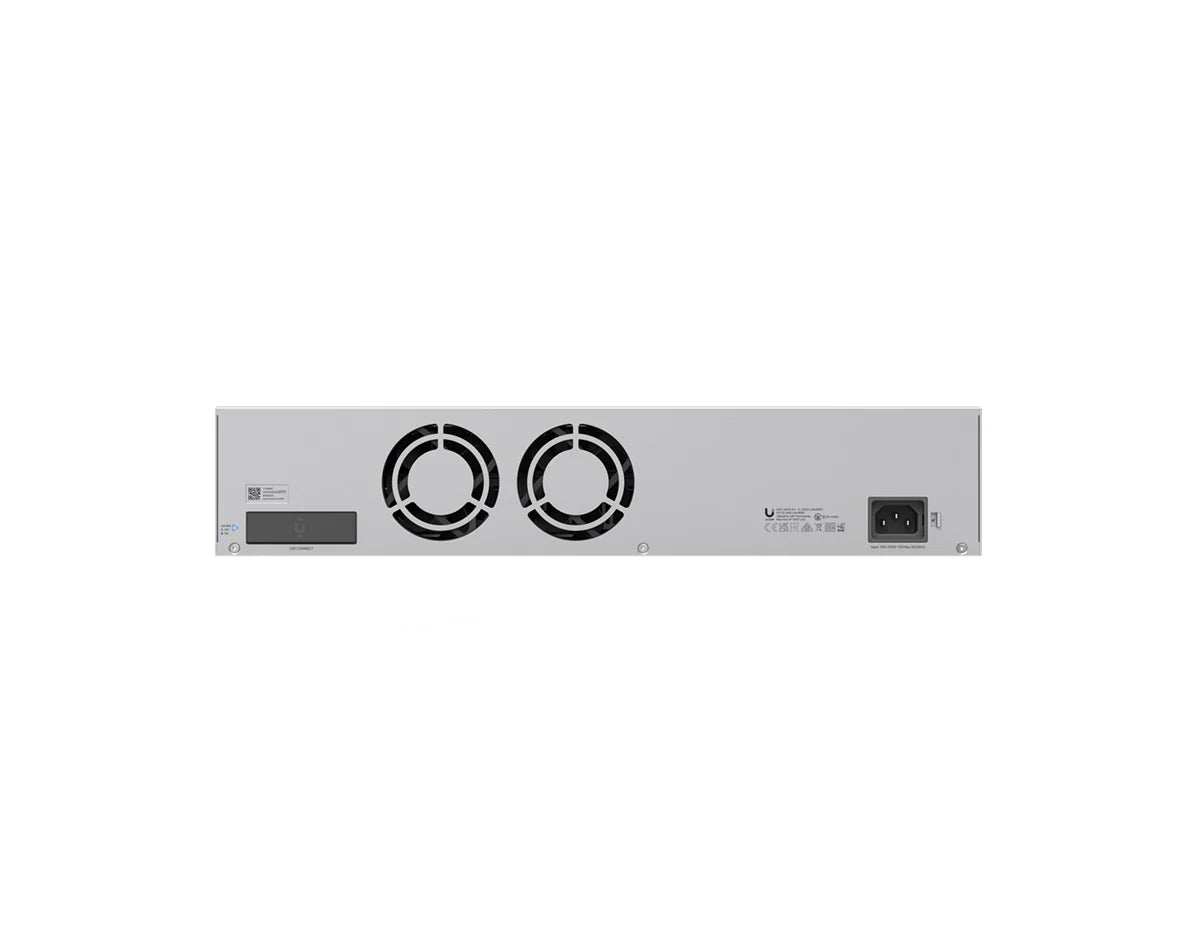

The Ubiquiti UNVR-Pro Network Video Recorder Pro is a 2U rack-mounted surveillance recorder designed for centralized video storage and management. Its seven 2.5-inch or 3.5-inch HDD and SSD bays provide flexible storage capacity for business, commercial, and multi-camera UniFi Protect deployments.
The UNVR-Pro supports up to 70 HD cameras, 35 2K cameras, or 24 4K cameras to scale dynamically alongside enterprise demand. A 10G SFP+ interface and a Gigabit Ethernet RJ45 port provide network connectivity for accessing low-latency live feeds, recordings, and management services. The multi-application console natively supports UniFi Protect, UniFi Access, and UniFi Connect management systems.
Key Benefits and Features
- Seven drive bays support enterprise-grade 2.5-inch and 3.5-inch HDDs or SSDs
- Supports concurrent configurations up to 70 HD, 35 2K, or 24 4K managed cameras
- Includes one high-speed 10G SFP+ port and one GbE RJ45 port for flexible uplinks
- 1.3-inch touchscreen provides convenient local system interaction and video previewing
- Power redundancy support through a dedicated USP-RPS DC backup input
Ideal Use Cases
- Centralized UniFi Protect enterprise surveillance networks
- Commercial facilities demanding scaled 4K camera deployments
- Retail, office, warehouse, and distributed campus security footprints
- High-availability rack-mounted video infrastructure requiring 10G connectivity
Technical Specifications
-
Model: UNVR-Pro
-
Form Factor: Rack mount, 2U
-
Drive Support: Seven 2.5-inch or 3.5-inch HDD/SSD bays
-
Camera Capacity: 70 HD, 35 2K, or 24 4K cameras
-
Networking: One 10G SFP+ port and one GbE RJ45 port
-
Processor: Quad ARM Cortex-A57 cores at 1.7 GHz
-
Memory: 8 GB
-
Display: 1.3-inch touchscreen
-
Maximum Power Consumption: 160W
-
Dimensions: 442 x 325 x 87 mm (17.4 x 12.8 x 3.4")
Build a Scalable UniFi Video Surveillance Platform
Deploy the Ubiquiti UNVR-Pro to consolidate camera management and enterprise security recordings within a secure, high-capacity, rack-mounted UniFi ecosystem.
