[properties]
| Properties |
UniFi Protect G4 Dome Camera |
| Description |
The UniFi Protect G4 Dome Camera offers high-resolution 2K video, wide-angle viewing, night vision, AI event detection, 2-way audio, and durability in various outdoor conditions. |
| Product Type |
Camera |
| Sensor |
5 MP CMOS sensor |
| Lens |
Fixed focal length |
| View angle |
H:102.4°, V:71.4°, D:134.3° |
| Night mode |
Built-in light sensor
Built-in IR LED illumination and IR cut
|
| Video compression |
H.264 |
| Resolution |
2688 x 1512 (16:9) |
| Maximum frame rate |
24 FPS |
| Image settings |
Brightness, contrast, sharpness, saturation, noise reduction, 50/60 Hz |
| Microphone |
Yes (can be disabled in software) |
| Speaker |
Yes |
| Enclosure materials |
Aluminum alloy, polycarbonate, hard-coated dome |
| Mounting materials |
Polycarbonate, stainless steel |
| Weatherproofing |
IPX4 |
| Resistance |
IK08 |
| Dimensions |
Ø109.2 x 64.5 mm (Ø4.3 x 2.5") |
| Weight |
Without mount: 370 g (13.05 oz)
With mount: 390 g (13.76 oz) |
[/properties][specifications]
| Specifications |
UniFi Protect G4 Dome Camera |
| Processor specs |
Quad-core Arm® Cortex®-A53 based chip |
| Memory information |
512 MB |
| Management interface |
UniFi Protect |
| Networking interface |
GbE RJ45 port |
| Flash memory support |
256 MB |
| Max. power consumption |
5W |
| Power method |
PoE |
| Supported voltage range |
44 to 57VDC |
| Link/activity LED |
Yes |
| Button |
Factory reset |
| Operating temperature |
-20 to 40° C (-4 to 104° F) |
| Operating humidity |
0 to 90% noncondensing |
| Certications |
FCC, IC, CE |
| UniFi OS application |
UniFi Protect |
| Mobile apps |
UniFi Protect iOS and Android |
[/specifications]

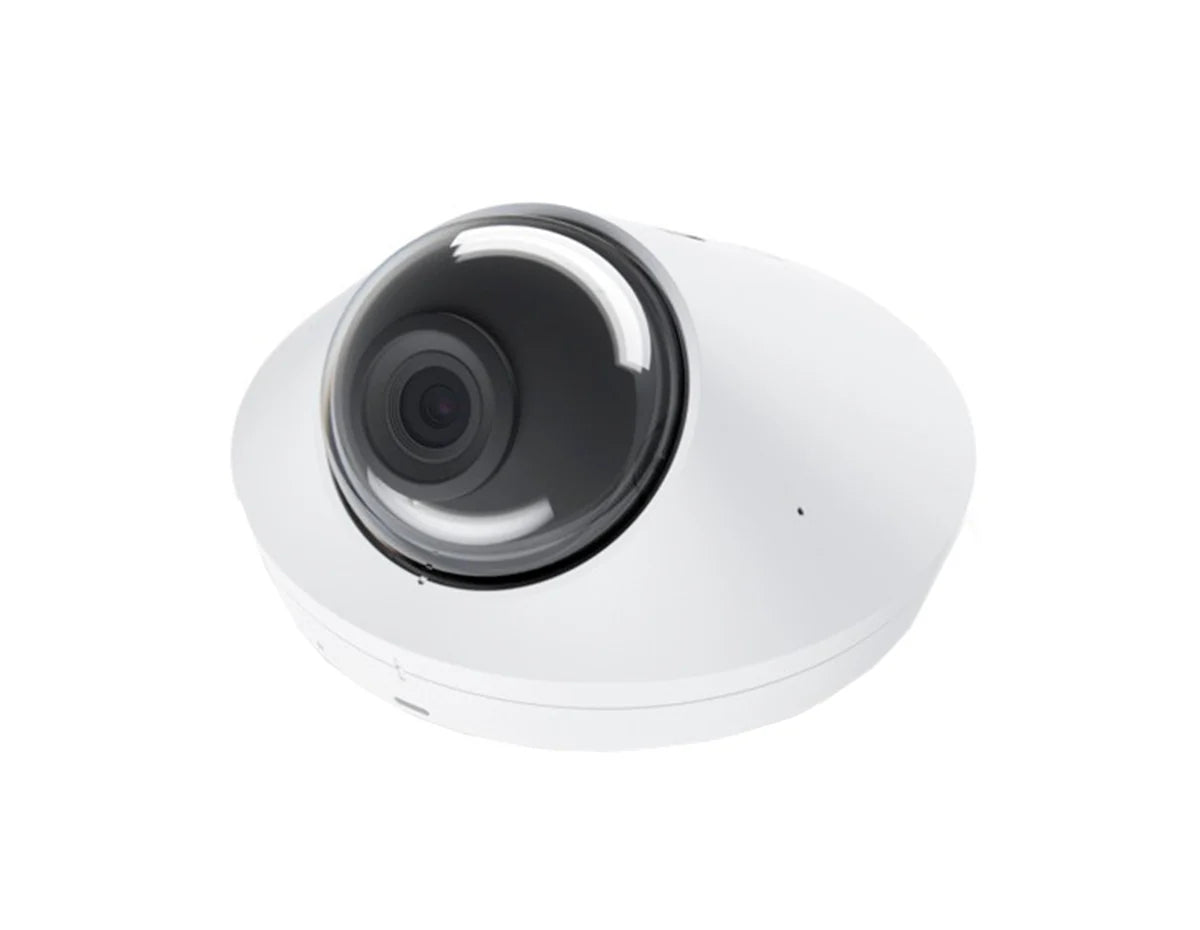

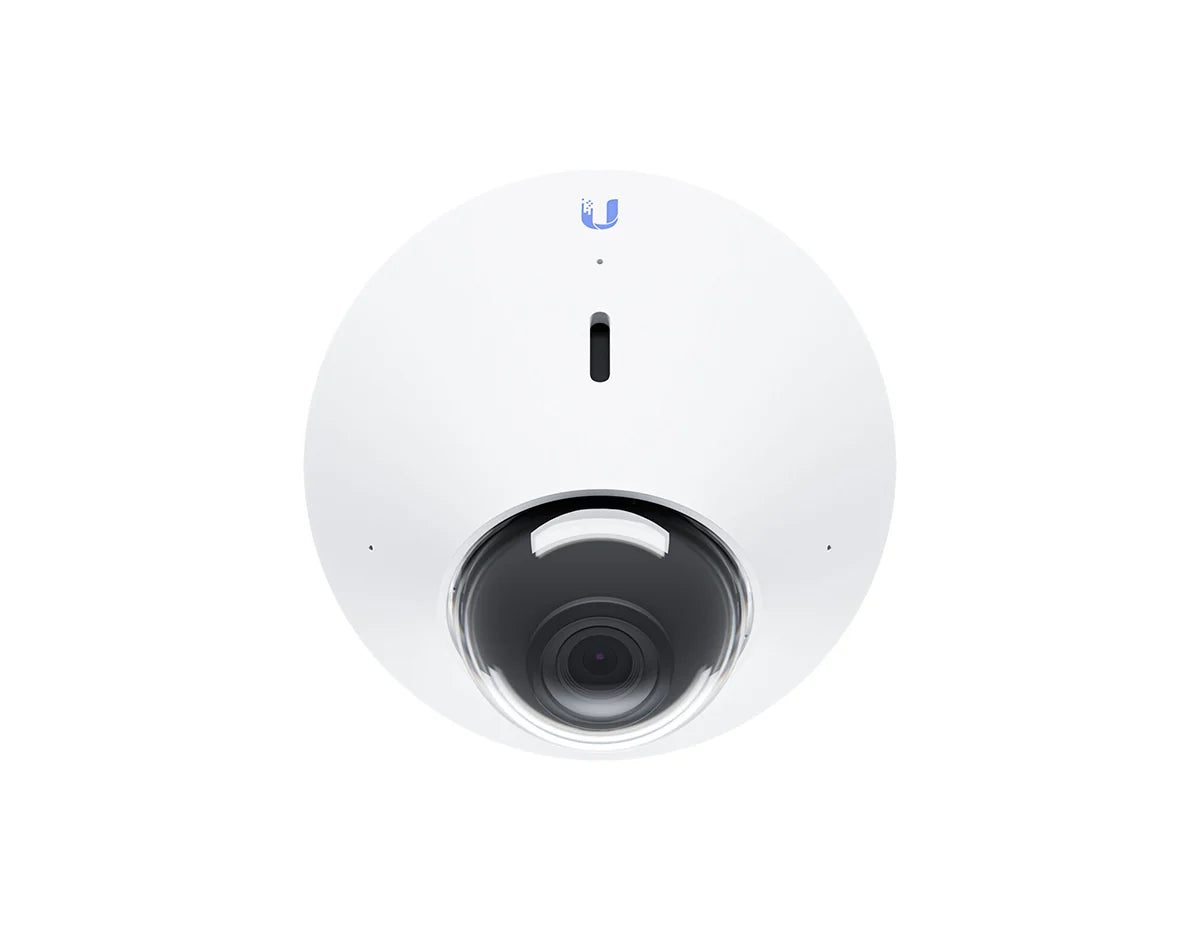

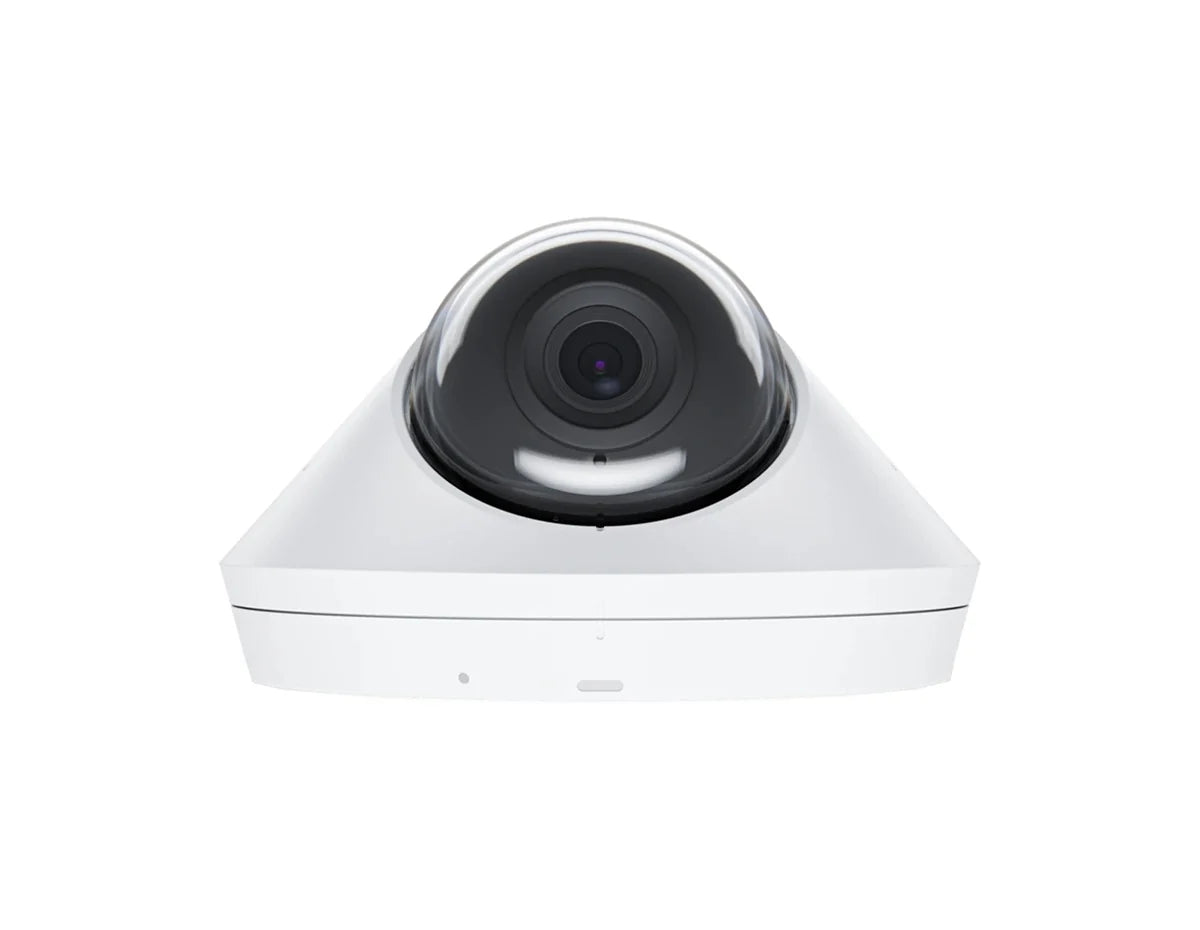

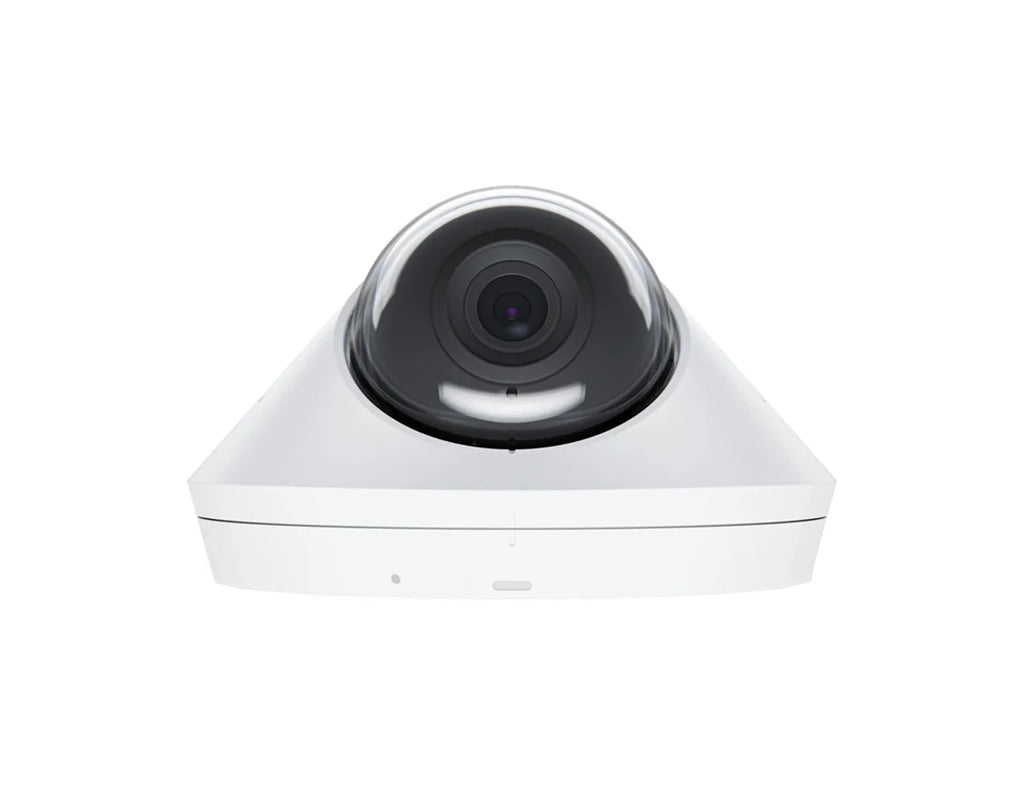

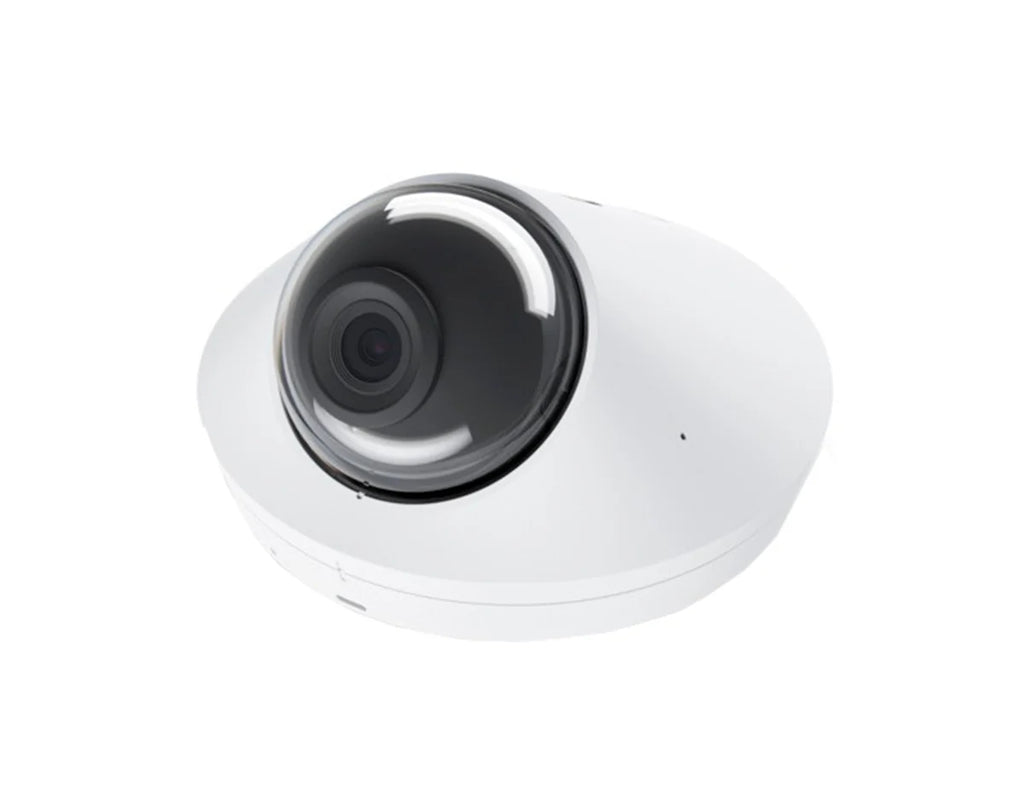

UNiFi UVC-G4-DOME Camera
The UVC-G4-DOME is a small dome-style network camera equipped with integrated LED infrared illumination, ensuring high-quality image capture in daytime and nighttime conditions. Along with a built-in microphone, the camera also features a speaker. Its wide-angle lens, 5-megapixel sensor, and expansive field of view enhance image clarity compared to its predecessors. The camera's vandal-resistant IK08 rating and IPx4 weatherproof housing protect against physical tampering and splashing.
Quick Specs:
-
2K (4MP) video resolution
-
Ultra-wide viewing angle (102.4)
-
IP4 weatherproof enclosure
-
9m (30ft) IR night vision
Please see the related tabs for the UVC-G4-DOME datasheet and compatible accessories.
