Package Contents:
- S3071D270RAU6-X2 Barebone Systems
- Quick guide
- Slide rail Kit
- (2) CPU Coolers
- (2) CPU Carrier BR1A
- (2) CRPS PSUs
|
| Product Type: Barebone System |
| Input Voltage: 120 V AC,230 V AC |
| Manufacturer Website Address: http://www.msi.com |
| Form Factor: Rack-mountable |
| Manufacturer: MSI |

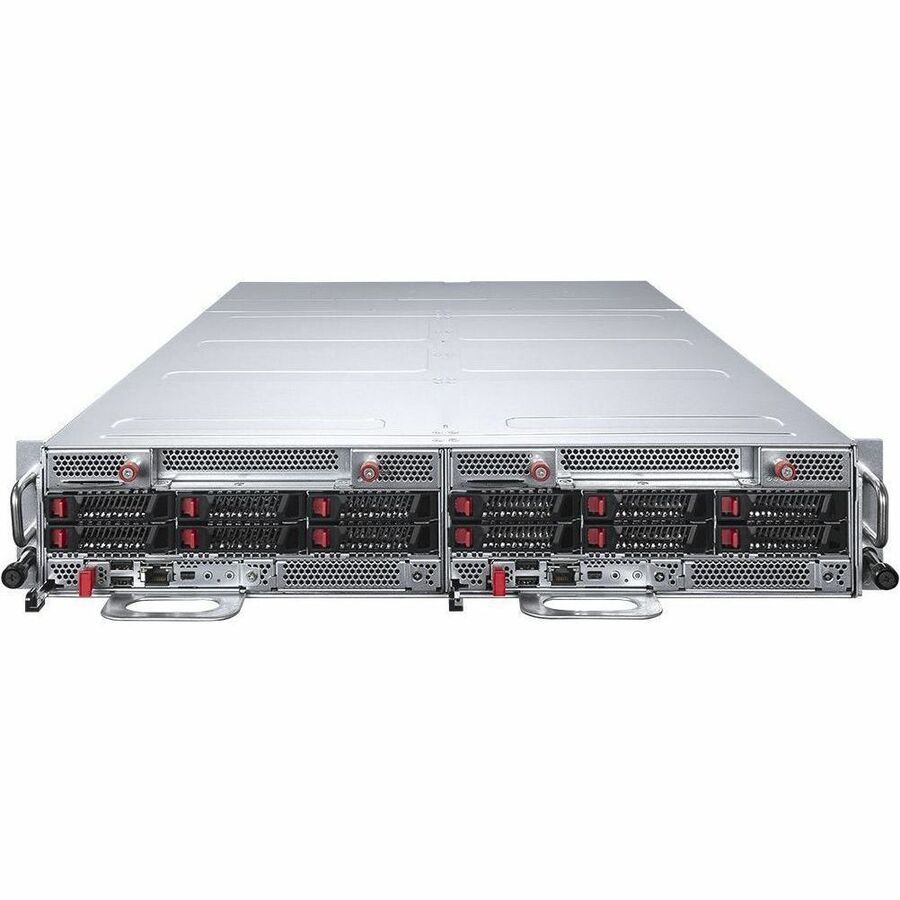

| Product Name: S3071D270RAU6-X2 Barebone Systems |
| Processor Supported: Xeon 6 |
| Raid Levels: 0, 1, 5, 10 |
| Controller Type: NVMe |
| Processor Socket: Socket LGA-7529 |
| Rack Height: 2U |
| Brand Name: MSI |
| Memory Technology: DDR5 SDRAM |
| Thermal Design Power: 500 W |
| Chipset Manufacturer: Intel |
| Graphics Controller Manufacturer: ASPEED |
| Number Of Power Supplies Installed: 2 |
| Graphics Memory Accessibility: Dedicated |
| Number Of Processors Supported: 1 |
| Number Of Processors Installed: 1 |
| Raid Supported: Yes |
| Number Of Total Expansion Bays: 6 |
| Number Of Pci Express X16 Slots: 2 |
| Number Of Network (Rj 45) Ports: 1 |
| Network (Rj 45): Yes |
| Maximum Power Supply Wattage: 2400 W |
| Total Number Of Usb Ports: 2 |
| Number Of Onboard Usb 2.0 Ports: 1 |
| Number Of 2.5" Bays: 6 |
| Total Number Of Expansion Slots: 2 |
| Number Of M.2 Interfaces: 2 |
| Number Of Usb Type A Ports: 1 |
| Total Number Of Memory Slots: 12 |
| Feature1: 2U2N (DC-MHS architecture) |
| Feature2: Single Intel® Xeon® 6900 series processor, TDP up to 500W, per node |
| Feature3: (12) DDR5 RDIMM, 12 channels(1DPC), up to 6400MT/s, per node |
| Feature4: (6) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node |
| Feature5: (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports per node |
| Feature6: (1) FHHL PCIe 5.0 x16 slot per node |
| Feature7: (1) 1000Base-T Dedicated Server Management port per node with: |
| Feature8: ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support |
| Feature9: Dual BIOS & BMC |
| Feature10: TPM2.0 and Hardware Root of Trust module are supported as optional |
