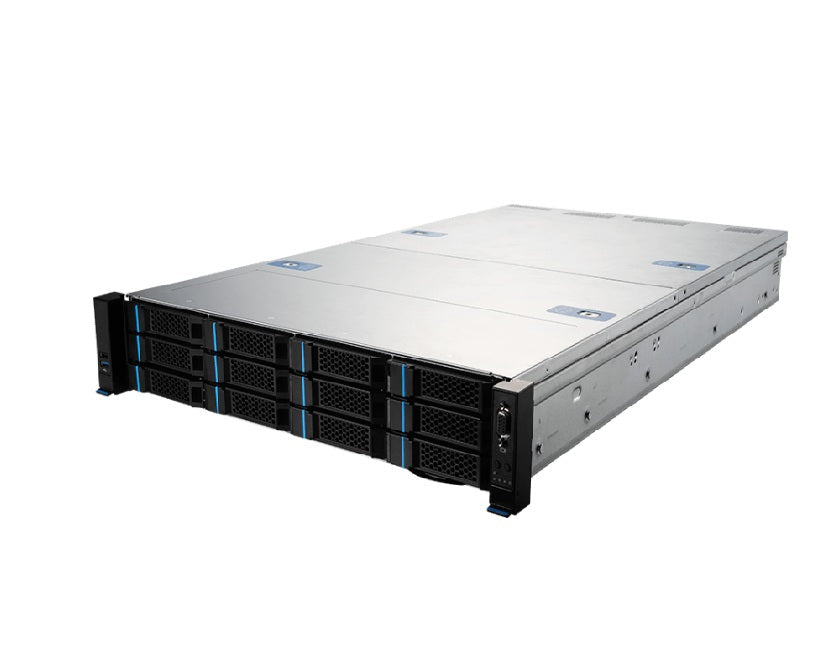

The MSI S2205-01-10G is a high-performance 2U server barebone system designed for enterprise workloads such as cloud computing, 5G edge telecom, and AI inference. It is built on the Intel C741 chipset and specifically features integrated dual 10G networking.



Specifications

Model Number:  S2205-01-10G

Brand:  MSI

Alt Part Number(s):  S2205-01-10G

Product Type:  Barebone Server

Technical Description

Brand:  MSI

Model Number:  S2205-01-10G

Processor Type:  Intel Xeon Scalable Processors

Processor Core:  120 Core/240Thread

Processor Speed:  up to ~4.0 GHz

Processor Power:  up to 350W

Processor Socket:  (2) Intel LGA4677 sockets

Chipset Type:  Intel C741

Graphics Controller:  ASPEED AST2600

Networking Connectivity:  2 × 10Gb SFP+ ports (primary high-speed networking)

Number of Drive Bays:  (12) Hot-swap 3.5"/2.5" drive bays

Expansion Slots:  7 × PCIe 4.0 slots

Memory Supported:  8TB

RAID:  Intel SATA RAID 0/1/10/5

Memory Technology:  DDR5 SDRAM

Memory Speed:  upto 5600 MT/s (1DPC) and 4400 MT/s (2DPC)

Memory Slots:  32 DIMM Slots

Power Supply:  (1+1) Redundant 2000W CRPS 80PLUS Platinum

Form Factor:  2U Rackmount

Height:  3.5"

Width:  17.2"

Depth:  30.3"
