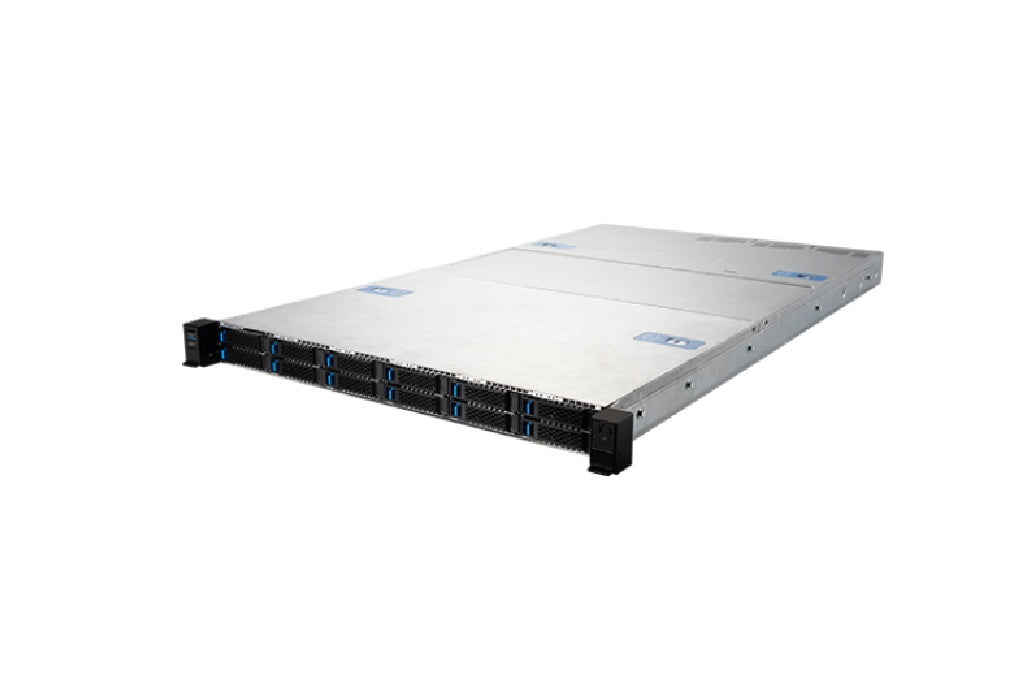

The MSI S1205-01-10G is a high-density 1U Rackmount Server Barebone specifically enhanced with dual 10GbE SFP+ networking. It is designed to handle memory-intensive and low-latency workloads such as Cloud Computing, 5G Edge Data Centers, and AI Inference



Specifications

Model Number:  S1205-01-10G

Brand:  MSI

Alt Part Number(s):  S1205-01-10G

Product Type:  Barebone Server

Technical Description

Brand:  MSI

Model Number:  S1205-01-10G

Model Series:  S1205

Processor Type:Dual Intel Xeon Scalable

Processor Socket: 2 x Intel LGA4677

Processor Core:  128-Core/256 threads

Processor 4th Gen Speed:  4800 MT/s (1DPC), 4400 MT/s (2DPC)

Processor 5th Gen Speed:   5600 MT/s (1DPC), 4400 MT/s (2DPC)

Processor Power:  205W

Chipset Type: Intel C741

Motherboard:  MS‑S321

Internal Storage:  (2) M.2 2280/22110 PCIe3.0 x2 ports from PCH

Networking:(2) 10G SFP+ Ethernet Ports powered by the Intel X710-BM2 controller

Drive Bays:  (12) Hot-swap 2.5" drive bays support U.2 PCIe 4.0 NVMe

RAID support:  Intel SATA RAID (0/1/5/10) and VROC header (optional)

Graphics Controller:  ASPEED AST2600

GPU Supported:  1–2 dual-width GPUs

Memory Capacity:  256GB Per Slot

Memory Supported:  8TB

Memory Technology:  DDR5

Memory Channels:  16 Channels

Memory Slots:  32 x DIMM

Expansion Slots:  4

Cooling:  (2) Passive air cooling modules, (8) 4056 Easy-Swap System Fans

Power Supply:  (1+1) Redundant 1300W CRPS 80+ Platinum

Form Factor:  1U Rackmount
