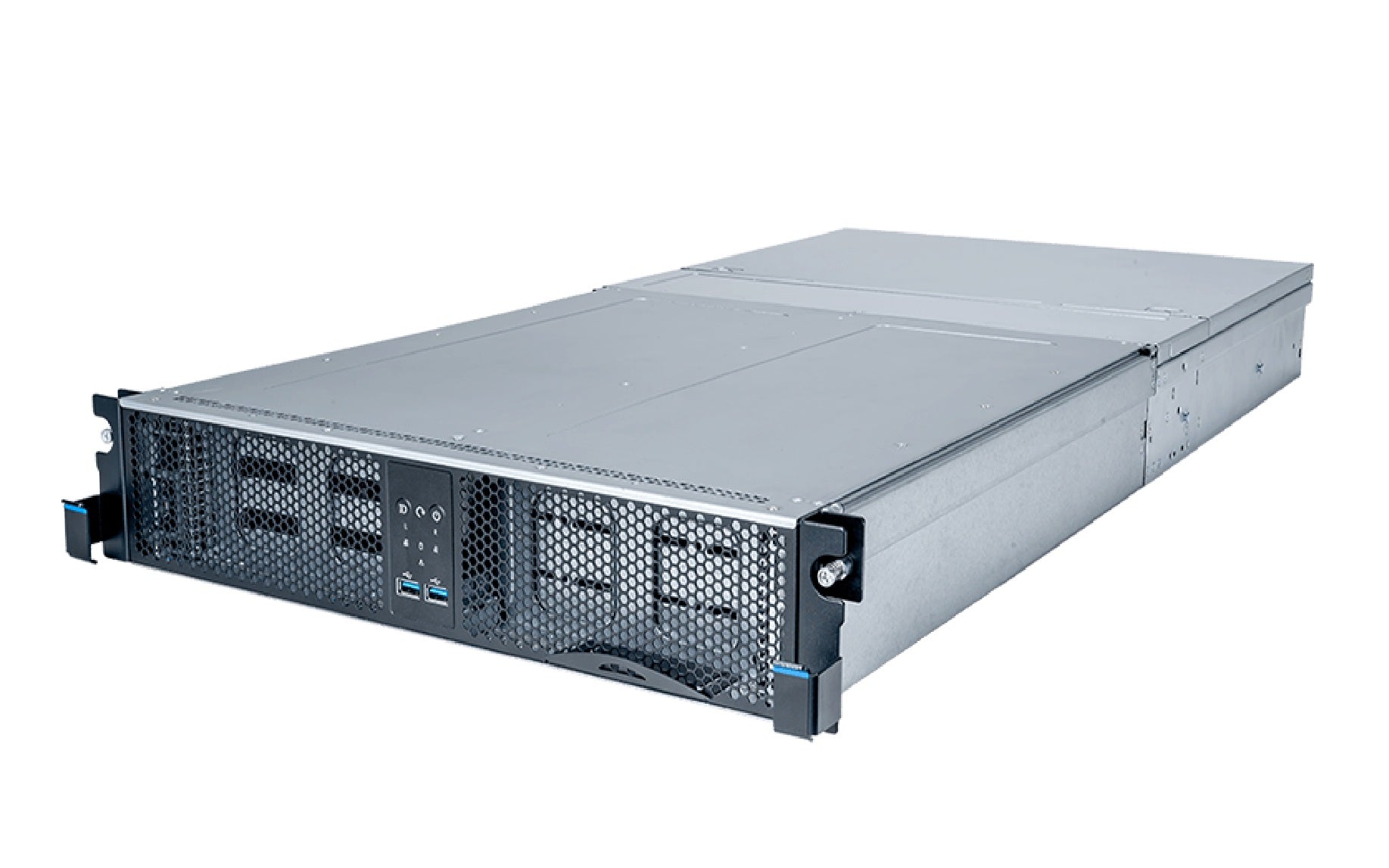

The MSI S3065S280RAS24U2 (part of the CS280-S3065 series) is a 2U high-density storage server designed for data-intensive enterprise workloads. It uses the MS-S402 motherboard and is optimized for the Intel® Xeon® 6 processor family



Specifications

Model Number:  S3065S280RAS24U2

Brand:  MSI

Alt Part Number(s):  S3065S280RAS24U2

Product Type:  Barebone Server

Technical Description

Brand:  MSI

Model Number:  S3065S280RAS24U2

Model Series: CS280-S3065

Processor Type:  Single Intel Xeon 6700E/ 6500P/6700P-Series Processor

Processor Core:  144-Core

Processor Thread:  172-Thread

Processor Power:  TDP Up to 350W

Processor Socket:  (1) Intel LGA 4710 (Socket E2)

Motherboard: MS-S402

Chipset Type:  System-on-a-Chip (SoC)

Graphics Controller:  ASPEED AST2600

Networking:  (2) 25G SFP28 and (2) 1000Base-T Ethernet ports, (1) PCIe 5.0 x16 OCP3.0 slot

RAID Levels:  NVMe RAID 0/1/5/10 support Intel VROC

Number of Drive Bays:  (24) Front hot-swap 3.5"/2.5" SATA3.0/SAS12G drive bays

(2) Rear hot-swap 2.5" U.2 PCIe5.0 x4 NVMe drive bays

Internal Storage:  (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports

Expansion Slots:  (2) FHHL PCIe 5.0 x16 slots (1) Mechanical support for Host Adapter

Memory Supported:  2TB

Memory Size:  256GB(RDIMM), 64GB(MCRDIMM)

Memory Technology:  DDR5

Memory Speed:  RDIMM-6400MT/s, MCRDIMM-8000MT/s

Memory Slots:  8 DIMM slots

Memory Channels:  8-Channels

Cooling:  (1) EVAC air cooling module, (6) 6038 Hot-swap system fans

Power Supply:  (1+1) Redundant 1300W CRPS 80 PLUS Titanium

Form Factor: 2U Rackmount

Height:  3.4"

Width:  17.2"

Depth:  34.6"
