[shortdesc]
- The MikroTik CRS304-4XG-IN is a compact yet powerful 10 Gigabit Ethernet switch with four high-speed ports, dual-boot support for RouterOS v7 and SwitchOS, and a fanless, silent operation design
[/shortdesc]
[properties]
| Property |
|
| Model |
CRS304-4XG-IN |
| Product Type |
Compact 10G Ethernet Switch |
| CPU |
98DX2528, Dual-Core 1.2 GHz |
| Architecture |
ARM 64-bit |
| RAM |
512 MB |
| Storage |
32 MB Flash |
| Operating System |
RouterOS v7 |
| License Level |
RouterOS Level 5 |
| Switch Chip Model |
98DX2528 |
| Cooling |
Passive (fanless) |
| MTBF |
Approximately 200,000 hours @ 25°C |
| Operating Temperature |
–40°C to +70°C |
[/properties]
[specifications]
| Specification |
|
| Ethernet Ports (1G) |
1 x 10/100/1000 Mbps |
| Ethernet Ports (1G/2.5G/5G/10G) |
4 x multi-gigabit RJ-45 (up to 10G) |
| DC Inputs |
4 (DC jack, 2-pin terminal, PoE-IN) |
| DC Jack Input Voltage |
12–57 V (redundant) |
| 2-Pin Terminal Input Voltage |
12–57 V |
| PoE In Support |
802.3af/at (36–57 V) |
| Max Power Consumption |
21 W |
| Power Without Attachments |
15 W |
| Passive Cooling |
Yes |
| IP Rating |
IP20 |
| Certification |
CE, EAC, RoHS |
[/specifications]
[accesories]
| Accessory |
|
| Power Adapter |
48V 0.95A power adapter (included in the box) |
| Mounting Kit |
Fastening set with DIN rail support (included in the box) |
[/accesories]

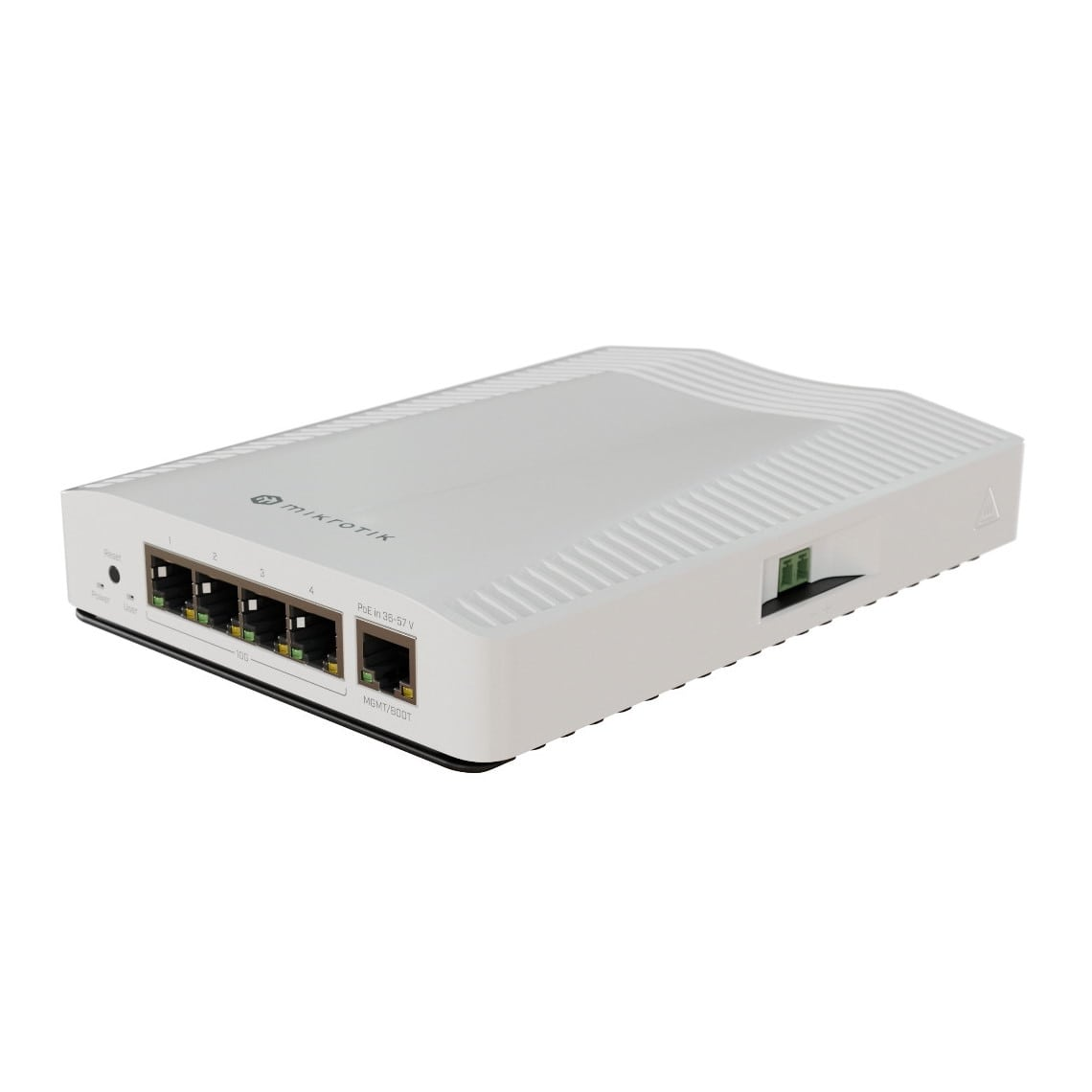

MikroTik 4x 10G Ports Ethernet Managed Switch (CRS304-4XG-IN)
The MikroTik CRS304-4XG-IN is a feature-rich, compact managed switch designed to simplify 10GbE networking without the need for extra modules. It comes with four 10GbE Ethernet ports, providing plug-and-play functionality with support for 10M, 100M, 1G, 2.5G, 5G, and 10G speeds. Additionally, an extra Gigabit Ethernet port is included for management purposes. With a fanless design and a built-in heat sink, this switch operates silently while ensuring high performance. The dual-core ARM CPU and Marvell Prestera switch chip enable advanced features such as VLANs, MAC filtering, traffic mirroring, and Layer 3 hardware offloading.
Key Features:
-
4x 10GbE Ports: Supports multiple speed options (10M/100M/1G/2.5G/5G/10G).
-
Fanless & Silent Operation: Aluminum enclosure doubles as a heat sink.
-
Dual Boot Support: Switch between RouterOS v7 and SwitchOS.
-
Compact & Lightweight: Ideal for stationary and mobile applications.
-
Multiple Powering Options: Two DC jacks, PoE-In (802.3af/at), and a 2-pin terminal.
-
Enhanced Networking Features: VLAN support, MAC filtering, bandwidth limitation, and Layer 3 offloading.
Technical Specifications:
-
Product Code: CRS304-4XG-IN
-
CPU: Dual-Core 1200 MHz
-
CPU Architecture: ARM 64-bit
-
RAM: 512 MB DDR4
-
Storage: 32 MB Flash
-
Number of 1G Ethernet Ports: 1
-
Number of 10G Ethernet Ports: 4
-
Switch Chip Model: 98DX2528
-
Operating System: RouterOS v7 (License Level 5) / SwitchOS
-
Operating Temperature: -40°C to +70°C
-
Max Power Consumption: 21W
-
Power Inputs: 4 (2x DC Jack, 2-pin terminal, PoE-In)
-
PoE-In Input Voltage: 36-57V (802.3af/at)
-
DC Input Voltage: 12-57V
-
Dimensions: 176 x 128 x 35 mm
-
Included Accessories: 48V 0.95A power adapter, DIN rail mount
