[shortdesc]400G QSFP-DD uplinks, 200G QSFP56 ports, 50G SFP56 interfaces, RouterOS v7 L6, dual redundant power supplies[/shortdesc]
[properties]
| Model |
CRS812-8DS-2DQ-2DDQ-RM |
| Brand |
MikroTik |
| Product Type |
Cloud Router Switch |
| CPU |
Quad-Core AL52400 2000 MHz |
| CPU Architecture |
ARM 64-bit |
| RAM |
4 GB DDR4 |
| Storage |
512 MB NAND |
| Ethernet Ports |
2 × 10M/100M/1G/10G Ethernet |
| SFP56 Ports |
8 × 50G SFP56 |
| QSFP56 Ports |
2 × 200G QSFP56 |
| QSFP56-DD Ports |
2 × 400G QSFP56-DD |
| Switch Chip |
98DX7335 |
| Operating System |
RouterOS v7 (License Level 6) |
| Dimensions |
443 × 268 × 44 mm |
| Operating Temperature |
-10°C to +50°C |
| Form Factor |
Rackmount |
[/properties]
[specifications]
| AC Inputs |
2 |
| AC Input Range |
100–240 V |
| Power Adapter Nominal Voltage |
12 V |
| Power Adapter Nominal Current |
20.8 A |
| Max Power Consumption (without attachments) |
81 W |
| Max Power Consumption |
134 W |
| Cooling |
4 × Hot-swap cooling fans |
| Power Supply |
Dual-redundant hot-swap power supplies |
[/specifications]
[accesories]
| Included |
2 Power cords (included in the box); Rackmount ears (included in the box); Rackmount rear support ears (included in the box); Fastening set (included in the box) |
| Compatible Accessories |
400G DAC 1 m (DDQ+DA0001); 400G DAC 3 m (DDQ+DA00031); 400G 100 m Optical Transceiver (DDQ+85MP01D) |
[/accesories]
Affordable Entry Into True 400G Networking

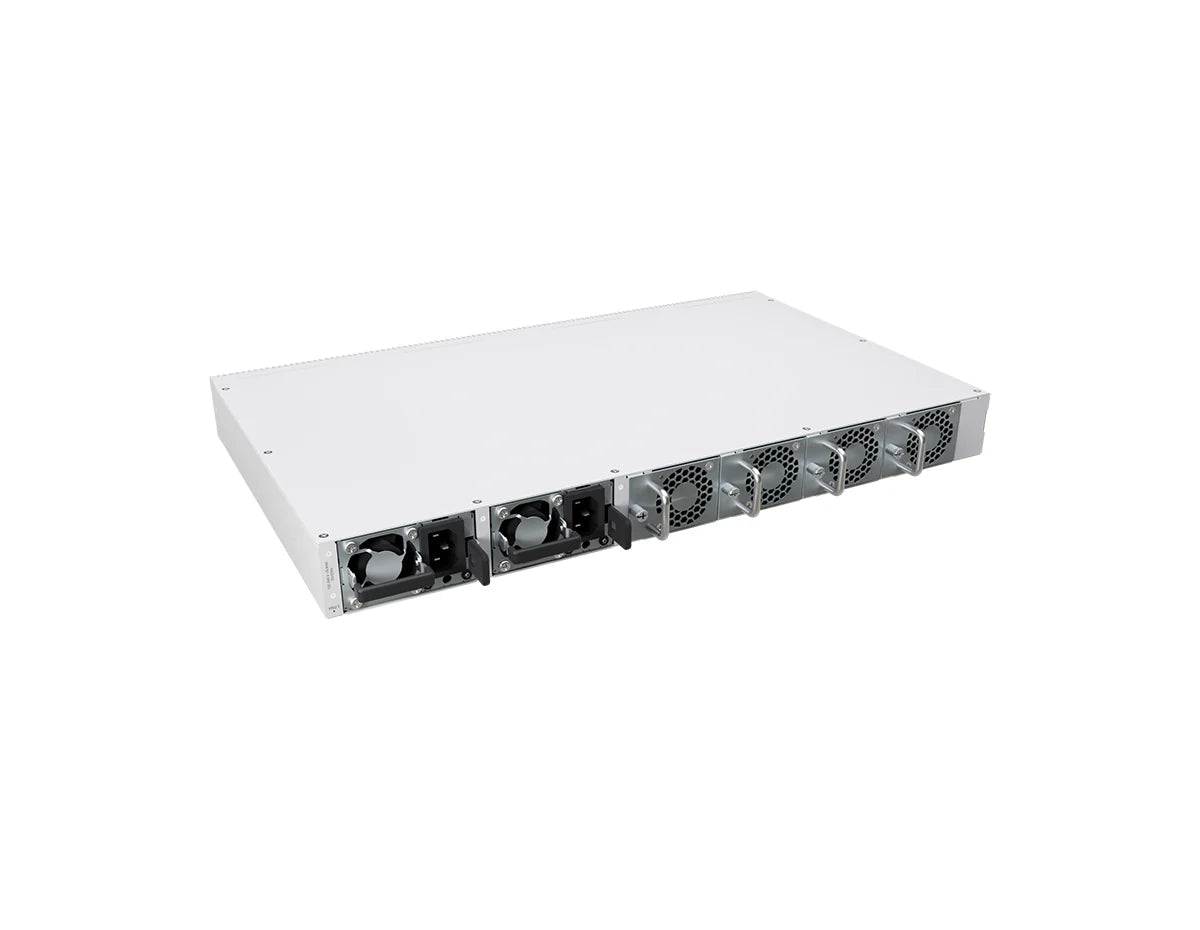

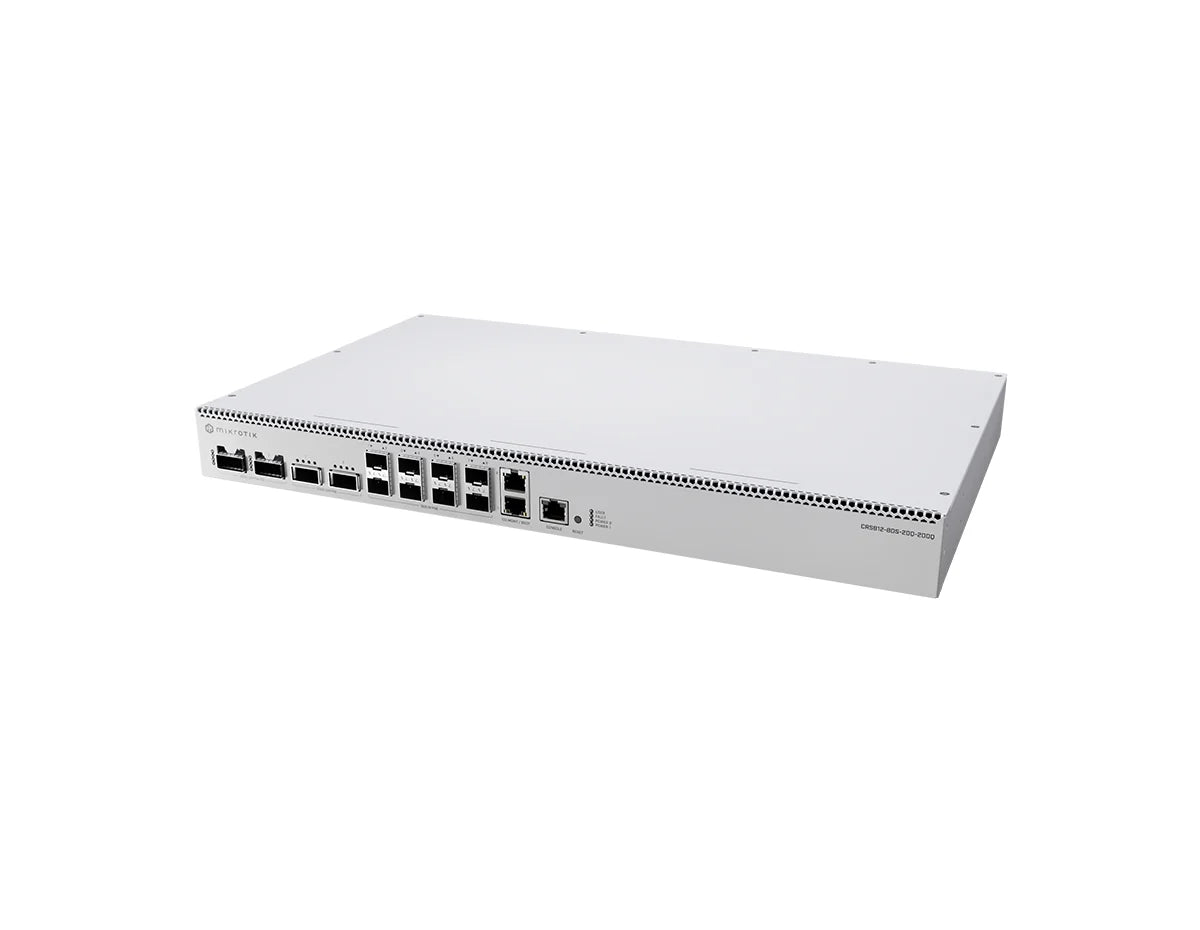

The MikroTik CRS812-8DS-2DQ-2DDQ-RM delivers high-density 400 Gigabit networking without the traditional cost and complexity. Designed for modern data centers, service providers, and high-performance environments, this switch allows seamless scaling from legacy 10G to cutting-edge 400G within a single managed platform powered by RouterOS v7.
Equipped with a modern Marvell switch chip and a quad-core ARM CPU, the CRS812 provides advanced switching, routing, and traffic management capabilities trusted across millions of MikroTik deployments. It is an ideal solution for organizations planning future-ready network upgrades without disruptive forklift replacements.
Key Benefits & Features
-
400G Ready Architecture: Two QSFP56-DD ports support up to 400 Gbps per port, enabling high-capacity spine or aggregation connectivity.
-
Flexible Speed Scaling: Native support for 10G, 25G, 50G, 100G, 200G, and 400G interfaces allows gradual network evolution. Ports also support breakout modes for maximum versatility.
-
High-Density Access Ports: Eight SFP56 ports deliver up to 50G each, ideal for compute, storage, or high-speed edge devices.
-
Advanced RouterOS v7: License Level 6 enables enterprise-grade routing, switching, VLANs, QoS, and traffic control.
-
Built for Reliability: Dual hot-swap power supplies and four hot-swap cooling fans ensure continuous operation.
Ideal Use Cases
- Top-of-rack or leaf switch with 400G uplinks to spine layers
- Campus core networks bridging 10G legacy and 50G access
- Service provider aggregation nodes
- AI clusters and high-performance computing environments
- Media production and east-west traffic-heavy workflows
Technical Specifications
-
CPU: Quad-core AL52400 ARM 64-bit, 2.0 GHz
-
Memory: 4 GB DDR4 RAM
-
Storage: 512 MB NAND
-
Ports: 2x 1G/10G Ethernet, 8x 50G SFP56, 2x 200G QSFP56, 2x 400G QSFP56-DD
-
Switch Chip: Marvell 98DX7335
-
Operating System: RouterOS v7, License Level 6
-
Power Consumption: 81 W typical, 134 W max
-
Form Factor: 1U rack-mountable
-
Operating Temperature: -10°C to +50°C
