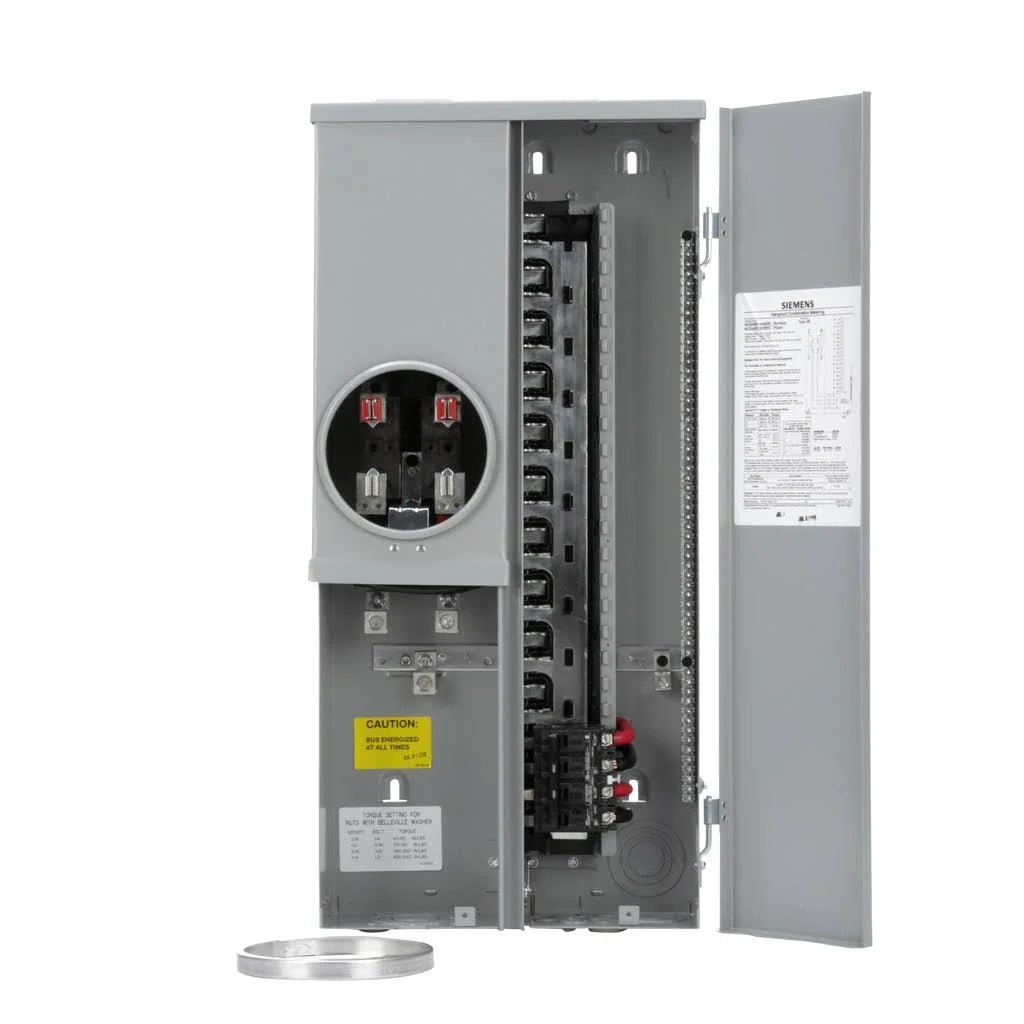

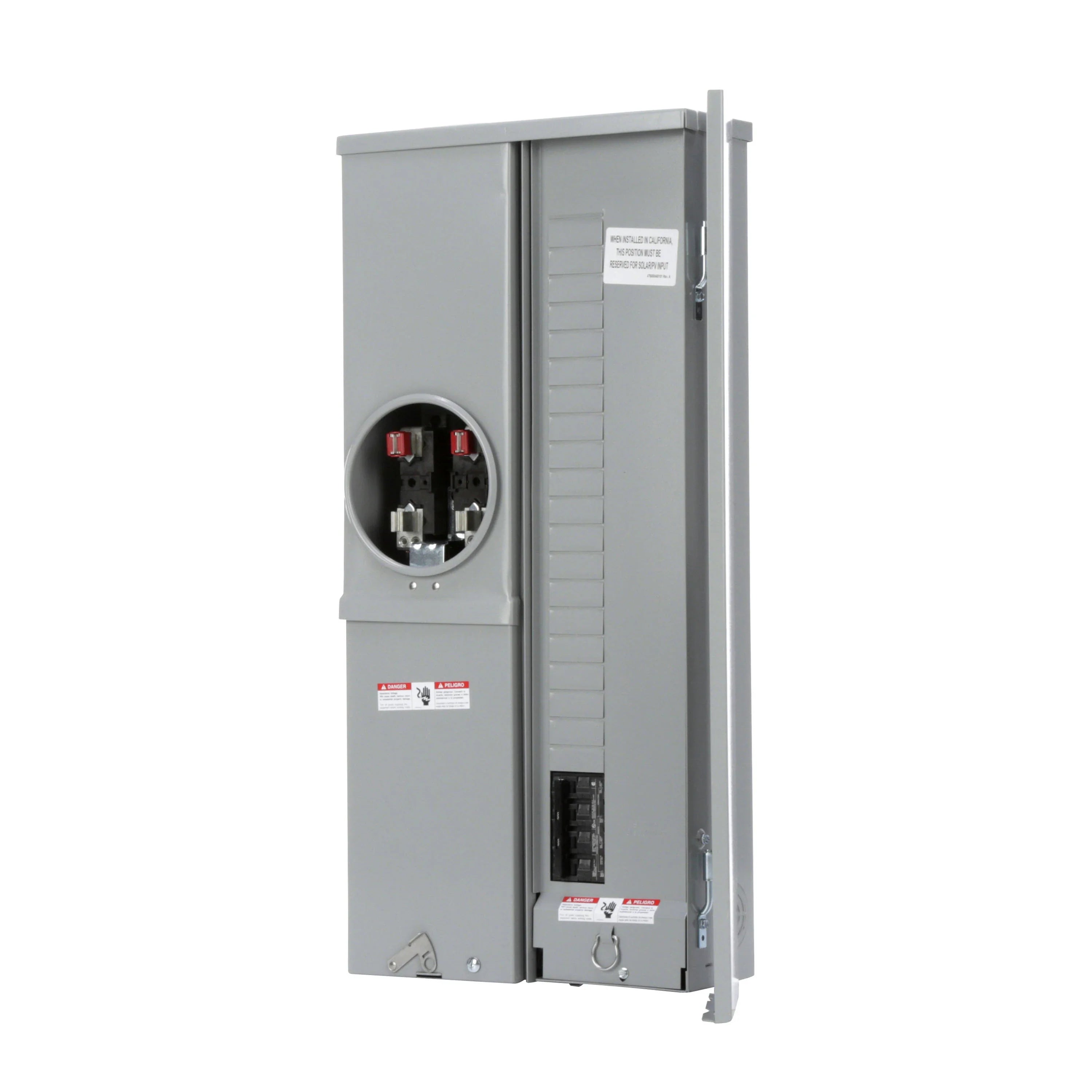

The Siemens MC2040B1200ESC is a combination meter load center designed for residential and light commercial electrical service applications. Rated for 200 amps at 120/240 VAC single-phase power, the Siemens MC2040B1200ESC integrates meter socket and distribution panel functionality into a single enclosure. Its ring-type meter configuration and main disconnect capability provide reliable service entrance power distribution.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Electrical Distribution |
| Part Number |
MC2040B1200ESC |
| Subcategory |
Meter Load Centers |
| Product Series |
Meter Combos |
| Device Type |
Combination Meter Load Center |
| Rated Current |
200 Amp |
| Voltage Rating |
120 / 240 VAC |
| Phase Configuration |
1 Phase |
| Wire System |
3 Wire |
| Meter Type |
Ring Type |
| Mounting Type |
Surface Mount |
| Cable Entry |
Top / Bottom |
| Application |
Service Entrance Equipment |
| Enclosure Type |
Outdoor Electrical Enclosure |
| Size |
1 |
| Weight |
18 kg |
Information About MC2040B1200ESC
The MC2040B1200ESC is part of the Siemens Meter Combo series, engineered to combine utility metering and circuit distribution within a single compact unit. Designed for service entrance installations, it includes an integrated meter socket and load center with main disconnect functionality to simplify electrical system layouts. The unit supports single-phase, three-wire electrical systems commonly used in residential and small commercial buildings. With flexible cable entry options and surface mounting capability, the load center provides a practical solution for power distribution and circuit protection.
Key Features:
- Combination Meter Load Center: Integrates meter socket and load center into one compact service entrance unit.
- 200 Amp Service Rating: Supports high-capacity electrical distribution for residential and light commercial systems.
- 120/240 VAC Single-Phase Operation: Designed for standard North American single-phase electrical systems.
- Ring-Type Meter Socket: Secure ring-style meter mounting compatible with utility metering requirements.
- Main Disconnect Combination: Provides integrated main disconnect for safe power isolation at the service entrance.
- Surface Mount Installation: Designed for surface mounting to simplify installation in service areas.
- Top and Bottom Cable Entry: Flexible wiring options for convenient conduit and cable routing.
- Meter Combo Series Construction: Durable Siemens enclosure designed for reliable outdoor service entrance use.
The MC2040B1200ESC delivers the reliability and precision required for service entrance power distribution and electrical metering applications.
