Description

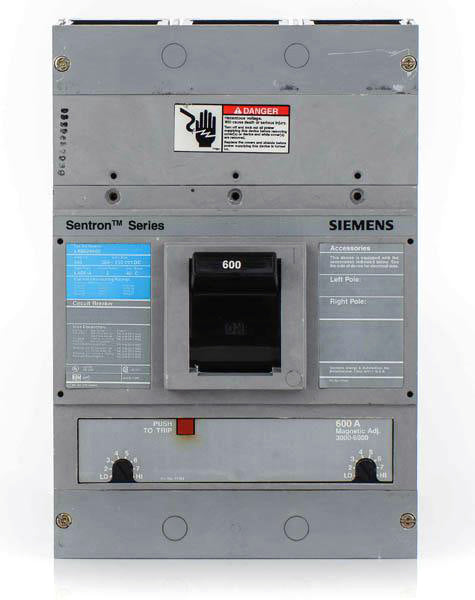

The Siemens LXD62B600 is a 2-pole Sentron Series molded case circuit breaker engineered for dependable protection of low-voltage electrical systems up to 600 amps and 600 volts AC. It features a thermal-magnetic trip unit with long-time and instantaneous trip functions, ensuring precise overload and short-circuit response. Designed for demanding commercial and industrial environments, this breaker delivers consistent performance with a 35 kA interrupting capacity at 480 VAC and a durable LD frame construction.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Circuit Breakers |
| Part Number |
LXD62B600 |
| Subcategory |
Molded Case Circuit Breakers |
| Series |
Sentron LD6 |
| Frame Type |
LD |
| Rated Current |
600 A |
| Voltage Rating |
600 VAC |
| Interrupting Rating |
35 kA @ 480 VAC / 25 kA @ 600 VAC |
| Number of Poles |
2 |
| Trip Type |
Thermal Magnetic |
| Trip Functions |
LI – Long-Time and Instantaneous |
| Connection Type |
Bolt-On (No Lugs Installed) |
| Mounting Type |
Bolt-On |
| Approvals |
UL 489, IEC 60947-2, CSA |
| Phase |
Single-Phase |
| Operating Frequency |
50/60 Hz |
| Reverse Feed Capable |
Yes |
| Compliance |
RoHS Compliant, REACH Certified |
| Country of Origin |
Mexico |
| Dimensions (HxWxD) |
6.5 in x 8.7 in x 14.6 in |
| Weight |
15.2 lb (6.9 kg) |
Information About LXD62B600
The LXD62B600 is part of the Siemens Sentron LD6 Series, known for its robust molded case design and reliable thermal-magnetic protection. This breaker utilizes an LI (Long-Time and Instantaneous) trip function, providing accurate circuit protection and coordination for power distribution systems. Its bolt-on mounting configuration allows for secure installation within Siemens panelboards and switchboards, supporting efficient maintenance and replacement. Built to comply with UL 489 and IEC 60947-2 standards, the LXD62B600 ensures high performance, safety, and compatibility with modern electrical infrastructure.
Key Features:
- High Current Rating: Handles up to 600A at 600VAC for large-scale power systems.
- Thermal-Magnetic Trip Unit: Provides reliable protection through both overload and short-circuit sensing.
- LI Trip Functions: Combines Long-Time and Instantaneous trip features for flexible fault response.
- Bolt-On Design: Enables secure mounting and simplified installation within compatible panels.
- Industrial-Grade Frame: LD6 frame offers rugged construction for high-demand applications.
- UL and IEC Compliance: Certified to UL 489 and IEC 60947-2 standards for global reliability.
- No Lugs Installed: Allows customized termination options for system-specific configurations.
- Reverse Feed Capable: Designed for applications requiring reverse-fed circuit configurations.
The LXD62B600 delivers the reliability and precision required for industrial power distribution and protection in heavy-duty electrical systems.
