Description

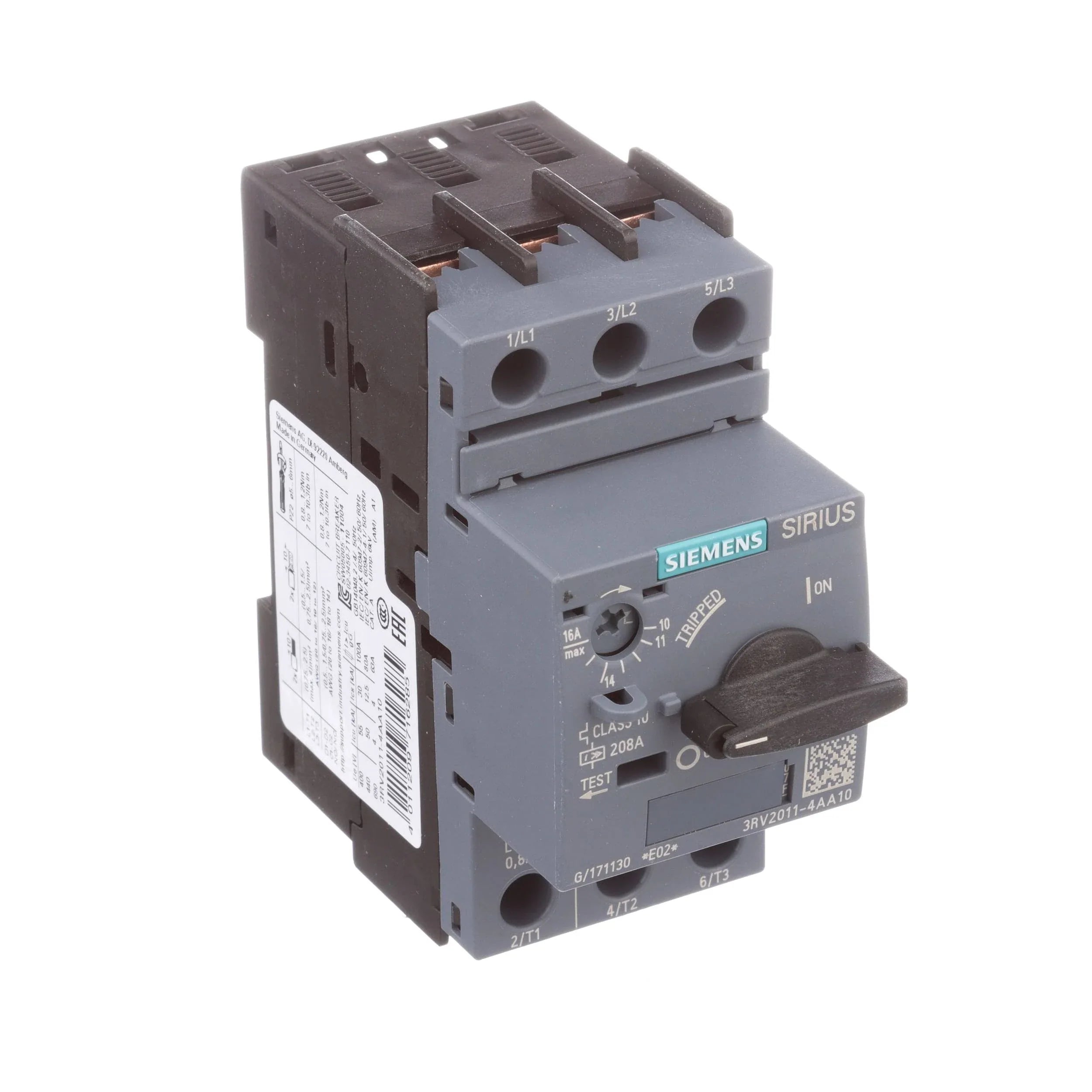

The Siemens 3RV2011-4AA10 is a SIRIUS series motor protection circuit breaker designed to deliver reliable protection and switching performance for small motors and equipment in industrial applications. With a Class 10 tripping characteristic and an adjustable thermal release, this device ensures safe operation and easy integration into modern control panels.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
|
| Part Number |
3RV2011-4AA10
|
| Subcategory |
Molded Case Circuit Breaker |
| Series |
SIRIUS 3RV2 |
| Frame Size |
S00 |
| A-Release (Thermal) |
10...16 A |
| N-Release (Magnetic) |
208 A |
| Trip Class |
Class 10 |
| Number of Poles |
3 |
| Voltage |
460 V AC, 3-Phase, 50/60 Hz |
| Switching Capacity |
Standard |
| Connection Type |
Screw Terminals |
| Mounting Type |
DIN Rail |
| Weight |
0,359 Kg |
Information About 3RV2011-4AA10
The 3RV2011-4AA10 circuit breaker is housed in a compact S00 size frame, making it ideal for space-constrained installations. It provides adjustable overload protection with an A-release (thermal release) adjustable range from 10 to 16 amps, and an instantaneous magnetic release (N-release) at 208 amps, ensuring rapid response to short-circuit faults. Supporting 3-pole, 3-phase operation at up to 460 volts AC (50/60 Hz), the 3RV2011-4AA10 is suitable for a variety of industrial motor control and protection applications.
Key Features:
- Adjustable Overload Protection: Thermal release (A-release) adjustable from 10 to 16 amps, ensuring precise protection for different motor sizes.
- High Short-Circuit Protection: Magnetic release (N-release) rated at 208 amps provides rapid disconnection in case of short-circuit faults.
- Compact S00 Size: Small footprint design, ideal for space-saving installation in control panels.
- 3-Pole, 3-Phase Design: Supports standard industrial motor applications up to 460V AC at 50/60 Hz, enabling versatility in motor protection.
- Class 10 Tripping: Offers rapid response to overloads, protecting motor windings from damage.
- Screw Terminal Connections: Secure and reliable wiring for robust performance in vibration-prone industrial environments.
- DIN Rail Mountable: Supports quick and easy installation, maintenance, and panel upgrades.
- Standard Switching Capacity: Designed for typical industrial motor protection applications, ensuring reliable switching under normal operating conditions.
The Siemens 3RV2011-4AA10 motor protection circuit breaker is a reliable and compact solution for safeguarding motors in industrial automation systems.
