Description

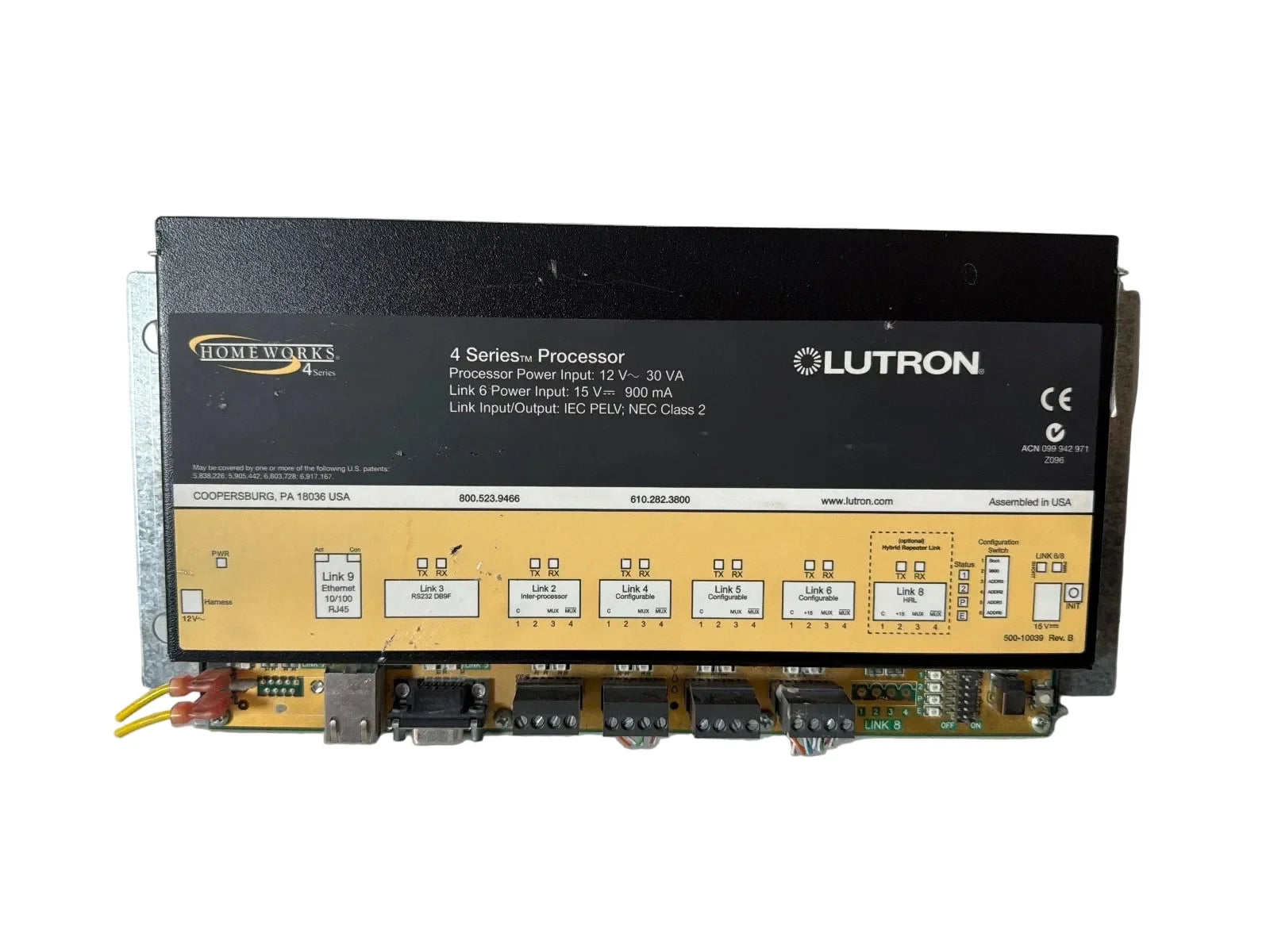

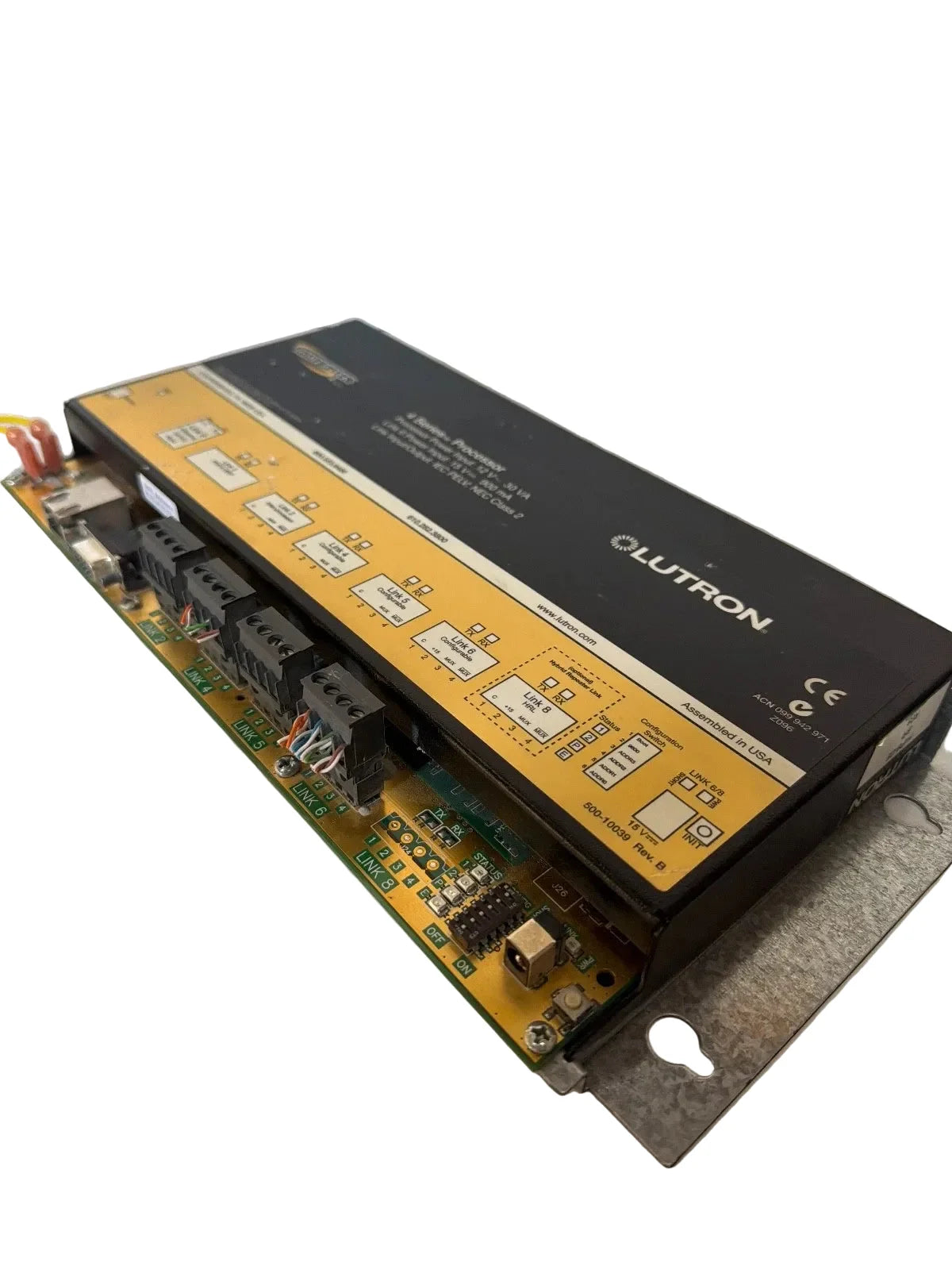

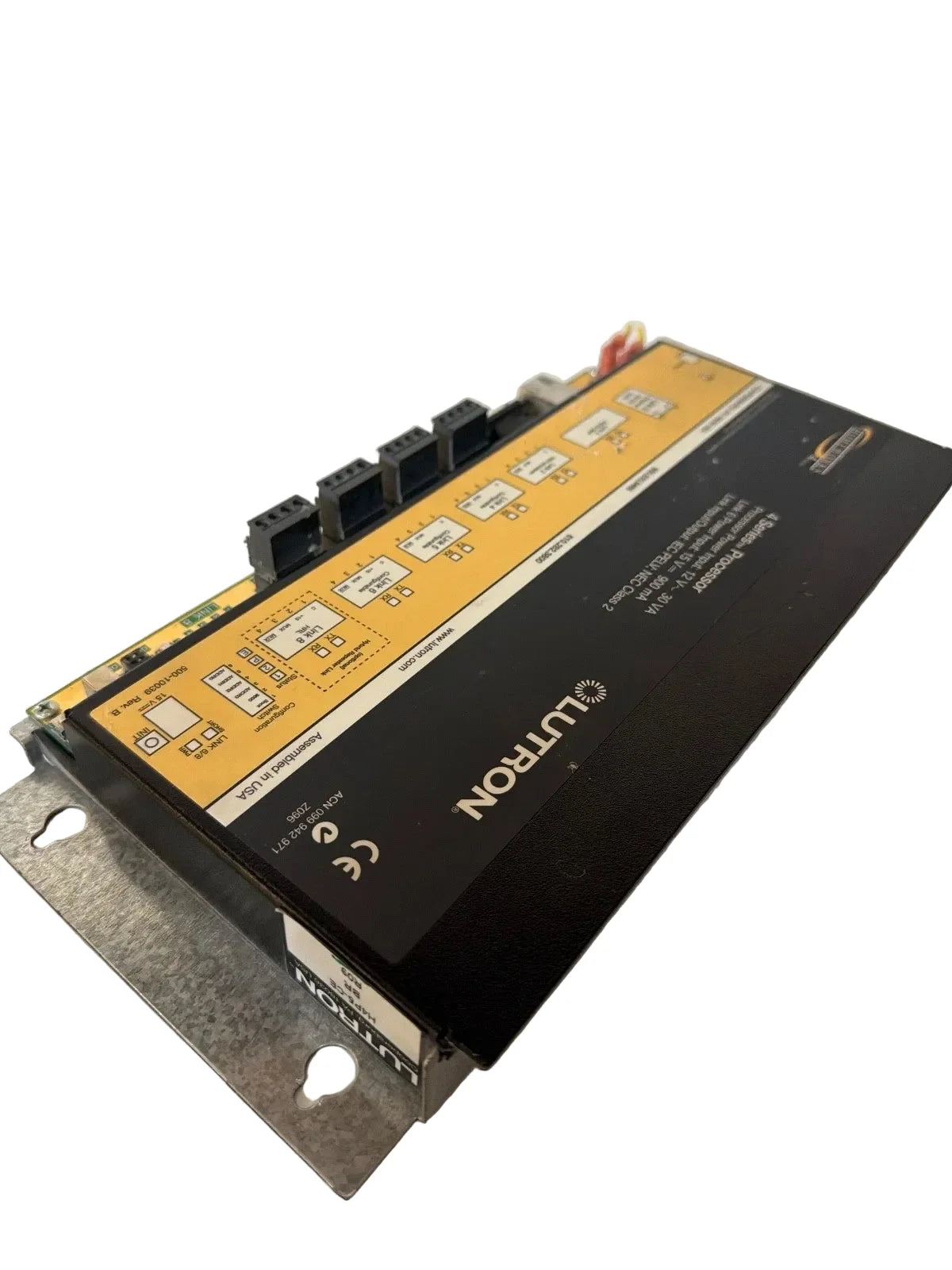

The Lutron H4P5-CE is a Series 4 processor from the HomeWorks Illumination range, designed to control complex residential lighting and shading systems. It supports up to 256 zones and enables integration with both Lutron and third-party control systems. Installation and programming must be performed by a certified Lutron engineer.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
|
| Part Number |
H4P5-CE |
| Subcategory |
Lighting Controller / Processor |
| Product Line |
HomeWorks Illumination |
| Processor Series |
Series 4 |
| Zones Controlled |
Up to 256 zones |
| Keypad LED Support |
150 per processor |
| Communication Interfaces |
Ethernet, RS-232 |
| Hybrid Repeater Link |
Not included
|
| Programming Method |
Lutron software (requires certified engineer) |
| Integration Support |
Compatible with third-party control systems |
| Mounting |
HomeWorks Power Panel |
| Dimming Interface |
Maestro, Grafik Eye, Wallbox Power Modules |
| Max System Size |
Up to 16 processors (Series 4 and 8 combined) |
| Application |
Centralized lighting/shading control |
| Weight |
2.5 lbs (approx. 1.13 kg) |
Information About H4P5-CE
The H4P5-CE is a fourth-generation HomeWorks processor designed by Lutron for centralized control of lighting and motorized shading systems. It supports Ethernet and RS-232 communication, as well as up to 256 zones and 150 keypad LEDs per processor. Housed within a HomeWorks power panel, it enables seamless dimming control through Maestro, Grafik Eye, or wallbox modules. The system can include up to 16 processors and integrates with third-party automation platforms for complete smart home customization.
Key Features:
- HomeWorks Series 4 Processor: Part of Lutron’s Illumination range for high-end automation.
- Controls Up to 256 Zones: Suitable for large residential systems.
- 150 Keypad LEDs per Processor: Provides feedback and status indicators throughout the property.
- Flexible Communication: Includes Ethernet and RS-232 ports for system integration.
- Third-Party Compatible: Easily integrates with other home automation systems.
- Modular System Support: Works alongside Series 8 processors in mixed configurations.
- Panel Mounting: Installs directly into a HomeWorks power panel.
A robust central processor for whole-home lighting and shading control in luxury smart homes.
