Description

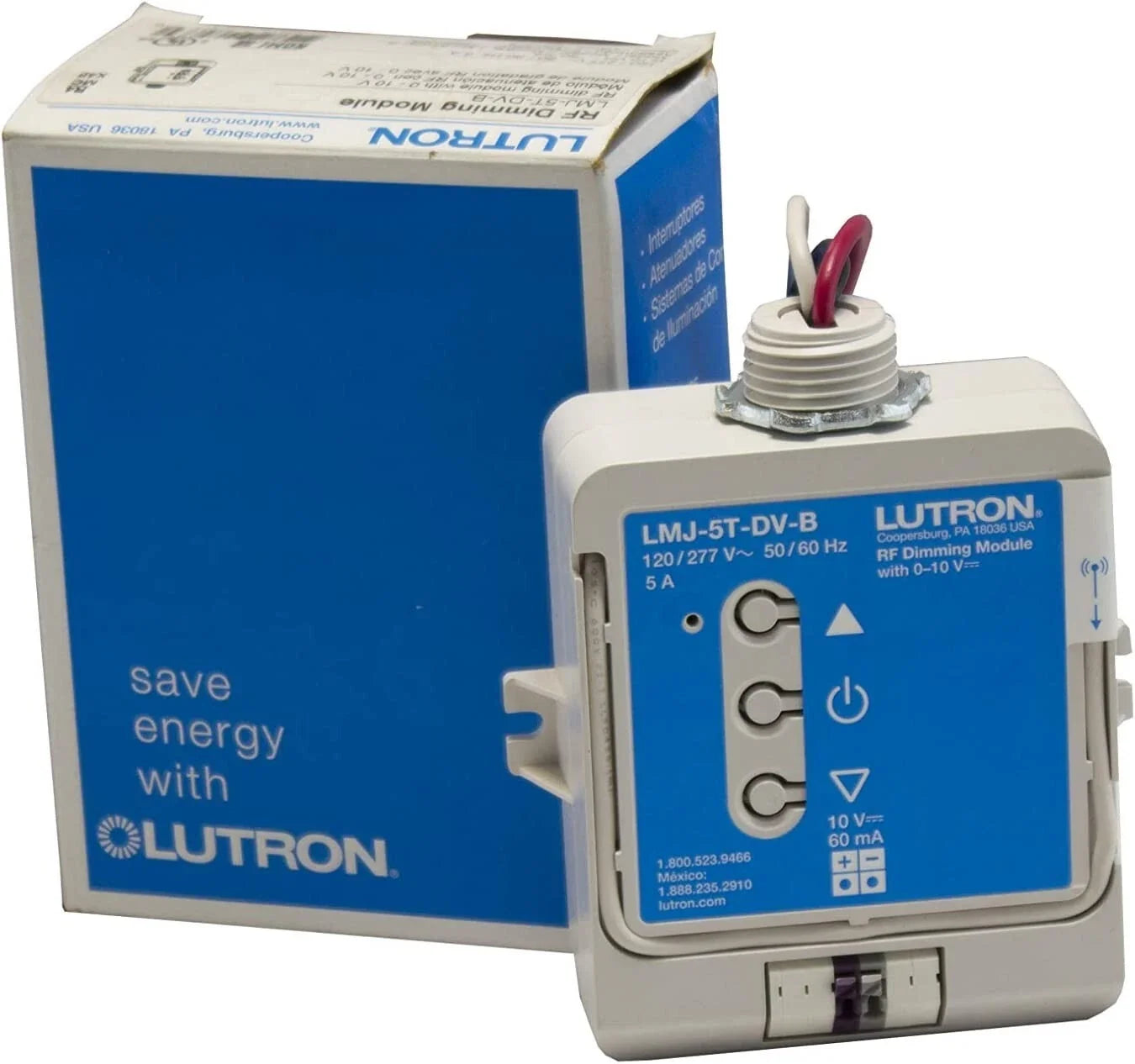

The Lutron LMJ-5T-DV-B RF Dimming Module is a wireless 0–10 V dimming control unit designed for integration with Lutron RadioRA 2 and HomeWorks systems. Operating on 120–277 VAC, it provides reliable, flicker-free dimming of compatible LED and fluorescent fixtures using Clear Connect RF technology for secure and precise wireless communication.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
Lighting Control |
| Part Number |
LMJ-5T-DV-B |
| Subcategory |
Dimming Modules |
| Type |
RF Dimming Module |
| System Compatibility |
RadioRA 2 Inclusive, HomeWorks QS |
| Communication Protocol |
Clear Connect RF |
| Voltage Rating |
120/277 VAC, 50/60 Hz |
| Load Capacity |
Up to 5 A |
| Control Signal |
0–10 VDC, up to 60 mA sourcing or sinking |
| Operation Method |
Remote wireless dimming |
| Material |
ABS/Plastic housing |
| Color/Finish |
White |
| Mounting Type |
Junction box, ½" (21 mm) knockout opening |
| Installation Location |
Wall or ceiling mount, indoor use |
| Trim Adjustment |
Configurable high- and low-end dimming trim |
| Smart Home Compatibility |
Lutron, Apple HomeKit, Google Home, Amazon Alexa (via processor) |
| Current Type |
AC/DC |
| Features |
App-controlled, remote control, RF communication |
| Plenum Rating |
NEC® 300.22(C)(3) compliant |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Certifications |
UL Listed, FCC Compliant, NOM Certified |
| Dimensions |
4.4 in L × 2.8 in W × 1.5 in H (approx.) |
| Weight |
0.4 lb (approx.) |
Information About LMJ-5T-DV-B
The LMJ-5T-DV-B is part of Lutron’s Clear Connect RF PowPak module line, engineered to simplify lighting control installation while providing high-performance dimming capabilities. It supports both 0–10 V dimming and line-voltage switching up to 5 amps, automatically sourcing or sinking up to 60 mA for third-party fixtures. Designed for ceiling or wall junction box mounting, the module is suitable for plenum spaces per NEC® 300.22(C)(3). It features configurable high- and low-end trim settings for fine-tuned light output and seamless integration with Lutron RadioRA 2 Inclusive or HomeWorks software for commissioning and control.
Key Features:
- Clear Connect RF Technology: Provides reliable wireless communication with Lutron control systems.
- 0–10 V Dimming Interface: Sources or sinks up to 60 mA for precise control of compatible LED and fluorescent drivers.
- High Load Capacity: Switches line voltage up to 5 A at 120/277 VAC.
- Configurable Trim Settings: Adjustable high and low trim levels for optimized dimming performance.
- Flexible Mounting: Installs easily in a standard ½" (21 mm) knockout on a junction box or ceiling enclosure.
- System Integration: Works with RadioRA 2 and HomeWorks QS systems (requires Inclusive software).
- Smart Home Compatibility: Integrates with Lutron, Apple HomeKit, Amazon Alexa, and Google Home via system gateway.
- Plenum Rated: NEC® 300.22(C)(3) compliant for installation in air-handling spaces.
The LMJ-5T-DV-B delivers the reliability and precision required for modern wireless dimming control in residential and commercial applications.
