Description

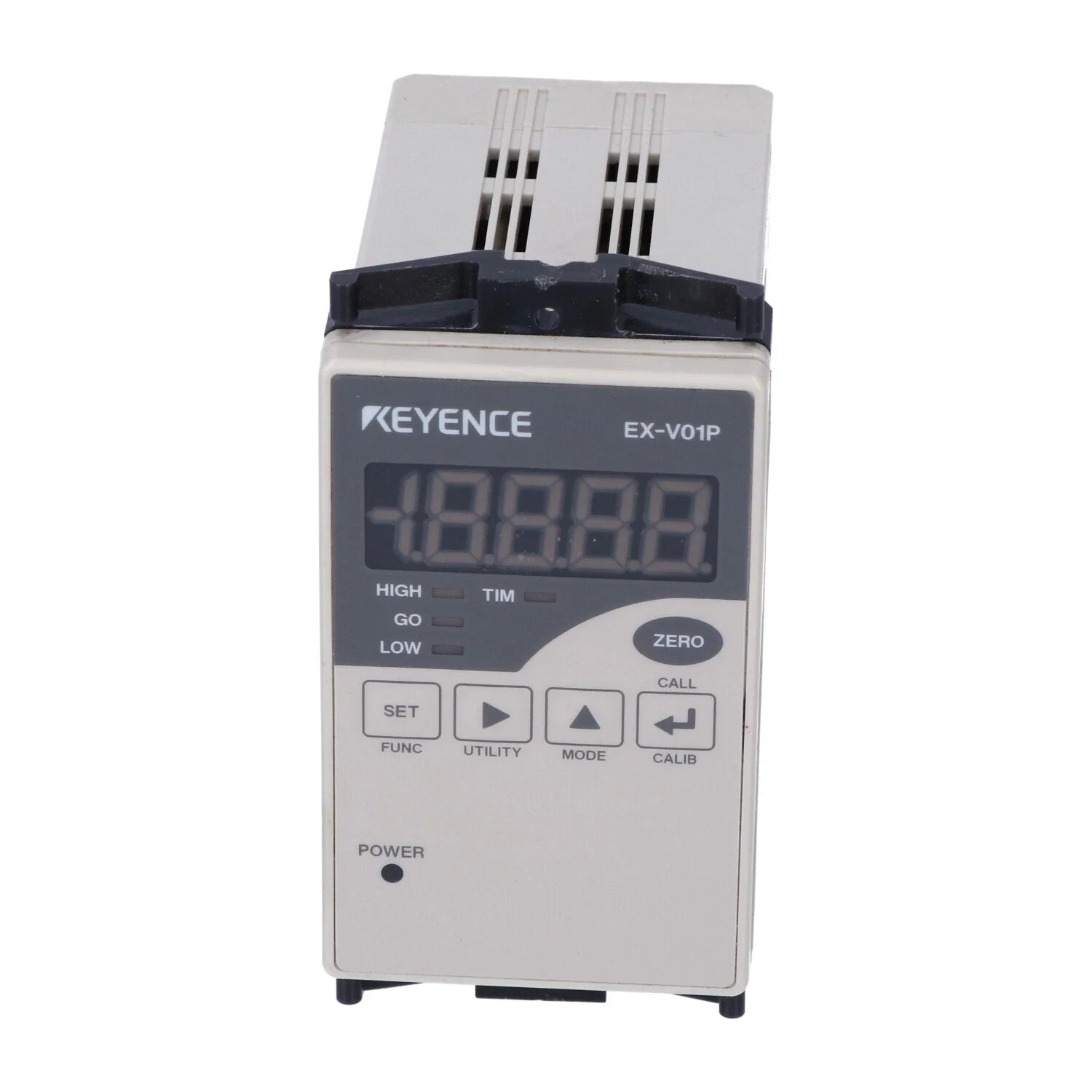

The Keyence EX-V01P is a high-precision amplifier unit designed for displacement measurement and sensor signal processing in industrial applications. Featuring PNP output configuration and high-speed sampling, the EX-V01P ensures accurate and stable measurement results. This amplifier is optimized for integration with compatible Keyence sensors in precision inspection and automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Keyence |
| Category |
Sensors |
| Part Number |
EX-V01P |
| Subcategory |
Amplifier Units |
| Type |
Amplifier Unit (PNP) |
| Measuring Range |
0 to 1 mm |
| Display Range |
-19,999 to +19,999 |
| Linearity |
±0.3% of F.S. |
| Resolution |
0.4 µm |
| Sampling Rate |
Up to 40,000 samples/sec |
| Display Type |
7-segment, 2-color LED |
| Response Time |
0.075 ms |
| Analog Output |
±5 V |
| Control Output |
PNP open collector (100 mA max) |
| Power Supply |
24 V DC ±10% |
| Current Consumption |
Max. 240 mA |
| Operating Temperature |
0°C to +50°C |
| Humidity Range |
35–85% RH (non-condensing) |
| Weight |
Approx. 235 g |
Information About EX-V01P
The EX-V01P is part of Keyence’s EX-V series, developed for high-speed displacement and dimensional measurement applications. It is designed to work with compatible sensor heads, providing precise signal amplification and processing for accurate readings. The unit features a compact cylindrical design with integrated display and flexible output options, allowing easy installation in tight spaces. With advanced functions such as digital filtering, auto-zero adjustment, and multiple measurement modes, it supports a wide range of industrial inspection tasks.
Key Features:
- High-Speed Sampling: Supports up to 40,000 samples per second for real-time measurement
- Precision Measurement Resolution: Achieves resolution down to 0.4 µm for accurate detection
- PNP Output Configuration: Compatible with industrial control systems
- Wide Measurement Range: Supports displacement measurement from 0 to 1 mm
- Fast Response Time: 0.075 ms response for high-speed applications
- Integrated LED Display: 7-segment, 2-color display for easy monitoring
- Flexible Output Settings: Configurable upper/lower limits with multiple pattern settings
- Analog Output Capability: ±5 V output for external system integration
- Advanced Signal Processing: Includes digital filtering, auto-zero, and offset functions
- Compact Cylindrical Design: Space-saving installation for industrial equipment

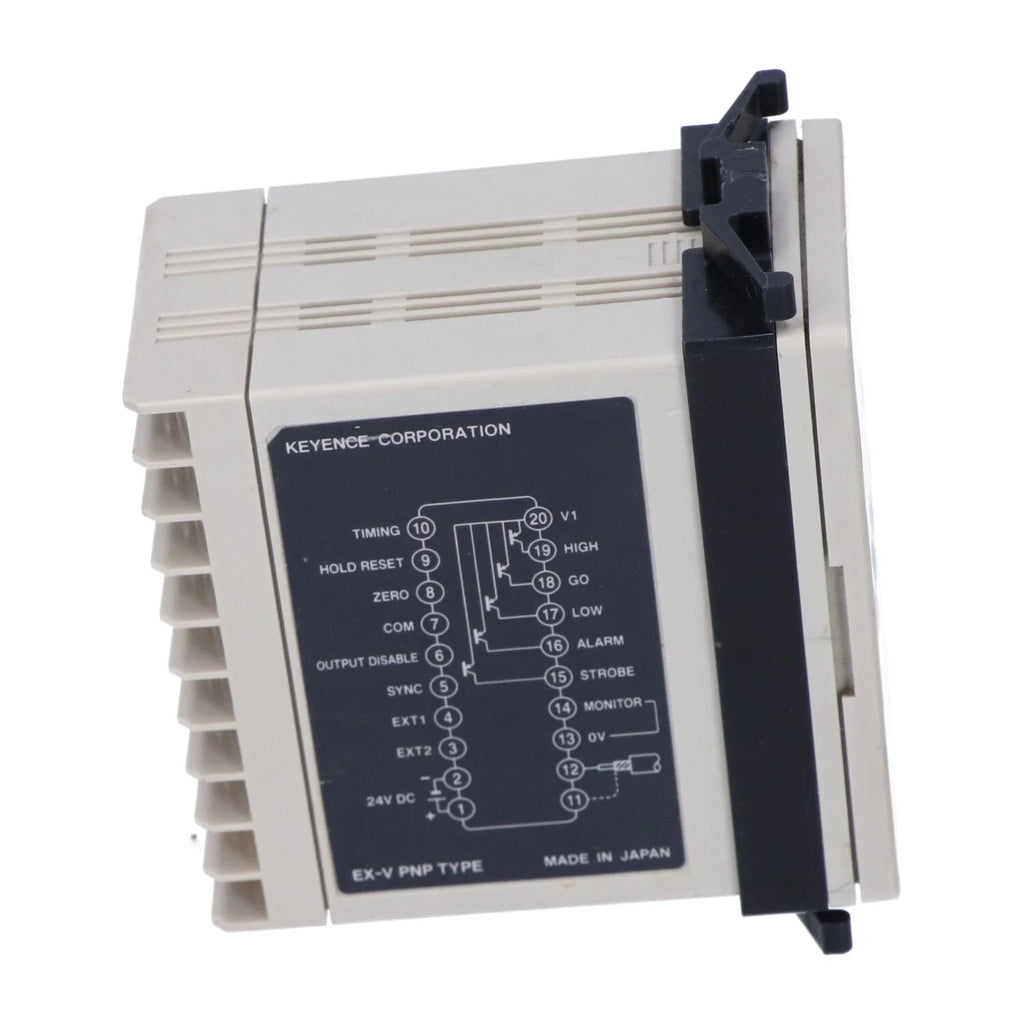

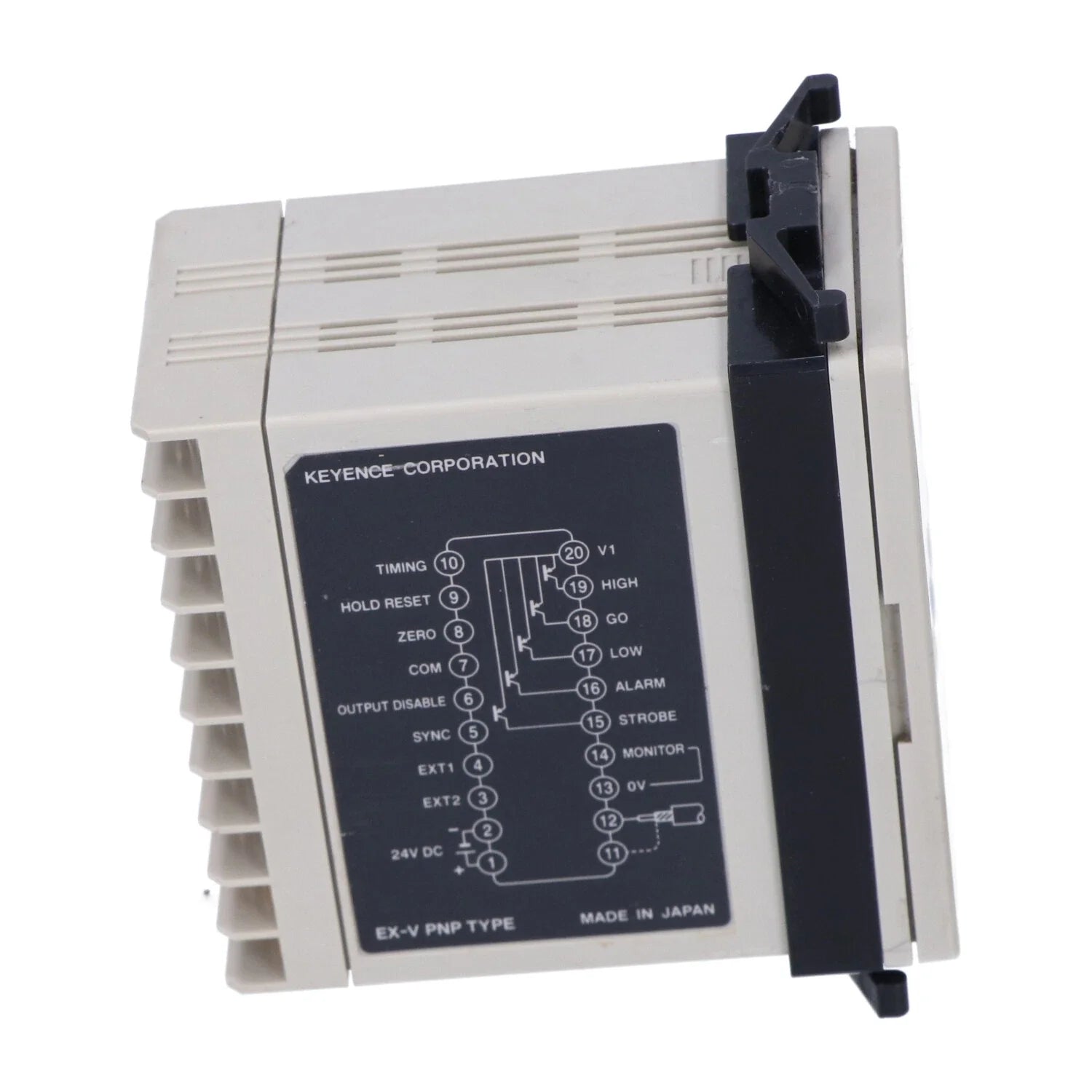

- Alarm and Strobe Outputs: Supports external signaling and synchronization
- Durable Construction: Designed for stable operation in industrial environments
The EX-V01P delivers the reliability and precision required for high-speed displacement measurement, quality inspection, and industrial automation systems.
