Description

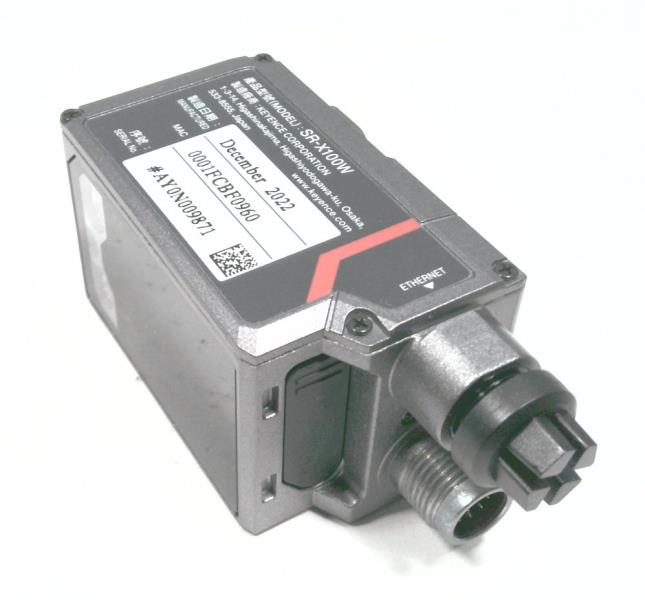

The Keyence SR-X100W Autofocus Code Reader (part number SR-X100W) is a wide-field, 1.4-megapixel industrial barcode scanner designed for accurate reading of 1D and 2D codes. Equipped with a CMOS image sensor and automatic focus adjustment, it delivers stable performance over a wide range of distances. Operating on 24 VDC, the SR-X100W ensures reliable decoding of complex, low-contrast, or high-speed codes in demanding automation environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Keyence |
| Category |
Bar Code Equipment |
| Part Number |
SR-X100W |
| Subcategory |
Bar Code Scanner Industrial |
| Type |
Wide-field Autofocus Type |
| Sensor |
CMOS Image Sensor |
| Resolution |
1360 × 1024 pixels (1.4 MP) |
| Focus |
Auto |
| Illumination Source |
High-intensity red LED |
| Pointer Light Source |
High-intensity green LED |
| Supported 2D Codes |
QR, MicroQR, DataMatrix, PDF417, GS1 Composite, DotCode, Aztec Code |
| Supported Barcodes |
CODE39, CODE128, ITF, 2of5, NW-7, GS1-128, EAN/UPC, Pharmacode |
| Minimum Resolution |
0.060 mm (2D), 0.082 mm (1D) |
| Reading Distance |
50 to 1000 mm |
| Field of View |
189 × 142 mm at 300 mm |
| Inputs |
2 bidirectional voltage inputs |
| Input Voltage Range |
15–30 VDC |
| Outputs |
3 Photo MOS relay outputs |
| Max Load Current |
50 mA per output (100 mA total) |
| Ethernet |
IEEE 802.3, 100BASE-TX |
| Supported Protocols |
TCP/IP, FTP, SFTP, HTTP, EtherNet/IP™, PROFINET™, OPC UA |
| Serial Communication |
RS-232C, 600–115200 bps |
| USB |
USB 2.0 High-Speed |
| Power Supply |
24 VDC ±25%/-20% |
| Current Consumption |
Approx. 650 mA |
| Enclosure Rating |
IP65/IP67 (IEC60529) |
| Operating Temperature |
0°C to +45°C (32°F to 113°F) |
| Storage Temperature |
-10°C to +50°C (14°F to 122°F) |
| Operating Humidity |
35–85% RH (no condensation) |
| Weight |
Approx. 180 g (6.35 oz) |
Information About SR-X100W
The SR-X100W is part of Keyence’s SR-X Series, an advanced family of AI-powered autofocus code readers optimized for precision in factory automation and logistics applications. With a high-resolution CMOS sensor (1360 × 1024 pixels) and intelligent LED illumination, it supports both 1D and 2D code formats such as QR, DataMatrix, PDF417, and GS1 codes. It integrates easily via Ethernet, USB, or RS-232C, and supports industrial protocols including EtherNet/IP™, PROFINET™, and OPC UA. Featuring an IP65/IP67-rated housing, this compact device delivers exceptional durability and performance under harsh operating conditions.
Key Features:
- High-Resolution Imaging: 1.4-megapixel CMOS sensor (1360 × 1024) for sharp, reliable code capture.
- Autofocus Function: Automatically adjusts focus for stable reading across varying distances.
- Wide Reading Range: Operates from 50 mm to 1000 mm (1.97" to 39.37") for flexible installation.
- Versatile Code Support: Decodes 1D and 2D symbologies including QR, DataMatrix, PDF417, and more.
- Wide Field of View: Covers 189 × 142 mm at a 300 mm distance, ideal for large surfaces or multiple codes.
- Industrial-Grade Build: IP65/IP67 protection ensures dustproof and waterproof performance.
- Multiple Connectivity Options: Ethernet (100BASE-TX), RS-232C, and USB 2.0 interfaces included.
- Advanced Communication Protocols: Supports TCP/IP, PROFINET™, EtherNet/IP™, FTP, and HTTPS.
- Low Power Consumption: Operates efficiently at 24 VDC with approx. 650 mA current draw.
- Compact Design: Lightweight 180 g body simplifies mounting in tight automation setups.
The SR-X100W delivers the precision and reliability required for traceability, product verification, and automated inspection in industrial applications.
