Description

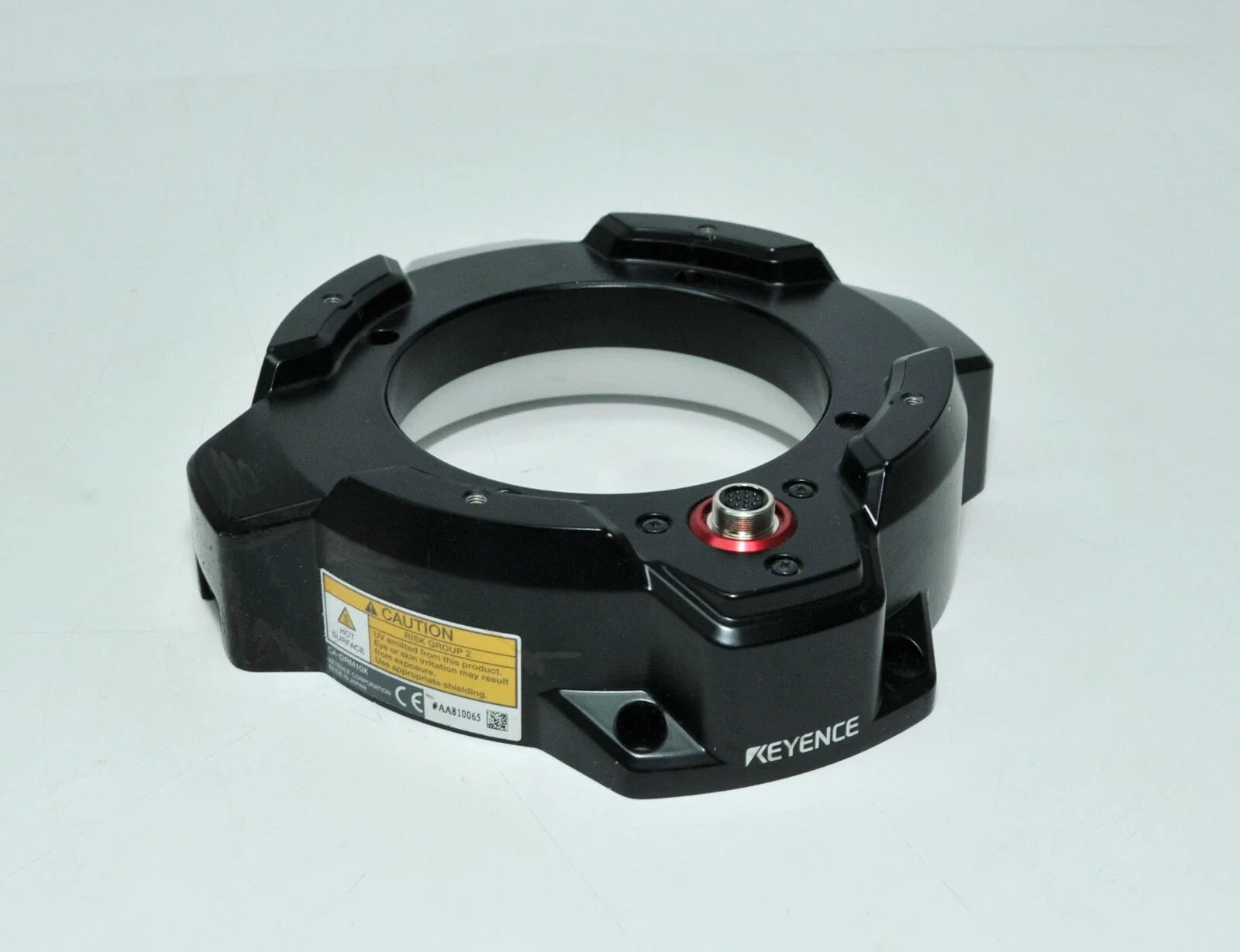

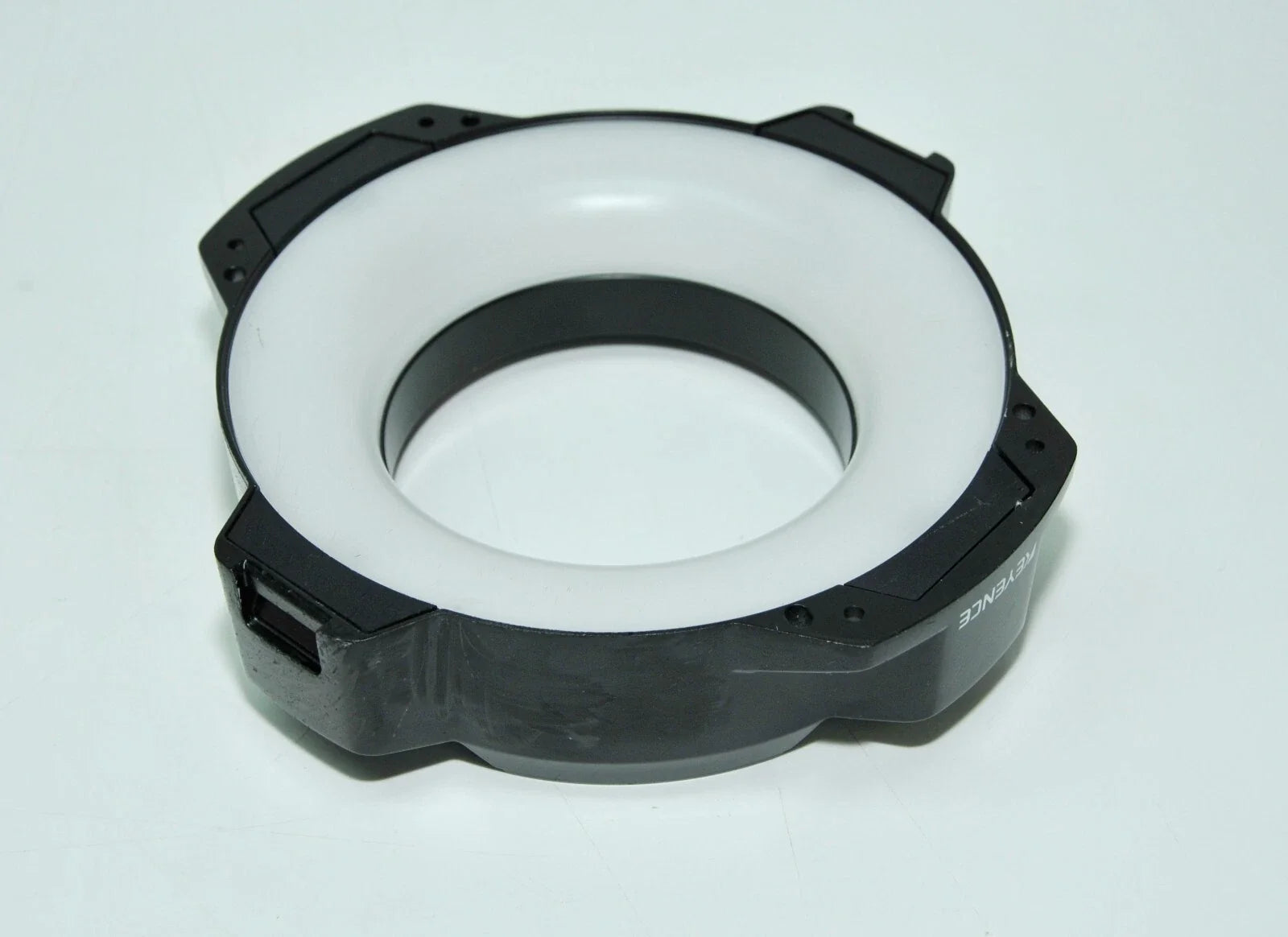

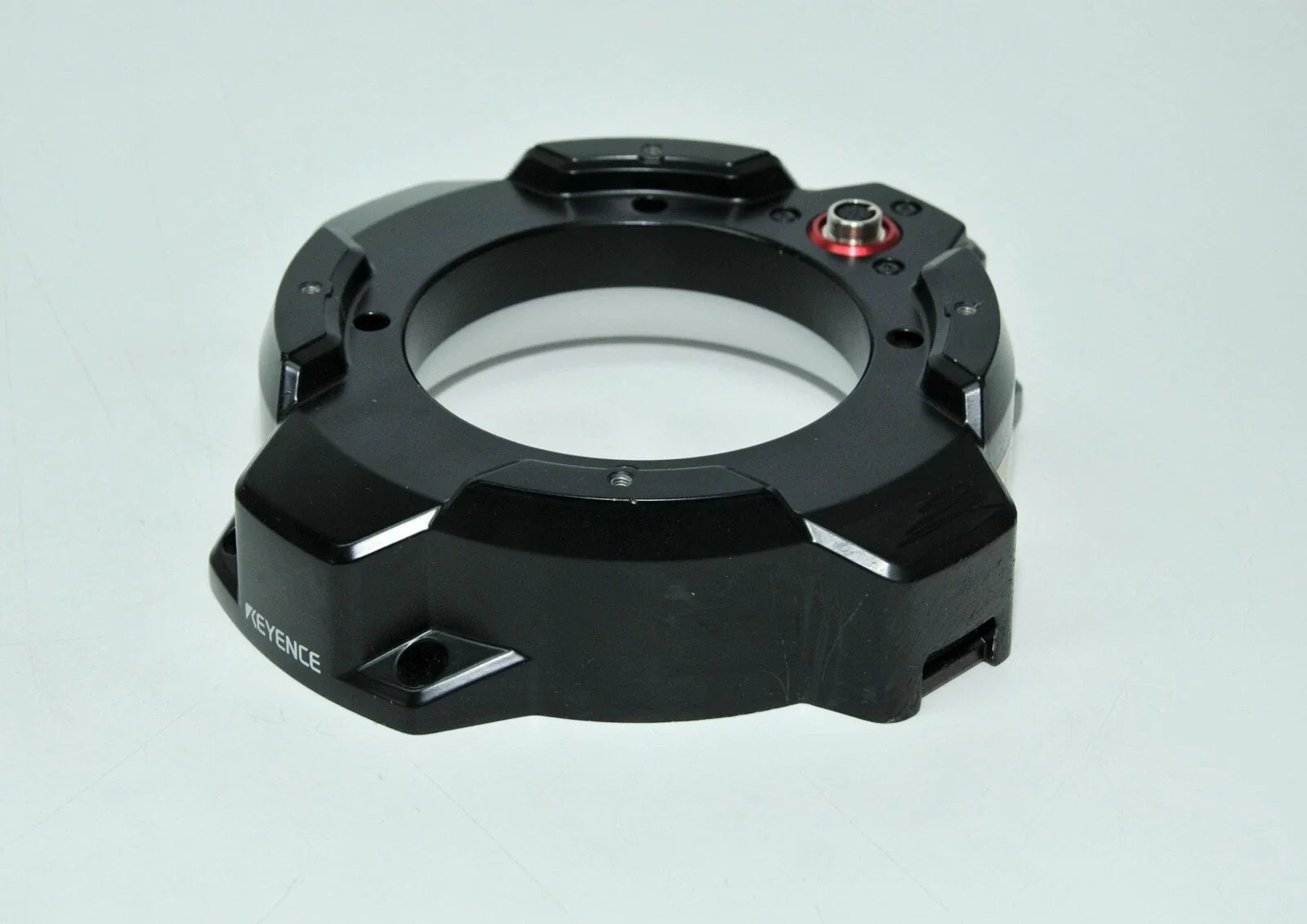

The Keyence CA-DRM10X is a multi-spectral lighting unit designed for advanced machine vision applications requiring precise illumination control. With a 100 mm ring configuration, the CA-DRM10X provides uniform, multi-directional lighting to enhance image clarity and inspection accuracy. This lighting system is optimized for high-speed industrial inspection and imaging processes.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Keyence |
| Category |
Machine Vision |
| Part Number |
CA-DRM10X |
| Subcategory |
Vision Lighting |
| Type |
Multi-Spectrum Ring Lighting |
| Lighting Diameter |
100 mm |
| Illumination Method |
Ring illumination / multi-spectrum lighting |
| Peak Wavelengths |
UV 405 nm, Blue 457 nm, Green 527 nm, Orange 600 nm, Red 660 nm, IR 730–860 nm |
| Response Time |
≤ 1 ms |
| Intensity Control |
1,024-step digital gradation |
| Controller Connection |
Dedicated cable (max. 30 m with extensions) |
| Input Connector |
12-pin dedicated connector |
| Power Consumption |
Approx. 71 W |
| Operating Temperature |
0°C to +40°C |
| Humidity Range |
≤ 65% RH (non-condensing) |
| Compatibility |
Keyence CA-DRM series controllers and attachments |
| Weight |
Approx. 600 g |
Information About CA-DRM10X
The CA-DRM10X is part of Keyence’s CA-DRM series, developed for multi-spectrum illumination in machine vision systems. It features ring illumination with support for dome and polarization attachments, enabling flexible lighting configurations for complex inspection tasks. The unit delivers multi-wavelength lighting, including UV, visible, and infrared spectra, allowing adaptation to various materials and surface conditions. Designed for integration with dedicated Keyence controllers, it provides precise intensity control and high-speed response for demanding automation environments.
Key Features:
- Multi-Spectral Illumination: Supports UV, visible, and infrared wavelengths for versatile inspection
- Ring Lighting Design: Provides uniform, shadow-free illumination from all directions
- 100 mm Size: Optimized for medium-area inspection coverage
- Wide Wavelength Range: Includes UV (405 nm) through infrared (860 nm) lighting options
- High-Speed Response: Operates with response time of 1 ms or less
- Advanced Intensity Control: Supports 1,024-step digital gradation for precise brightness adjustment
- Dome and Polarization Compatibility: Supports optional attachments for glare reduction and diffused lighting
- Stable Light Output: Constant current control ensures consistent illumination performance
- Dedicated Controller Interface: Designed for use with compatible Keyence lighting controllers
- Industrial Durability: Suitable for continuous operation in automated inspection systems
- Multi-Directional Lighting: Enables effective imaging of complex surfaces and geometries
The CA-DRM10X delivers the reliability and precision required for high-accuracy machine vision inspection and industrial imaging applications.
