Description

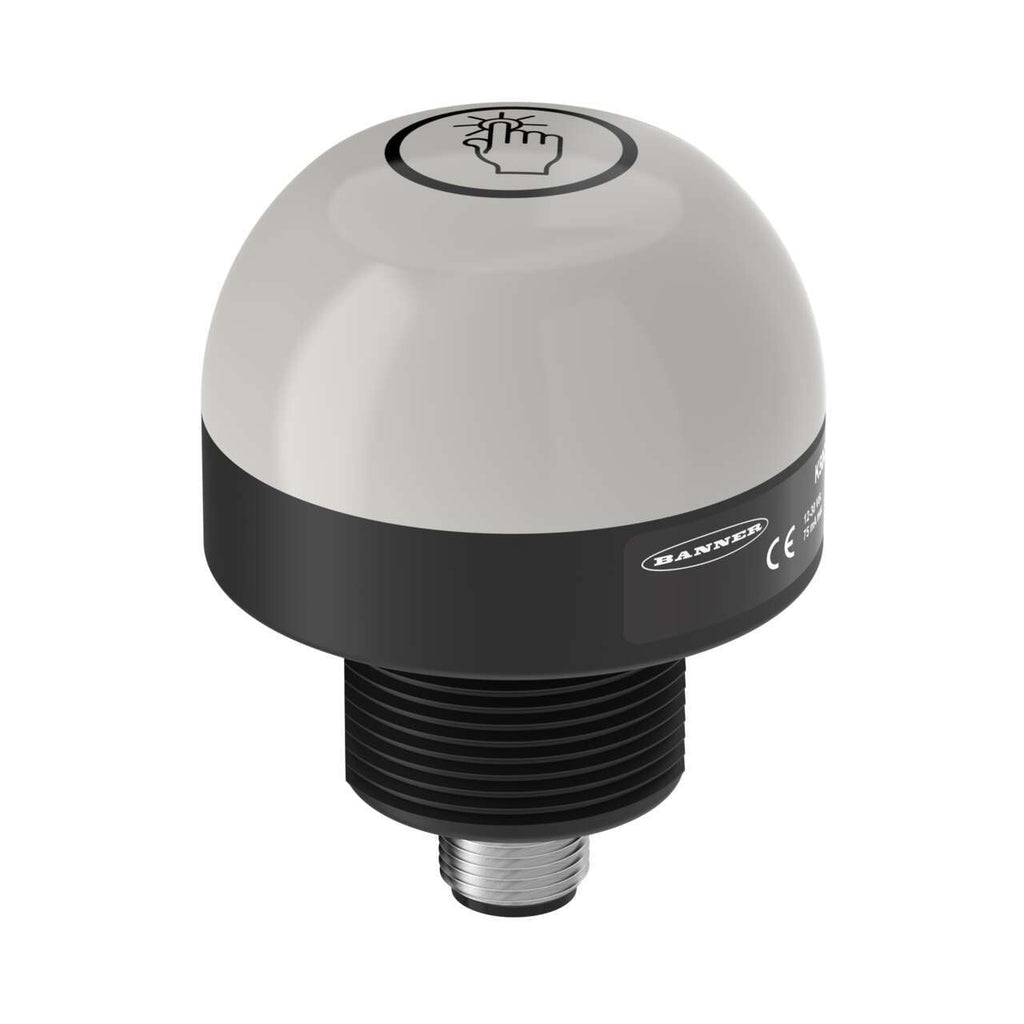

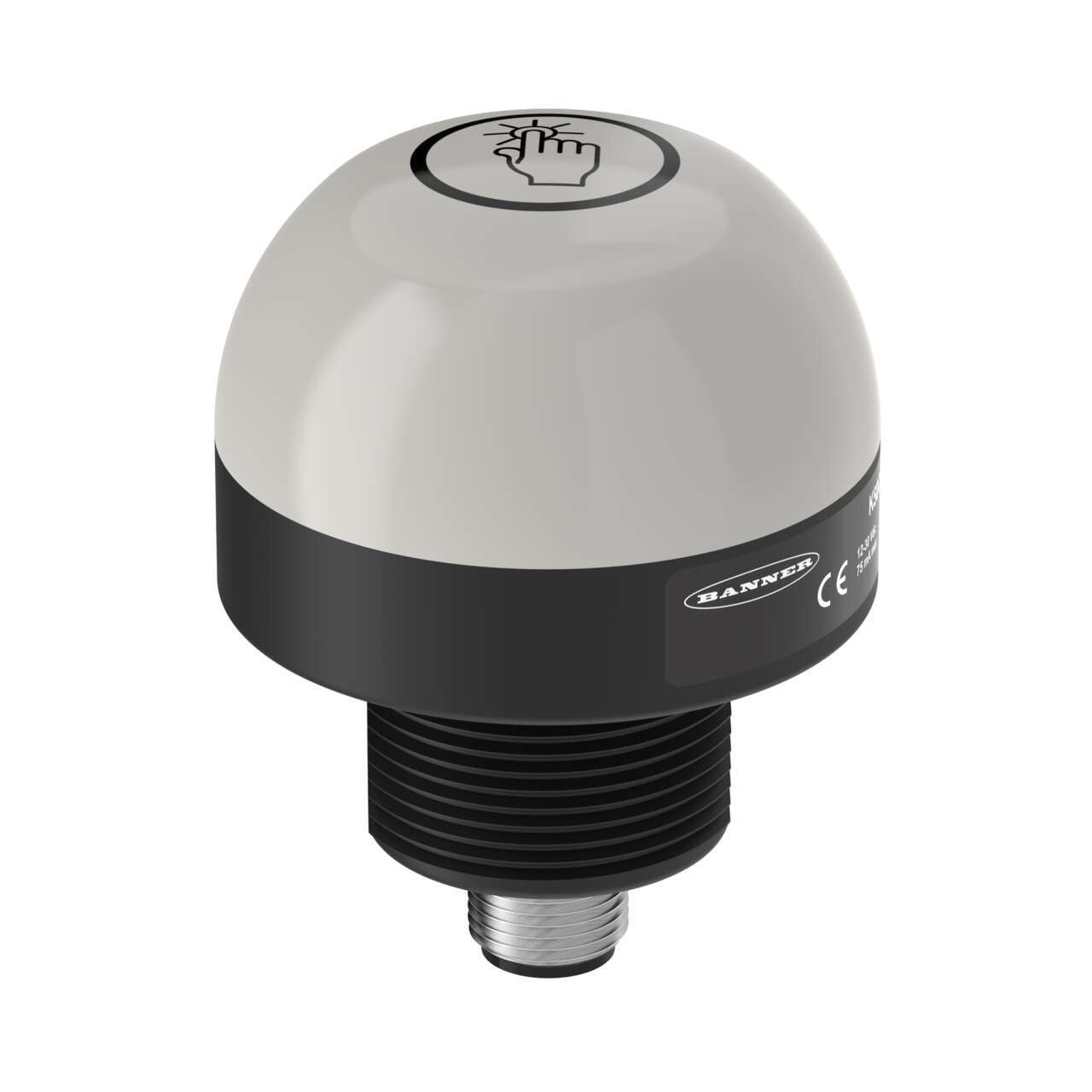

The Banner Engineering K50ALBT2GRHQ is a two-color capacitive touch sensor with latching output designed for industrial operator interface applications. It operates on a 12–30 VDC supply and provides bipolar NPN/PNP normally open outputs. The unit features green illumination when inactive and red illumination when activated.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Industrial Lighting |
| Part Number |
K50ALBT2GRHQ |
| Subcategory |
Pick to Light |
| Series |
K50 EZ-LIGHT Gen 2 |
| Device Type |
Capacitive Touch Sensor |
| Supply Voltage |
12–30 VDC |
| Output Type |
Bipolar (NPN & PNP), Normally Open |
| Operation Mode |
Latching |
| Number of Colors |
2 |
| Color 1 |
Green (525 nm) |
| Color 2 |
Red (625 nm) |
| Connection Type |
5-Pin M12 Integral QD |
| Mounting Thread |
M30 x 1.5 |
| Housing Material |
Polycarbonate |
| Environmental Rating |
IP67, IP69K |
| Operating Temperature |
-40°C to +50°C |
| Storage Temperature |
-40°C to +70°C |
| Diameter |
50 mm |
| Weight |
0.3 lb |
Information About K50ALBT2GRHQ
The K50ALBT2GRHQ is part of the Banner Engineering K50 EZ-LIGHT Series Gen 2 and is designed as a touch-activated illuminated button for pick-to-light and control systems. It uses capacitive sensing technology to detect operator input without mechanical actuation. The dome-style polycarbonate housing is rated IP67 and IP69K for washdown environments and mounts via an M30 x 1.5 threaded base. A 5-pin M12 integral quick-disconnect connector supports simplified installation and wiring.
Key Features:
-
Capacitive touch activation: Non-mechanical operator input.
-
Dual-color indication: Green (inactive), Red (activated).
-
Latching output: Maintains state until reset.
-
12–30 VDC supply: Compatible with industrial DC systems.
-
Bipolar output: NPN and PNP normally open configuration.
-
IP67/IP69K rated housing: Suitable for washdown environments.
-
M30 threaded mounting: Panel installation format.
The K50ALBT2GRHQ delivers the reliability and precision required for industrial touch-based operator interface and pick-to-light applications.
