Description

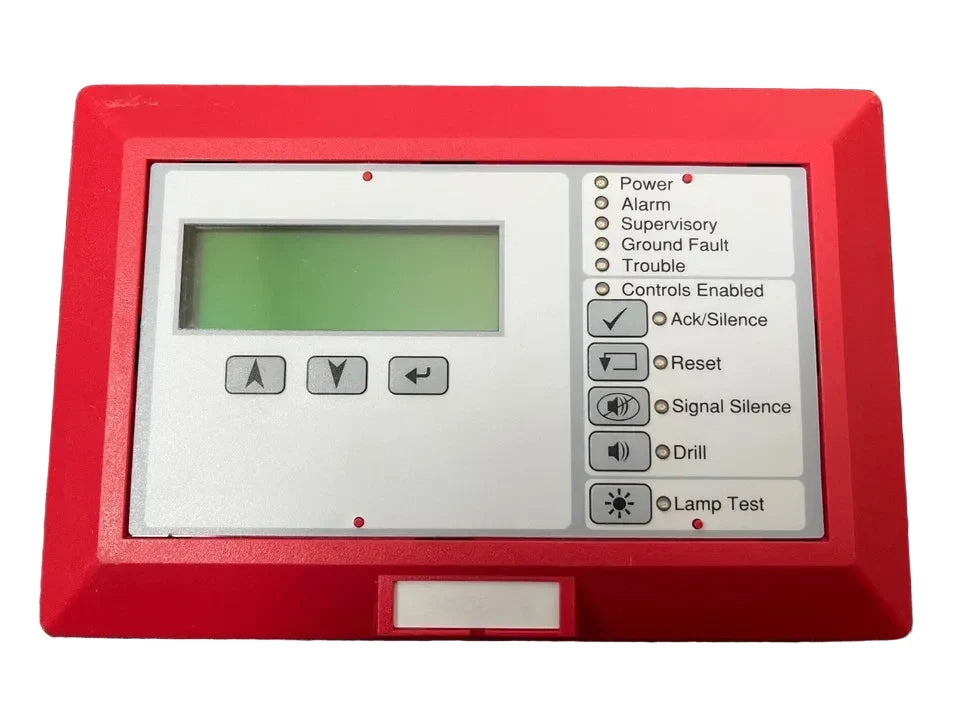

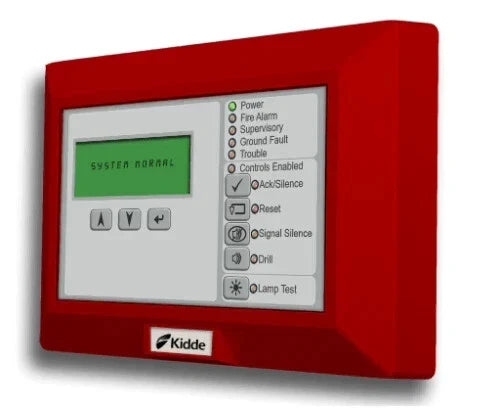

The Kidde K-RLCD-CR is an R-Series LCD remote annunciator featuring a 4 × 20 character backlit display for fire system status indication. It provides operators with clear, real-time text-based annunciation and optional common controls when connected to compatible Kidde fire alarm panels.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Kidde |
| Category |
Fire Safety |
| Part Number |
K-RLCD-CR |
| Subcategory |
Annunciator |
| Series |
R-Series |
| Display |
4 × 20 character backlit LCD |
| Indicators |
Standard status LEDs and internal buzzer |
| LED Annunciation |
16 pairs of LEDs (with LED model) |
| Expander |
24 pairs of LEDs per expander, max. 2 expanders |
| Controls |
Optional common controls |
| Keyswitch |
Available for enabling/disabling controls |
| Graphic Interface |
Supports 32 LEDs and 16 switches |
| Communication |
Class A or Class B RS-485 |
| Mounting |
4-inch square box or enclosure (1-, 2-, 3-position) |
| Color |
Red |
| Dimensions |
5.6" H × 0.6" W × 1.5" D |
| Operating Temperature |
32°F (0°C) to 120.2°F (49°C) |
| Input Voltage |
24 VDC |
| Country of Origin |
China |
| Weight |
1.0 lbs (approx.) |
Information About K-RLCD-CR

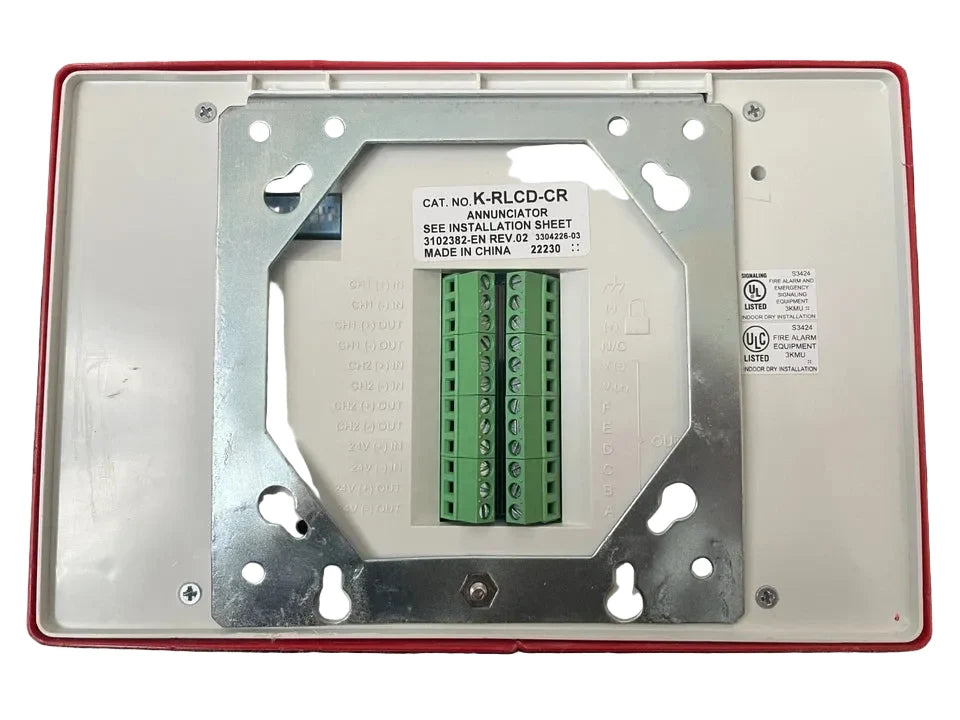

The K-RLCD-CR is part of the Kidde R-Series annunciator family, designed for integration with Kidde intelligent fire alarm control systems. It provides a user-friendly interface with text annunciation via a backlit LCD, complemented by standard status LEDs and an internal buzzer. The unit supports expander modules, enabling additional LED annunciation when required. It can be mounted on a standard 4-inch square electrical box or within available one-, two-, or three-position steel enclosures for secure installation.
Key Features:
- Backlit LCD Display: Large 4 × 20 character LCD ensures clear status messaging.
- LED Zone Annunciation Option: Supports LED models with 16 pairs of LEDs for simplified zone display.
- Expandable Capacity: Optional expander adds 24 pairs of LEDs for extended annunciation.
- Dual Expander Support: Up to two expanders can be connected per annunciator.
- Standard Indicators: Includes status LEDs and internal buzzer on all models.
- Common Controls: Available in select models for direct operator interaction.
- Keyswitch Security: Optional keyswitch enables or disables common controls.
- Mounting Flexibility: Fits a standard 4-inch electrical box or dedicated enclosures.
- Graphic Interface Support: Compatible with graphic annunciator interface cards supporting 32 LEDs and 16 switches.
- Wiring Standards: Operates with Class A or Class B RS-485 connections.
- No Programming Required: Simple addressing setup allows direct communication with panel.
The K-RLCD-CR delivers reliable annunciation and operator interface capability for Kidde intelligent fire alarm systems.
